Industrial Fanless MiniPC BAREBONE IBOX-D2550C
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-fanless-minipc-barebone-ibox-d2550c-produkt-87524.html

Industrial Fanless MiniPC BAREBONE IBOX-D2550C

Przemys³owy Fanless MiniPC IBOX-D2550C



Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

IBOX-D2550C is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

Description


Housing dimensions are 234 (W) x204 (L) x92.4 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel GMA3650 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space from 32GB SSD to 256GB SSD (from 320GB to 1TB HDD).

Przemys³owy Fanless MiniPC IBOX-D2550C


Communication & Connectors

Integrated card - two Intel 1000M Lan RTL8111E (optional WiFi module) allows connection to the network. The computer is equipped with: two LAN ports, six COM ports (RS232), one VGA output, one LPT port, six USB 2.0 ports, one way audio, one microphone input and connectors built into the motherboard: four USB 2.0 ports, two PowerOUT outputs, one audio output, one CPUFAN, one LVDS connector.

LVDS Interface
This is a fast digital interface that is used for many applications requiring: a high resistance to interference electromagnetic, low energy consumption at high data rates. LVDS is used in various applications and industries, including commercial and military applications.

Two independent network cards Intel RTL8111E
The computer can use two network cards for different purposes - it can be very practical - for example - when one card is responsible for the Internet connection, and the other keeps the connection of devices in the factory, warehouse, shop, supermarket and even in bank that should not have its own connection to the Internet.

Przemys³owy Fanless MiniPC IBOX-D2550C

1. Power ON/OFF
2. 2x USB 2.0

Przemys³owy Fanless MiniPC IBOX-D2550C

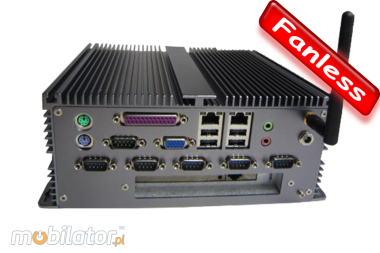

1. 2x PS/2   5. 4x Port USB 2.0
2. 6x COM(RS232)   6. 2x RJ-45
3. 1x LPT   7. Audio, Mic
4. 1x VGA

Przemys³owy fanless MiniPC IBOX-D2550C

Cooling

The industrial fanless MiniPC IBOX-D2550C uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… do góry   menu… menu

Application

      Industrial MiniPC Series IBOX-D2550C are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesPrzemys³owy Fanless MiniPC IBOX-D2550C of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Przemys³owy Fanless MiniPC IBOX-D2550C



Areas of use of industrial MiniPC

Digital Engine

Przemys³owy Fanless MiniPC IBOX-D2550C

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Przemys³owy fanless MiniPC IBOX-D2550C
Przemys³owy Fanless MiniPC IBOX-D2550C

Magazine

Industrial fanless MiniPC IBOX-D2550C by up to six COM ports (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless IBOX-D2550C can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 6V to 34V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Przemys³owy Fanless MiniPC IBOX-D2550C

Przemys³owy Fanless MiniPC IBOX-D2550C




Versions available


  D2550A D2550B   N2800 N2800A N2800B D525
Intel Atom N2800 - - - -
Intel Atom D2550  - - - -
Intel Atom D525 - - - - - -
LVDS - - - -
GPIO - - - - - -
LPT - -
1 x RJ-45 - - -
2 x RJ-45 - -   -
1 x COM(RS232) - - - - -
2 x COM(RS232) - - - - - -
6 x COM(RS232) - - -

go top… do góry   menu… menu

Specifications



    Dimension






   H: 92.4 mm

   L: 204 mm

   W: 234 mm
   Weight    2,4kg
   Processor    Intel Atom Dual Core D2550 (2x 1.86GHz)
   Chipset    Intel NM10 express chipset
   RAM Memory    no
   Graphic Card    Intel GMA3650
   Sound Card    Realtek ALC662
   WLAN    2x Intel RTL8111E 1000M Lan
   Connectors

   6x COM(RS232)

   1x wyj¶cie 12V DC_JACK

   2x PS/2

   6x USB2.0

   2x RJ-45

   1x wyj¶cie Audio

   1x Mic

   1x port LPT

   1x VGA
Przemys³owy Fanless MiniPC IBOX-D2550C


Others: Colour Black, Case
Chipset: Intel NM10
CPU Support: -----
Installed CPU: Intel Atom Dual Core D2550 (2x1.86GHz)
Memory Support: 2GB DDR3 (can up to 4GB)
Installed Memory: -----
Graphic Card: Intel GMA3650
Storage (HDD) Support: -----
Installed Storage (HDD): -----
CD/DVD Drive: -----
LAN: 2x Intel RTL8111E 1000M Lan
Wireless LAN card: -----
Bluetooth: -----
3G: -----
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0 ~ 255 sec
Front Panel (ports): 2x USB 2.0
Rear Panel (ports): 4x USB 2.0,
1x Audio,
2x RJ-45,
DC-in Jack,
1x Mic,
6x COM(RS232),
1x VGA,
1x LPT,
2x PS/2,
2x WiFi
Power: 12V
Supported OS: Microsoft Windows: XP/Vista/7 , Linux
Installed OS: -----
Dimensions: 234 x 204 x 65 mm
Weight: 2.4 kg
Expansion: WiFi
Fanless: Yes
Humidity: 0 ~ 95%
Temp: -10℃ ~ 60℃
IP Norm: -----
Storage temperature: -20 - 70 ℃


CURRENT PRICE
1152.76 € Net
1417.89€ Gross
