Industrial Fanless MiniPC - NUC mBOX - JW310 v.2
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-fanless-minipc--nuc-barebone-mbox--jw310-v.2-produkt-86485.html

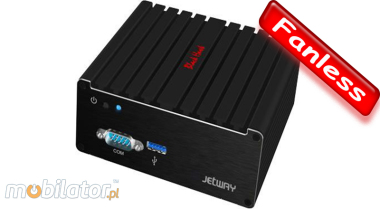

Industrial Fanless MiniPC - NUC mBOX - JW310 v.2

Przemys³owy Fanless MiniPC mBOX-JW310



Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

mBOX-JW310 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
go top… do góry   menu… menu

Description


Housing dimensions are 116 (W) x110 (L) x49 (H) mm or 116 (W) x110 (L) x65 (H) mm (With 2.5” HDD Module). Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 1.6 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3L memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space from 32GB SSD to 256GB SSD (from 320GB to 1TB HDD).

Przemys³owy Fanless MiniPC mBOX-JW310
go top… do góry   menu… menu


Communication & Connectors

Integrated card - Intel 1000M Lan RTL8111E and WiFi module allows connection to the network. The computer is equipped with: one LAN port, one COM port (RS232), two HDMI ports, two USB 2.0 ports, two USB 3.0 ports, one way audio.

Przemys³owy Fanless MiniPC mBOX-JW310

1. Power ON/OFF
 3. 1x USB 3.0
2. 1x COM(RS232)


Przemys³owy Fanless MiniPC mBOX-JW310

1. WiFi
   5. 1x RJ-45
2. Audio
   6. DC-IN 12V
3. 2x USB 2.0

4. 2x HDMI


Przemys³owy fanless MiniPC mBOX-JW310

Cooling

The industrial fanless MiniPC mBOX-JW310 v.2 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… do góry   menu… menu

Application

      Industrial MiniPC Series mBOX-JW310 v.2 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesPrzemys³owy Fanless MiniPC mBOX-JW310 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Przemys³owy Fanless MiniPC mBOX-JW310

Dual dispaly

Przemys³owy Fanless MiniPC mBOX-JW310



Areas of use of industrial MiniPC

Digital Engine

Przemys³owy Fanless MiniPC mBOX-JW310

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Przemys³owy fanless MiniPC mBOX-JW310
Przemys³owy Fanless MiniPC mBOX-JW310

Magazine

Industrial fanless MiniPC mBOX-JW310 v.2 by one COM port (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless mBOX-JW310 v.2 can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 6V to 34V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Przemys³owy Fanless MiniPC mBOX-JW310

Przemys³owy Fanless MiniPC mBOX-JW310



Versions available



 mBOX-JW310 v.1 mBOX-JW310 v.2 mBOX-JW310 v.3
Intel Celeron N2930
RAM: 2GB DDR3 -  -
RAM: 4GB DDR3
 -
Disc: 32GB mSata
 - -
Disc: 64GB mSata
 - -
Disc: 128GB mSata
 - -
1 x RJ-45
2x USB 2.0
1x USB 3.0
2x HDMI
1x COM(RS232)
WiFi

go top… do góry   menu… menu

Specifications


    Dimension



   H: 49 mm

   L: 110 mm

   W: 116 mm
   Weight    1,6 kg
   Processor
    Intel Celeron Quad Core N2930 (4x 1.83GHz)
   Chipset
    JNU91-2930
   RAM Memory
    4GB DDR3
   Graphic Card
    Intel HD Graphics
   Sound Card
    Realtek ALC662
   WLAN
    Intel RTL8111E 1000M Lan
   Connectors

   1x COM(RS232)

   1x wyj¶cie 12V DC_JACK

   2x USB2.0

   1x USB3.0

   1x RJ-45

   1x wyj¶cie Audio

   2x HDMI
Przemys³owy Fanless MiniPC mBOX-JW310


Others: Colour Black/Silver
Chipset: JNU91-2930
CPU Support: -----
Installed CPU: Intel Celeron Quad Core N2930 (4x1.83GHz)
Memory Support: 2GB DDR3L (can up to 4GB)
Installed Memory: 4GB DDR3L
Graphic Card: Intel HD Graphics
Storage (HDD) Support: -----
Installed Storage (HDD): 64 GB mSata
CD/DVD Drive: -----
LAN: Intel RTL8111E 1000M Lan
Wireless LAN card: Yes
Bluetooth: -----
3G: -----
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0 ~ 255 sec
Front Panel (ports): 1x USB 3.0,
1x COM(RS232)
Rear Panel (ports): 2x USB 2.0,
1x Audio,
1x RJ-45,
DC-in Jack,
2x HDMI,
1x WiFi
Power: 12V
Supported OS: Microsoft Windows: XP/Vista/7 , Linux
Installed OS: -----
Dimensions: 116 x 110 x 49 mm
Weight: 1.6 kg
Expansion: -----
Fanless: Yes
Humidity: 0 ~ 95%
Temp: 0 ~ 35℃
IP Norm: -----
Storage temperature: 0 ~ 60℃


CURRENT PRICE
1430.16 € Net
1759.10€ Gross
