Industrial Fanless MiniPC bBOX-AG1190 v.5
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-bezwentylatorowy-mini-komputer-bbox-ag1190-v.5-produkt-87118.html

Industrial Fanless MiniPC bBOX-AG1190 v.5

Indrustrial Fanless MiniPC bBOX-AG1190



Industrial Fanless MiniPC

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

bBOX-AG1190 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
go top… do góry   menu… menu

Description


Housing dimension are 200 (W) x200 (L) x40 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 1.5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB SSD or 500GB HDD.

Indrustrial Fanless MiniPC bBOX-AG1190
go top… do góry   menu… menu


Communication & Connectors

Integrated card - Intel RTL8111E-VL allow connection to the network. The computer is equipped with: one LAN port, one COM port (RS232), one HDMI port, one VGA outpu, four USB 2.0 ports, two USB 3.0 ports.

Indrustrial Fanless MiniPC bBOX-AG1190

1. Power ON/OFF
 2. 2x USB 2.0

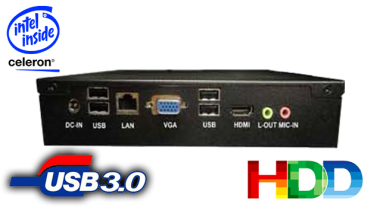

Indrustrial Fanless MiniPC bBOX-AG1190

1. DC-IN 9~19V
 5. 2x USB 2.0
2. 2x USB 3.0
 6. 1x HDMI
3. 1x RJ-45
 7. Audio/Mic
4. 1x VGA

Indrustrial Fanless MiniPC bBOX-AG1190

Cooling

The Indrustrial Fanless MiniPC bBOX-AG1190 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… do góry   menu… menu

Application

      Indrustrial Fanless MiniPC bBOX-AG1190 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of bBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesIndrustrial Fanless MiniPC bBOX-AG1190 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Indrustrial Fanless MiniPC bBOX-AG1190


Areas of use of industrial MiniPC

Digital Engine

Indrustrial Fanless MiniPC bBOX-AG1190

Trade

Small computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Indrustrial Fanless MiniPC bBOX-AG1190
Indrustrial Fanless MiniPC bBOX-AG1190

Magazine

Indrustrial Fanless MiniPC bBOX-AG1190 by one COM port (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC bBOX-AG1190 can be used on transport market, in cars, through adapting him to operate with a supply 9~19V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Indrustrial Fanless MiniPC bBOX-AG1190

Indrustrial Fanless MiniPC bBOX-AG1190



Indrustrial Fanless MiniPC bBOX-AG1190



Specifications


    Dimension



   H: 40 mm

   L: 200 mm

   W: 200 mm
   Weight    1.5 kg
   Processor
    Intel Celeron J1900 (4x 2GHz)
   Chipset
    Intel Chipset
   RAM Memory
    8GB DDR3
   Graphic Card
    Intel HD Graphics
   Sound Card
    Realtek Audio
   WLAN
    Intel RTL8111E-VL
   Connectors

   1x COM(RS232)

   1x wyjście 12V DC_JACK

   4x USB 2.0

   2x USB 3.0

   1x RJ-45

   1x wyjście Audio

   1x HDMI

   1x Mic

   1x VGA
Indrustrial Fanless MiniPC bBOX-AG1190


Others: Colour Silver, Case
Chipset: Intel Chipset
CPU Support: -----
Installed CPU: Intel Celeron J1900 (4x2GHz)
Memory Support: 2GB DDR3 (can up to 8GB)
Installed Memory: 8GB DDR3
Graphic Card: Intel HD Graphics
Storage (HDD) Support: -----
Installed Storage (HDD): 500GB HDD
CD/DVD Drive: -----
LAN: Intel RTL8111E-VL
Wireless LAN card: No
Bluetooth: -----
3G: No
4G LTE:
TV Tuner: -----
Watch Dog Timer: -----
Front Panel (ports): Power ON/OFF,
2x USB 2.0
Rear Panel (ports): 4x USB 2.0,
2x USB 3.0,
1x Audio,
1x RJ-45,
DC-in Jack,
1x HDMI,
1x Mic,
1x COM(RS232),
1x VGA
Power: 9~19V
Supported OS: Microsoft Windows: 7/8/8.1
Installed OS: -----
Dimensions: 200 x 200 x 40 mm
Weight: 1.0 kg
Expansion: -----
Fanless: Yes
Humidity: -----
Temp: 0 - 60 ℃
IP Norm: -----
Storage temperature: -40 - 85 ℃


CURRENT PRICE
1705.66 € Net
2097.96€ Gross
