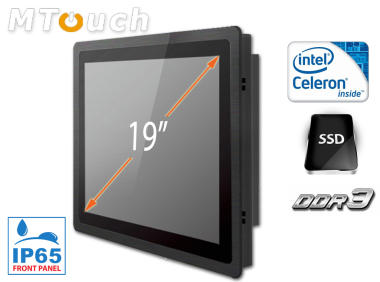

Operator Panel Industria with capacitive screen Fanless MobiBOX IP65 J1900 19 v.1.1
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/operatorski-panel-przemyslowy-z-ekranem-pojemnosciowym-fanless-mobibox-ip65-j1900-19-v.1.1-produkt-89492.html

Operator Panel Industria with capacitive screen Fanless MobiBOX IP65 J1900 19 v.1.1

MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 19 Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

Industrial Panel PC

Industrial Panel PC are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation.

Description


MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 19 Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

MTouch

Operator Panel Industria with capacitive screen Fanless MobiBOX IP65 J1900 19 v.1.1






MTouch

MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 19 Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

CPU: Intel® Celeron Procesor J1900 (2M Cache, 4 x 2.00 GHz


Memory: 2GB RAM


Disk: 64GB SSD


System: Windows 10 / Windows 8.1 / Windows 7 / Linux


Screen: 19" / 1024x1280 / 5:4 / Capacitive



Expansion cards:
none



Detailed specification of the configuration available in the "Technical data"


Using the latest technology Panel PC is designed for continuous multitasking operating with low power consumption (40 W). An important advantage is the effective combination of small size with considerable opportunities, through the use of Intel® Celeron processor family, Intel chipsets and DDR3 memory. Integrated Intel®HD Graphics video graphics card and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio). Disks offer free space from 32GB SSD to 512GB SSD (320GB to 1TB HDD option).

Dimensions:

Housing dimension are 451 (W) x 380 (L) x 59.2 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 19 Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

Cooling:

Operator Panel Industrial MobiBOX Fanless IP65 J1900 19  is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 19 Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

The computer Panel Industrial MobiBOX IP65 J1900 19 uses a proven method of cooling.This cooling takes place mainly by means of housing having a very large surface (longitudinal lamels, ribs) for heat dissipation - thanks such cooling - industrial Panel PC is faster and more efficiently cooled.

go top… do góry   menu… menu

Communication & Connections

Communication:

Operator Panel Industrial MobiBOX Fanless IP65 J1900 19 standard has a system of wireless Wi-Fi communication. Optionally in other models are available also modules such as 3G.

MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 19 Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

Connector:

Integrated Intel RTL811E Gigabit LAN 1xRJ-45, WIFI module allows you to connect the device to the network. The computer is equipped with: one LAN connector, two COM ports (RS232), one VGA, one HDMI output, four USB 2.0 ports, one audio out, one microphone input, and a power DC-in.

MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 19 Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

1. Antena WI-FI 5. 4 x USB 2.0
9.  COM (RS-232)
2. DC-IN 6. RJ-45 10. COM (RS-232)
3. VGA 7. Audio
4. HDMI 8. Mic

MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 19 Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

Screen

Operator Panel Industrial MobiBOX Fanless IP65 J1900 19 has a water-resistant front panel and scratch resistant LED screen. With 1024x1280 resolution and high brightness of 350 cd/m2, screen of "5 wire resistive" type with high sensitivity to touch, offers the user a clear picture and ease of use.

MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 19 Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron



Capacitive screen

Operation of this type of screen is a bit more complex than the resistive screens, but the comfort of their use is much higher. In the corners of the screen capacitive electrodes are placed emitting weak electric field. If you touch the display, the intensity produced before the field changes, and the system will calculate respectively, where the disturbance occurred.

MTouch Operatorski Panel Przemyslowy Fanless MobiBOX IP65 J1900 17 Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron
The image on the capacitive screen is clearly visible both indoors and outdoors. Particularly noteworthy here precise identification of the touch system, because this is a very high level, although many here depends on the materials used in the construction of the screen. The downside may be items that responds to a capacitive display as a list is very limited.

Using capacitive screens do not have to wrestle because it only requires a light touch of the screen with your finger to the unit responded appropriately.

Application

Operator Panel Industrial MobiBOX Fanless IP65 J1900 19 is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial aluminum IP65 housing protects the display from the outside against mechanical damage, drops of water, oil, sand and dust. Operator Panel Industrial MobiBOX Fanless IP65 J1900 19 is the best solution for extreme applications in dust or moisture.

MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 19 Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

 Operating Temp
-10-60 °C
 Operating Humidity 10%-80%
 Dust IP6x(dust)
 Water IPx5(drops of water)

Resistance IP65 (front panel)

The IP Code, International Protection Marking. IEC standard 60529, sometimes interpreted as Ingress Protection Marking, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC).

go top… do góry menu… menu

The first digit [x]
Protection against solid objects
  The second digits [y]
Protection against liquids
No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from object not greater than 12mm in diamete
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection against heavy seas, or powerful jets of water


7

Protection against immersion


8

Protection against complete, continuous submersion in water

MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 19 Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

Industrial Panel PCs with MTouch companies are based on the efficient two-core processors and high-quality components.

Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 19 Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

Areas of use of industrial panel computers.

MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 19 Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

Trade

Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register),  factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.

MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 19 Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron
MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 19 Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

Magazine

Industrial Panel PC through COM port (RS232) can be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas.  Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

 Transport & Automotive

Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 12V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 19 Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 19 Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

go top… do góry   menu… menu

Versions


            v.1
 v.1.1  v.2
 v.2.1 v.3 v..4 v.4.1 v.5
Intel Celeron panel pc Intel® Celeron™ J1900 Intel® Celeron™ J1900 Intel® Celeron™ J1900 Intel® Celeron™ J1900 Intel® Celeron™ J1900 Intel® Celeron™ J1900 Intel® Celeron™ J1900 Intel® Celeron™ J1900
Wi-Fi
3G
- - - - - -
2GB RAM
- - - - - -
 4GB RAM
- -

 64 GB SSD

- - -
128 GB SSD - - - - -
Touch resistive
- - -
Touch capaitive
- - - - -

go top… do góry   menu… menu

Specifications


   Display

   Screen: 19"

   Resolution: 1024 x 1280

   Type: Capacitive
   Resistance IP

   IP65 - front panel

   Communication

   Wi-FI

   3G (option)

   Dimensions





   Height:  380 mm

   Width: 59.2 mm

   Length: 451 mm

   Weight    5 kg
   Processor    Intel® Celeron™ Procesor J1900
   Chipset
   Intel NM10 high speed chipset
   Memory RAM
   2GB
   Graphics Card
   Intel® HD Graphics
   Sound Card
   Realtek ALC662
   Network Card
   Intel RTL811E gigabit network card
   Ports & interfaces

   2 x COM(RS232)

   4 x USB 2.0

   1 x HDMI

   1 x VGA

   1 x LAN RJ45

   1 x Audio

   1 x Mic

   1 x DC-in

MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 19 Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 19 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron


Screen size: 19"
Resolution: 1024 x 1280
Aspect ratio: 5:4
Touchscreen: Capacitive
Chipset: Intel NM10
CPU Support: Intel® Celeron™ J1900 (4 x 2.0 GHz)
Installed CPU: Intel® Celeron™ J1900 (4 x 2.0 GHz)
Memory Support: up to 8GB (max);
Installed Memory: 2 GB
Graphic Card: Intel HD Graphics
Audio: Realtek ALG662
Storage (HDD) Support: 32 - 512 GB SSD / 320 - 1TB HDD
Installed Storage (HDD): 64 GB SSD
CD/DVD Drive: -----
LAN: 1 x RTL811E gigabit network card
Wireless LAN card: Yes
Bluetooth: -----
3G: -----
4G LTE:
GPS: -----
TV Tuner: -----
Watch Dog Timer: -----
Ports - front panel: -----
Ports - rear panel: 2x COM(RS-232)
4x USB 2.0
1x HDMI
1x VGA
1xLAN
1x Audio
1x MIC
1x DC-in
Ports - left panel: -----
Ports - right panel: -----
Power: 12V DC-in
Supported OS: Microsoft Windows: 7/8.1/10; Linux
Installed OS: -----
Dimensions: 451 x 380 x 59.2 mm
Weight: 5 kg
Expansion: -----
Fanless: Yes
Humidity: 10%~ 80%
Temp: -10°C ~ 60°C
Storage Temp: -30°C ~ 60°C
IP Norm: -----
IP Level (back panel): -----
IP Level (front panel): IP65
Dual display: Yes
Response time touch-panel (ms): 5
Contrast Ratio: 1000:1
Brightness: 350 cd/m2
Viewing Angle: 70°-85°
Backlight MTBF: LED
Color Resolution: 16.7 M
Surface hardness (display): -----
Touch Life(contacts): more than 35 000 000 times
Housing material: Aluminum Alloy+High Strength Cold Rolled Steel
Mounting VESA: Yes
Folding Bracket (for office type working): -----
Power Consumption: 40 W
Others: Housing color: Black / Silver
Anti-vibration: -----
Anti-shock: -----
RFID scanner (reader): -----
Barcode reader: -----


CURRENT PRICE
3311.44 € Net
4073.07€ Gross
