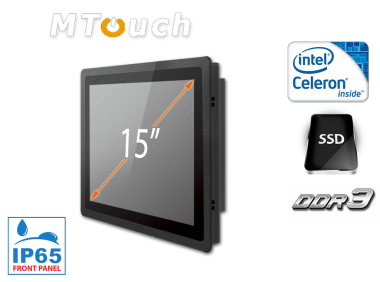

Industrial Panel PC
Industrial Panel PC are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. |
Description
Using the latest technology Panel PC is designed for continuous multitasking operating with low power consumption (40 W). An important advantage is the effective combination of small size with considerable opportunities, through the use of Intel® Celeron processor family, Intel chipsets and DDR3 memory. Integrated Intel®HD Graphics video graphics card and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio). Disks offer free space from 32GB SSD to 512GB SSD (320GB to 1TB HDD option).
Dimensions:
Housing dimension are 380 (W) x 300 (L) x 57 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Cooling: Operator Panel Industrial MobiBOX IP65 J1900 15 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.  |
||||||||||||||||||
Communication & Connections |
|
Communication:
Operator Panel Industrial MobiBOX IP65 J1900 15 standard has a system of wireless Wi-Fi communication. Optionally in other models are available also modules such as 3G.
Connector:
Integrated Intel RTL811E Gigabit LAN 1xRJ-45, WIFI module allows you to connect the device to the network. The computer is equipped with: one LAN connector, two COM ports (RS232), one VGA, one HDMI output, four USB 2.0 ports, one audio out, one microphone input, and a power DC-in.
|
|
 |
| Screen size: | 15" |
| Resolution: | 1024 x 768 |
| Aspect ratio: | 4:3 |
| Touchscreen: | Capacitive Resistive Type 5-Wire (option) |
| Chipset: | Intel NM10 |
| CPU Support: | Intel® Celeron™ J1900 (4 x 2.0 GHz) |
| Installed CPU: | Intel® Celeron™ J1900 (4 x 2.0 GHz) |
| Memory Support: | up to 8GB (max); |
| Installed Memory: | 4 GB |
| Graphic Card: | Intel HD Graphics |
| Audio: | Realtek ALG662 |
| Storage (HDD) Support: | 32 - 512 GB SSD / 320 - 1TB HDD |
| Installed Storage (HDD): | 128 GB SSD |
| CD/DVD Drive: | ----- |
| LAN: | 1 x RTL811E gigabit network card |
| Wireless LAN card: | Yes |
| Bluetooth: | ----- |
| 3G: | ----- |
| 4G LTE: | |
| GPS: | ----- |
| TV Tuner: | ----- |
| Watch Dog Timer: | ----- |
| Ports - front panel: | ----- |
| Ports - rear panel: | 2x COM(RS-232) 4x USB 2.0 1x HDMI 1x VGA 1xLAN 1x Audio 1x MIC 1x DC-in |
| Ports - left panel: | ----- |
| Ports - right panel: | ----- |
| Power: | 12V DC-in |
| Supported OS: | Microsoft Windows: 7/8.1/10; Linux |
| Installed OS: | ----- |
| Dimensions: | 380 x 300 x 57 mm |
| Weight: | 4 kg |
| Expansion: | ----- |
| Fanless: | Yes |
| Humidity: | 10%~ 80% |
| Temp: | -10°C ~ 60°C |
| Storage Temp: | -30°C ~ 60°C |
| IP Norm: | ----- |
| IP Level (back panel): | ----- |
| IP Level (front panel): | IP65 |
| Dual display: | Yes |
| Response time touch-panel (ms): | 5 |
| Contrast Ratio: | 1000:1 |
| Brightness: | 350 cd/m2 |
| Viewing Angle: | 70°-85° |
| Backlight MTBF: | LED |
| Color Resolution: | 16.7 M |
| Surface hardness (display): | ----- |
| Touch Life(contacts): | more than 35 000 000 times |
| Housing material: | Aluminum Alloy+High Strength Cold Rolled Steel |
| Mounting VESA: | Yes |
| Folding Bracket (for office type working): | ----- |
| Power Consumption: | 40 W |
| Others: | Housing color: Black / Silver |
| Anti-vibration: | ----- |
| Anti-shock: | ----- |
| RFID scanner (reader): | ----- |
| Barcode reader: | ----- |
CURRENT PRICE |
|
| 3069.76 € | Net |
| 3775.80€ | Gross |
