Description

MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 12.1 Komputer panelowy Panel PC Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 12.1 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

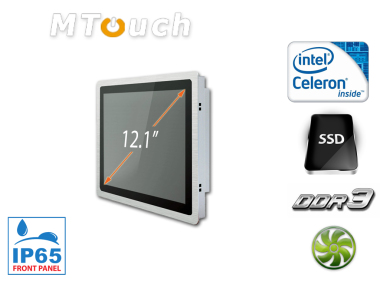

MTouch	Operator Panel Industrial MobiBOX IP65 1037U 12.1 v.2
		CPU: Intel® Celeron™ Procesor 1037U (2M Cache, 2 x 1.80 GHz
		Memory: 4GB RAM
		Disk: 64GB SSD
		System: Windows 10 / Windows 8.1 / Windows 7 / Linux
		Screen: 12.1" / 1024x768 / 4:3 / 5 - Wire Resistive
		Expansion cards: none
		Detailed specification of the configuration available in the "Technical data"

Using the latest technology Panel PC is designed for continuous multitasking operating with low power consumption (40 W). An important advantage is the effective combination of small size with considerable opportunities, through the use of Intel® Celeron processor family, Intel chipsets and DDR3 memory. Integrated Intel®HD Graphics video graphics card and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio). Disks offer free space from 32GB SSD to 512GB SSD (320GB to 1TB HDD option).

Dimensions:

Housing dimension are 319 (W) x 257 (L) x 50 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 3,5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Cooling:

Operator Panel Industrial MobiBOX IP65 1037U 12.1 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

The computer Panel Industrial MobiBOX IP65 1037U 12.1 uses a proven method of cooling. It takes place mainly through the fan mounted inside the enclosure. Making industrial Panel PC is faster and more efficiently cooled.

go top… menu…

Communication & Connections

Communication:

Operator Panel Industrial MobiBOX IP65 1037U 12.1 standard has a system of wireless Wi-Fi communication. Optionally in other models are available also modules such as 3G.

Connector:

Integrated Intel RTL811E Gigabit LAN 1xRJ-45, WIFI module allows you to connect the device to the network. The computer is equipped with: one LAN connector, one COM ports (RS232), one VGA, one HDMI output, four USB 2.0 ports, one audio out, one microphone input, and a power DC-in.

1. Antena WI-FI	5. 4 x USB 2.0	9. COM (RS-232)
2. DC-IN	6. RJ-45
3. VGA	7. Audio
4. HDMI	8. Mic

go top…

menu…

Screen

Operator Panel Industrial MobiBOX IP65 1037U 12.1 has a water-resistant front panel and scratch resistant LED screen. With 1024x768 resolution and high brightness of 350 cd/m2, screen of "5 wire resistive" type with high sensitivity to touch, offers the user a clear picture and ease of use.

Resistive screen

A resistive touchscreen comprises of several layers, out of which the flexible plastic and glass layers are two important electrically resistive layers. The front surface of resistive touchscreen panel is a scratch-resistant plastic with coating of a conductive material (mostly Indium Tin Oxide, ITO), printed underside. The second important layer is either made of glass or hard plastic and is also coated with ITO. Both the layers face each other and are separated with a thin gap in between. An electrical resistance is created between both the layers in such a way that charge runs from top to bottom in one layer and side-to-side in another. When a finger or stylus tip presses down on the outer surface, both the ITO films meet. It is the measure of the resistance of both the layers at point of contact, which leads to get an accurate measurement of the touch position. The accuracy also relies on the evenness of the coating of ITO on both the layers.

MTouch Operatorski Panel Przemyslowy MobiBOX IP65 1037U 12.1 Komputer panelowy Panel PC Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 12.1 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron
Resistive screen ensures good visibility, which falls quite firmly in the sun. This type of screen as opposed to a capacitive screen, allows you to use handwriting (stylus comes in handy here).

5-WIRE RESISTIVE SCREENS

The 5-wire Resistive Touch Screen is the preferred solution for applications requiring durability and reliability. Similar to the 4-wire technology, the 5-wire touch screen also consists of a conductive glass bottom layer and conductive top film layer. The fundamental difference between the two is, in the 5-wire construction, all the electrodes are on the bottom layer and the top layer acts as a voltage-measuring probe. With this structure, the touch screen may still work properly even when the top layer is slightly scratched or damaged. The result is an accurate, durable and reliable touch screen that offers a higher touch life.

Resistive screens are very durable and can be used in a variety of environments. This type of screen is recommended for demanding point-of-sale systems, restaurant systems, industrial controls, and other workplace applications.

go top… menu…

Application

Operator Panel Industrial MobiBOX IP65 1037U 12.1 is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial aluminum IP65 housing protects the display from the outside against mechanical damage, drops of water, oil, sand and dust. Operator Panel Industrial MobiBOX IP65 1037U 12.1 is the best solution for extreme applications in dust or moisture.

Operating Temp	-10-60 °C
Operating Humidity	10%-80%
Dust	IP6x(dust)
Water	IPx5(drops of water)

Resistance IP65 (front panel)

The IP Code, International Protection Marking. IEC standard 60529, sometimes interpreted as Ingress Protection Marking, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC).

go top… menu…

The first digit [x]
Protection against solid objects

The second digits [y]
Protection against liquids

No special protection

No waterproofing

Protection from solid objects greater than 50mm in diameter

Protection from dripping water

Protection from object not greater than 12mm in diamete

Protection from vertically dripping water (tilted up to 15°)

Protection from object not greater than 2,5mm in diameter

Protection from sprayed water (tilted up to 60°)

Protection from object not greater than 1mm in diameter

Protection from splashed water

Complete protection against contact, Protection against dust deposit

Protection from water projected from a nozzle

Complete protectionm against contact, Protection from infiltration of dust

Protection against heavy seas, or powerful jets of water

Protection against immersion

Protection against complete, continuous submersion in water

Industrial Panel PCs with MTouch companies are based on the efficient two-core processors and high-quality components.

Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Areas of use of industrial panel computers.

Trade

Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register), factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.

Magazine

Industrial Panel PC through COM port (RS232) can be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport & Automotive

Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 12V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

go top… menu…

Versions

	v.1	v.1.1	v.2	v.2.1	v.3	v.4	v.5	v.5.1
	Intel® Celeron™ 1037U	Intel® Celeron™ 1037U	Intel® Celeron™ 1037U	Intel® Celeron™ 1037U	Intel® Celeron™ 1037U	Intel® Celeron™ 1037U	Intel® Celeron™ 1037U	Intel® Celeron™ 1037U
Wi-Fi
3G	-	-	-	-		-
2GB RAM			-	-	-	-	-
4GB RAM	-	-
32 GB SSD			-	-	-	-	-
64 GB SSD	-	-				-	-
128 GB SSD	-	-	-	-	-
Touch resistive		-		-
Touch capacitive	-		-		-	-	-

go top… menu…

Specifications

Display	Screen: 12.1" Resolution: 1024 x 768 Type: 5 - Wire Resistive
Resistance IP	IP65 - front panel
Communication	Wi-FI 3G (option)
Dimensions	Height: 257 mm Width: 50 mm Length: 319 mm
Weight	3,5 kg
Processor	Intel® Celeron™ Procesor 1037U
Chipset	Intel NM10 high speed chipset
Memory RAM	4GB
Graphics Card	Intel® HD Graphics
Sound Card	Realtek ALC662
Network Card	Intel RTL811E gigabit network card
Ports & interfaces	2 x COM(RS232) 4 x USB 2.0 1 x HDMI 1 x VGA 1 x LAN RJ45 1 x Audio 1 x Mic 1 x DC-in

Screen size:	12.1"
Resolution:	1024 x 768
Aspect ratio:	4:3
Touchscreen:	Resistive Type 5-Wire Capacitive (option)
Chipset:	Intel NM10
CPU Support:	Intel Celeron 1037U (2 x 1.80GHz)
Installed CPU:	Intel Celeron 1037U (2 x 1.80GHz)
Memory Support:	up to 8GB (max);
Installed Memory:	4 GB
Graphic Card:	Intel HD Graphics
Audio:	Realtek ALG662
Storage (HDD) Support:	32 - 512 GB SSD / 320 - 1TB HDD
Installed Storage (HDD):	64 GB SSD
CD/DVD Drive:	-----
LAN:	1 x RTL811E gigabit network card
Wireless LAN card:	Yes
Bluetooth:	-----
3G:	-----
4G LTE:
GPS:	-----
TV Tuner:	-----
Watch Dog Timer:	-----
Ports - front panel:	-----
Ports - rear panel:	1x COM(RS-232) 4x USB 2.0 1x HDMI 1x VGA 1xLAN 1x Audio 1x MIC 1x DC-in
Ports - left panel:	-----
Ports - right panel:	-----
Power:	12V DC-in
Supported OS:	Microsoft Windows: 7/8.1/10; Linux
Installed OS:	-----
Dimensions:	319 x 257 x 48 mm
Weight:	3.51 kg
Expansion:	-----
Fanless:	No
Humidity:	10%~ 80%
Temp:	-10°C ~ 60°C
Storage Temp:	-30°C ~ 60°C
IP Norm:	-----
IP Level (back panel):	-----
IP Level (front panel):	IP65
Dual display:	Yes
Response time touch-panel (ms):	5
Contrast Ratio:	800:1
Brightness:	350 cd/m2
Viewing Angle:	70°-85°
Backlight MTBF:	LED
Color Resolution:	16.7 M
Surface hardness (display):	-----
Touch Life(contacts):	more than 35 000 000 times
Housing material:	Aluminum Alloy+High Strength Cold Rolled Steel
Mounting VESA:	Yes
Folding Bracket (for office type working):	-----
Power Consumption:	40 W
Others:	Housing color: Black / Silver
Anti-vibration:	-----
Anti-shock:	-----
RFID scanner (reader):	-----
Barcode reader:	-----

CURRENT PRICE
2330.32 €	Net
2866.29€	Gross
