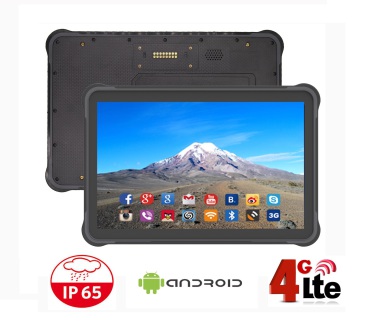

MobiPad TSS1011 is a modern, waterproof industrial tablet designed for extreme applications. It has a specially designed, reinforced construction that meets the requirements of IP65, which confirms the protection of the device against dust and water.

Specification



MobiPad TSS1011
Processor	MediaTek MT6735 (4x1.5GHz)
Graphics	—
Operating system	Android 7.0
RAM	3GB DDR3
ROM	32GB EMMC
Display	10", 1920x 1200
Touch screen	Capacitive
Battery	3.8V/10500mAh
Camera	5Mpx Front | 13Mpx Rear + Flash
Protection	IP65 | 1.2m. drops
Communication	3G/4G | Bluetooth | NFC | Wi-Fi | GPS
Connectors	Micro USB | USB | Audio Jack | RJ45 | RS232
Memory card	Micro SD (max. 64GB)
SIM card	Micro SIM
2D Scanner*	—

* Optional equipment, available on specific versions only.

Dustproof industrial tablet MobiPad TSS1011 was equipped with high performance, energy-efficient MediaTek MT6735 (4x1.5GHz) processor. Inside, there are four cores that allow for more efficient processing of multiple tasks simultaneously. Shared caching, which uses a multi-level hierarchy, is dynamically allocated to each processor core according to the load. This reduces the average access time to main memory. Enhanced graphics card technology lets you enjoy full HD video and movies. Low power consumption guarantees long battery life.









MobiPad TSS1011 industrial tablet is designed for resistance and convenience. The sleek and rugged 18mm thick design and stylish case will make the tablet very well suited for industrial use and more. The unique size has been carefully thought out to make the device more comfortable and ergonomic. The non-slip casing makes it safe and secure to hold it in your hand, and the rubber corners further protect your device against possible damage as a result of falls.

Dimensions	275mm x 178mm x 18mm
Net weight	1000g









With the capacitive screen, the reaction of the device is not to directly press the screen, but to change the electrostatic field at the point where the device is touched. This allows for much more precise handling and gentle brushes on the screen. In addition, we can use multitouch technology, the ability to control our tablet or the collector with a few fingers at once.

REsistance











The IP standard defines the degree of protection provided by the enclosure of an electrical device against such factors as: access to dangerous parts inside the enclosure, penetration of foreign matter, splashing or immersion.



IP6X	No ingress of dust, complete protection against contact. A vacuum must be applied. Test duration of up to 8 hours based on air flow.
IPX5	Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.





The MIL-STD-810 is a strict military standard used in the United States Army. It determines the immunity of the equipment to severe environmental and weather conditions such as extreme low and high temperatures, temperature changes, rain or dust, as well as various accidents (shocks, floods, high altitude falls, etc.). Although the MIL-STD-810 is mainly used for military equipment, it is often used by private companies that produce equipment that requires unmatched durability.





Specially designed construction gives the machine a chance of accidental falls from up to 1.2 meters in operating mode, even on hard surfaces.





MobiPad TSS1011 is suitable for continuous operation in both low and high temperatures in the range of -20 ° C to 60 ° C. When the device is off, it can handle temperatures ranging from -25 ° C to 80 ° C. In addition, the rugged industrial tablet performs well in rooms with increased humidity, ensuring proper operation even with 90% relative humidity.



Working Temp.	-20°C to 60°C
Storage Temp.	-25°C do 80°C
Humidity	0% do 90%







wireless communication





Waterproof tablet MobiPad TSS1011 is equipped with a professional GPS module with GLONASS support, combining low power consumption with high accuracy. Navigation is fast and smooth, allowing you to easily and easily reach any destination.







Bluetooth enables wireless short-range communication between various electronic devices, such as the keyboard, computer, laptop, palmtop, mobile phone and many others. In the fourth version of this standard, energy consumption was reduced considerably, at the expense of lower transfer costs, and real operating coverage increased.







Dual-band Wi-Fi provides fast network access wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a work or residence router and a wireless network that can be used at no extra cost. The shock-resistant industrial tablet, the Emode I18H, is equipped with the latest 802.11n technology, which allows file transfer speeds up to 150 Mb/s.

Standards	802.11(a/b/g/n)
Frequencies	2.4GHz/5.8GHz (Dual-Band)

Application

Thanks to their size and light weight, tablet and smartphone data collectors are a useful tool for sales representatives. Today's applications running under the collector system enable even entering the data collector's contractor database, which allows us to later search for it quickly by name or NIP number. We can do the same with our commodity base, which can work in parallel with the database of contractors. Additional use of collectors in the trade, such as sending orders or invoices directly to the company through the GSM network or Wi-Fi.









Industrial tablets and data collectors are characterized by high resistance to adverse working conditions. Tightness, dust and water resistance of enclosures, certified by IP (dust and water resistance standards) and often MIL-STD military standard, can withstand even the harshest conditions in industrial infrastructure or on the construction site. With appropriate applications, collectors can be used for control and control of various industrial processes, as well as for data collection and analysis.









An industrial data sheet is the ideal solution for quick stocktaking. In addition, depending on the software used, it streamlines the process of entering and delivering goods into the warehouse, enables price control and dispensing, helps to collect and order orders, and identifies customers and servicing the rental. The advantages of using data collectors are undoubtedly: time savings, customer satisfaction thanks to the correct price and speed of operation.
