Notebook - Clevo W230ST v.0.3
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/notebook--clevo-w230st-v.0.3-produkt-85955.html

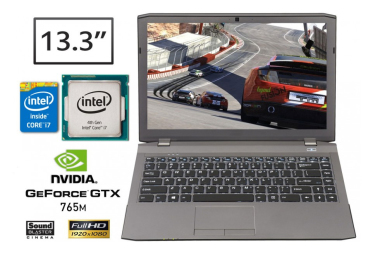

Notebook - Clevo W230ST v.0.3

clevo w230st full hd nvidia gtx 765sm

Founded in 1983, the company has achieved an excellent reputation Clevo as a manufacturer of notebook computers. Due to the high position of the products in the high-tech has won many awards in tests conducted around the world.
 clevo-logo


Mobility without compromise

Slight size and minimal weight makes the Clevo W230ST highly portable netbook, which is applicable in all cases. Thorough study of all the ergonomic aspects, the keyboard dimensions and position of the main control keys allow a very simple use of a laptop. Upgrading the fourth generation of processors Intel ® i7 processor and Nvidia graphics GTX-765M made ​​W230ST is currently the best laptop in the world in this segment.

clevo w230st barebone gaming laptop

Clevo W230ST v.0.3
Processor Intel® Core™ i3-4000M Processor (3M Cache, 2.40 GHz)
Memory not included - for building
HDD not included - for building
Graphics nVidia Geforce GTX-765M (N14E-GE) 2GB DDR5
Display 13.3” (33.78cm) FHD (1920x1080) 16:9 panel, 2.8mm (Anti-Glare)
Communication Wireless LAN 802.11B/G/N + Bluetooth v4.0+LE Combo Half Mini Card
Other 2M HD Video Camera / Sound Blaster Cinema

The detailed specification of the configuration available in the "Technical data"
If none of the available configuration does not interest you, you can always suggest your option components. Submit your suggestion using the contact form - up to 2 working days you will receive a valuation of the desired configuration. Remember to carefully specify each parameter and accessories.
Each purchaser of a Clevo barebone has the opportunity to buy their own components (CPU, RAM, disk). In this case, keep in mind that parts must be in full working order. Purchased parts to be sent to the headquarters of the NPD in order to verify the correct installation and operation.

Fourth generation Intel® Core i7

clevo w230st fourth generation intel

Fourth generation Intel® Core™ i7

 Intel Core 4th generation, the engineers placed emphasis on optimal power management. Less energy means good things - longer battery life and thinner casing.

Model C/T Frequency

Max. Frequency

L3 cache Max. GPU
 TDP
i3-4000MQ 2 / 4 2.4 GHz 2.4 GHz 3 MB 1.1 GHz 37 Wat
i7-4700MQ 4 / 8
 2.4 GHz 3.4 GHz 6 MB 1.15 GHz
 47 Wat
i7-4800MQ 4 / 8 2.7 GHz 3.7 GHz 6 MB 1.3 GHz
 47 Wat
i7-4900MQ 4 / 8 2.8 GHz 3.8 GHz 8 MB 1.3 GHz
 47 Wat

clevo w230st 13.3 i7-4700mq 4800mq 4900mq


nVidia® GTX-765M™

clevo w230st nvidia gtx675m

A new generation of NVIDIA ® GeForce ® GTX

NVIDIA GeForce ® GTX 765M graphics chip is designed for laptops based on the award-winning architecture of NVIDIA ® Kepler ™. The system has more clocks and cores than ever before, thanks to crush the competition in every respect. Graphics card has a core frequency of 850 MHz Boost technology 2.0 and GDDR5 memory with a capacity of 2GB.


 NVIDIA GeForce GTX 765M
Codename N14-GE
Cores 768
Clock 850 MHz
Memory 2048 MB GDDR5
Memory Speed 1000 MHz
go top… do góry menu… menu

Description

Flexible storage

clevo w230st msata3W230ST can support a total of three disks at the same time. This makes it possible to easily expand without having to move data from the old disk to the new one. Clevo Notebook W230ST to mount two mSATA drive on which you can install the system and most used applications. The use of RAID brings powerful performance increase (read data at 1GB / s).



clevo w230st raid technology turbo

RAID 0 allows you to hook up physical drives into a single logical which allows for better use of space. With RAID 1, your data will be safer because a disk is an exact copy of the other. If one drive fails all data is still available on the other. RAID 1 is almost twice as fast as reading data from the disk.

w230st clevo raid ssd msata hdd

Advanced illumination

The keyboard backlight LED is a feature that not only beautifies Clevo W230ST, but also makes it easier to write when the light in the environment is weak. The color and intensity of illumination can be adjusted to your needs. Highlighting three-zone which allows for the keyboard backlight in areas that are in use, and put it out there where it is unnecessary for example, the numeric keypad.

clevo w230st illuminated keyboard

Powerful storage capacity

Performance of your computer will never again let you down by technology, dual-channel RAM. Sharing channels reduces data latency and increase memory bandwidth to satisfy most storage-hungry applications. With up to 16GB of system memory always cope with the number of assigned tasks in parallel. The manufacturer can install two memory modules SODIMM DDR3/DDR3L.

clevo w230st ram disks ddr3l

CLEVO company to meet the needs of users applied in a laptop W230ST easy access to system components. In this way without any problems replacing the drive for greater efficiency will increase bone RAM or just clean the laptop with a residual dust.

Sound Blaster® Cinema

clevo w230st sound blaster cinema

Sound Blaster Cinema has the best qualities of sound cards Sound Blaster ® and sets new standards in technology for games and entertainment via the PC. Sound Blaster and built-in Onkyo speakers deliver superior sound quality when listening to music and playing.

go top… do góry menu… menu


Connectors

clevo w230st 2m video camera microphone illuminated keyboard
1. 2.0M HD Video Camera
 4. Power Button
2. Built-in Microphone
 5. Backlit Keyboard
3. LED Status Indicators
 6. Touchpad with Scroll Slider
onkyo speakers w230st clevo msata
1. Onkyo Speakers
 4. Battery Release Latch
2. Battery Pack (6 cell)
 5. CPU & GPU Cooling Fan
3. Battery Lock
 6. CPU, GPU, Pamięć, Dysk, WiFi,  mSata

clevo w230st usb3.0 hdmi vga rj45lan kensington lock

1. 3x USB 3.0
 4. RJ-45 LAN Port (Gigabit)
2. HDMI 1.4a Output Jack
 5. DC-In Jack
3. DB15 VGA Output Jack
 4. Kensington Lock
w230st clevo rj45 lan spdif card reader
1. CPU & GPU Vents
 5. Headphone - Out Jack
2. USB 2.0 Port
 6. Microphone - In Jack
w230st led status indicator card reader
1. Hard Drive, Airplane mode, Power and Battery Charge Status Indicators
 2. Card Reader 6-in-1
clevo w230st gaming laptop

more photos in "Gallery"...
specification of this version is available in the "Specifications"...
menu… menu

WAN: ------
WLAN: Wireless LAN 802.11B/G/N + Bluetooth v4.0+LE Combo Half Mini Card module
Bluetooth: Yes - 4.0
Processor: Intel® Core™ i3-4000M Processor (3M Cache, 2.40 GHz)
Memory: none (available in other configurations)
Chipset: Mobile Intel® HM87 Express Chipset
Dispaly: 13.3” (33.78cm) FHD (1920x1080) 16:9 panel, 2.8mm (Anti-Glare)
Graphics card: nVidia GTX-765M (N14E-GE) 2GB DDR5
Touch screen: No
Swivel Hinge: No
Hard Drive: none (available in other configurations)
BIOS: -------
VGA out: Yes - HDMI, VGA
LAN: 10/100/1000MB Base - TX Ethernet LAN
Camera: Yes - 2M HD Video Camera
Audio: High Definition Audio / Built in microphone / Built in two speakers / SOUND BLASTER Cinema
Seciurity: Kensington® Lock
TV Out: ------
In/Out: 1x USB 2.0 port / 3x USB 3.0 ports(1x powered USB port, AC/DC) / 1x HDMITM  output port (with HDCP) / 1x external VGA port / 1x Headphone jack / 1x Microphone jack / 1x RJ-45 LAN port / 1x DC-in jack
Keyboard: QWERTY - function keys, illuminated
Additional Navigation Devices : Touch pad with scrolling function
Battery: Removable 6 cells Smart Lithium-Ion battery pack, 62.16WH
Working time on battery: 300 minutes
Size: 330 (W) x 227 (D) x 31.9 (H) mm - 2.0kg, including 62.16WH battery
CD/DVD: No
Operating System: No
Flash Card Reader: Yes - 6-in-1 Push-Push Card reader (MMC / RSMMC / SD / Mini SD / SDHC / SDXC)
GPS: ------
TV Tuner: ------
Color: ------
Other: Warranty 24 months


CURRENT PRICE
2465.11 € Net
3032.09€ Gross
