Notebook - Clevo P177SM v.0.3 - barebone
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/notebook--clevo-p177sm-v.0.3-kadlubek-produkt-85911.html

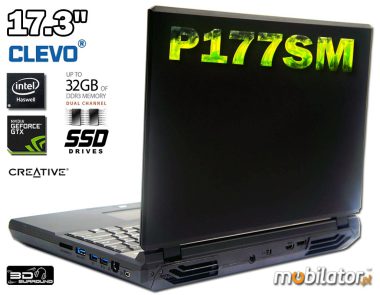

Notebook - Clevo P177SM v.0.3 - barebone

clevo p177sm

Founded in 1983, the company has achieved an excellent reputation Clevo as a manufacturer of notebook computers. Due to the high position of the products in the high-tech has won many awards in tests conducted around the world.

clevo-logo


Dedicated to the most demanding users



P177SM a laptop dedicated to solutions that require the greatest amount of power combined with great comfort of use. Rubberized elements and modern design ensures backlight keyboard and touchpad finalized with incredible performance and optimized power consumption Clevo P177SM puts in first place in the ranking of laptops in the world.



clevo p177sm foruth generation intel i7
Clevo P177SM v.0.3 - Kadłubek
Processor not included - for building
Memory not included - for building
HDD not included - for building
Graphics ATI AMD Neptune XT HD 8970M 4GB GDDR5 RAM
Display 17.3" FHD (1920 x 1080) LED Matte
Communication Wireless LAN 802.11B/G/N + Bluetooth v4.0+LE Combo Half Mini Card
Optical Drive
 Super Multi DVD Dual
Other Camera CCD FHD 2.0Mpx

The detailed specification of the configuration available in the "Technical data"
If none of the available configuration does not interest you, you can always suggest your option components. Submit your suggestion using the contact form - up to 2 working days you will receive a valuation of the desired configuration. Remember to carefully specify each parameter and accessories.
Each purchaser of a Clevo barebone has the opportunity to buy their own components (CPU, RAM, disk). In this case, keep in mind that parts must be in full working order. Purchased parts to be sent to the headquarters of the NPD in order to verify the correct installation and operation.

go top… do góry menu… menu

Fourth generation Intel® Core i7

czwarta-generacja-intel haswell intel core i 7 i5

Fourth generation Intel® Core™ i7

Intel Core 4th generation, the engineers placed emphasis on optimal power management. Less energy means good things - longer battery life and thinner casing.



Model C/T Frequency

Max. Frequency

L3 cache Max. GPU
 TDP
i7-4700MQ 4 / 8
 2.4 GHz 3.4 GHz 6 MB 1.15 GHz
 47 Watt
i7-4800MQ 4 / 8 2.7 GHz 3.7 GHz 6 MB 1.3 GHz
 47 Watt
i7-4900MQ 4 / 8 2.8 GHz 3.8 GHz 8 MB 1.3 GHz
 47 Watt
i7-4930MX 4 / 8 3 GHz 3.9 GHz 8 MB 1.35 GHz
 57 Watt
clevo p177sm rubber

NVIDIA® GeForce GTX® 780M / 770M

clevo p177sm gtx 780m

New series nVidia® Geforce GTX®

NVIDIA GeForce ® GTX 780M is currently the fastest graphics chip designed for laptops based on the award-winning architecture of NVIDIA ® Kepler ™. The increase in productivity compared to the GTX 680M is 30%. The system has more clocks and cores than ever before, thanks to crush the competition in every respect. The system is equipped with a core frequency of 823 MHz containing Boost technology 2.0 and GDDR5 memory with a capacity of 4GB.


 NVIDIA GeForce GTX 780M NVIDIA GeForce GTX 770M
GPU GK104 (N14E-GTX)
 GK106 (N14E-GS)
Cores 1536 960
Clock 823 MHz 811 MHz
Memory 4096 MB GDDR5 3072 GB GDDR5
Memory Clock 2500 MHz 1002 MHz

go top… do górymenu… menu

Description

Flexible storage

Flash SSD (Solid State Disc). They have no clevo p177sm dual hdd msatamoving parts and only the same electronics. SSD two times faster reads and writes data over standard drives 2.5 ". Additionally, consumes little energy, and in general does not heat up and reduces the CPU load up to 10%.

4 dyski clevo p177smP177SM can support a total of four hard drives (2x - HDD, 2x - mSATA SSD) at the same time. This makes it possible to easily expand without having to move data from the old disk to the new one. If you start running out of space on your hard drive is enough that you will use just another. Clevo Laptop P177SM to mount two mSATA drive on which you can install the system and frequently used applications. This approach leads to a super-fast operation of your computer.

The speed of operations carried out applications installed on the mSATA drives can increase up to 30%.



Increased security and faster work in RAID

clevo p177sm raid 0 1



RAID 0 allows you to hook up physical drives into a single logical which allows for better use of space. With RAID 1, your data will be safer because a disk is an exact copy of the other. If one drive fails all data is still available on the other. RAID 1 is almost twice as fast as reading data from the disk.



Advanced Illumination

The backlight keyboard and touchpad LED is a feature that not only beautifies Clevo P177SM, but also makes it easier to write when the light in the environment is weak. Illuminate the color and intensity can be adjusted to your needs. Highlighting three-zone which allows for the keyboard backlight in areas that are in use, and put it out there where it is unnecessary for example, the numeric keypad.



illuminated keyboard touchpad p177sm

32GB ram clevo p177sm

Powerful storage capacity

Capacity 32gb ram Clevo p177sm your computer anymore let you down through technology-channel RAM. Sharing channels reduces data latency and increase memory bandwidth to satisfy most storage-hungry applications.

With up to 32GB system memory always cope with the number of assigned tasks in parallel. Producer allows you to mount four SODIMM memory chips DDR3/DDR3L.

clevo 177sm modularity

CLEVO leaving the needs of laptop users comply P170 easy access to system components. In this way without any problems replacing the drive with a larger one, increase the efficiency of bone RAM or simply clear the laptop with residual dust.

Sound Blaster X-Fi MB3

sound blaster x fi mb3 clevo p177sm

Sound Blaster X-Fi MB3 has the best qualities of sound cards Sound Blaster ® and sets new standards in technology for games and entertainment via the PC. Sound Blaster and built-in speakers with sub-woofer deliver superior sound quality while listening to and making music in CLEVO P177SM, as well as the best option for gaming.

Connectors and ports

clevo p177sm hdmi e-sata

In addition to DVI and HDMI sockets Laptop supports DisplayPort, which offers better color depth, speed of data transfer and support for high-resolution audio formats. All with a single cable.

hdmi hd e-sata usb wifi bluetooth usb 3.0 clevo p177sm

clevo p177sm kamera głośniki podświetlana klawiatura czytnik linii papilarnych

clevo p177sm bateria sub-woofer

clevo p177sm 1394a lan usb 3.0 e-sata czytnik kart

clevo p177sm s/pdif jack kensington lock cd dvd bluray

clevo p177sm led

hdmi 1.4a displayport 1.2

more photos in "Gallery"...

specification of this version is available in the "Specifications"...

WAN: ------
WLAN: Wireless LAN 802.11B/G/N + Bluetooth v4.0+LE Combo Half Mini Card module
Bluetooth: Yes - 4.0
Processor: none (available in other configurations)
Memory: none (available in other configurations)
Chipset: Intel® 8 Series Chipset
Dispaly: 17.3" FHD (1920 x 1080) LED Matte
Graphics card: ATI AMD Neptune XT HD 8970M 4096MB GDDR5 RAM
Touch screen: No
Swivel Hinge: No
Hard Drive: none (available in other configurations)
BIOS: -------
VGA out: Yes - HDMI 1.4a , Display Port 1.1 , DVI-I
LAN: 10/100/1000MB Base - TX Ethernet LAN
Camera: Yes - 2.0M FHD CCD
Audio: Sound Blaster® X-Fi™ MB 3/ High Definition Audio/ 5 Speakers / Build-in sub-woofer/ External 7.1CH audio output supported by headphone, microphone, Line-in, and S/PDIF jack
Seciurity: Fingerprint / Kensington® Lock
TV Out: ------
In/Out: 1 x USB 2.0 port, 3 x USB 3.0 ports (1 x powered USB port, AC/DC) , 1 x eSATA port (USB 3.0 combo) , 1 x Mini IEEE 1394a port , 1 x Display port 1.2, Mini Display port 1.2, 1 x HDMITM output port (with HDCP), 1 x Headphone jack, 1 x Microphone jack, 1 x S/PDIF output jack, 1 x Line-in jack , 1 x RJ-45 LAN port , 1 x DC-in jack
Keyboard: QWERTY - function keys, illuminated
Additional Navigation Devices : Illuminated Touch pad with scrolling function
Battery: Removable 8 cells Smart Lithium-Ion battery pack, 76.96WH
Working time on battery: 300 minutes
Size: 414 (W)x286 (D)x25.3~46.1 (H)mm(TBC) - 4.1Kg(TBC),including ODD and 76.96WH Battery
CD/DVD: Super Multi DVD DUAL
Operating System: ------
Flash Card Reader: Yes - 9-in-1 (MMC / RSMMC - SD / mini SD / SDHC / SDXC - MS / MS Pro / MS Duo) - Push Push
GPS: No
TV Tuner: No
Color: Black
Other: ------


CURRENT PRICE
3276.30 € Net
4029.85€ Gross
