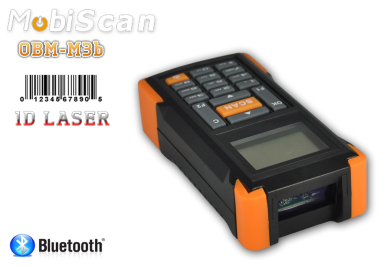

MobiScan OBM-M3b
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/mobiscan-obm-m3b-produkt-87109.html

MobiScan OBM-M3b

MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

The company's  MobiScan  new distribution of Mobilator. Company achieved an excellent reputation as a manufacturer of bar code scanners. Due to the high position of the products in the high-tech won the trust of many customers around the world.

MobiScan



The bar code scanner is a device that allows data read barcodes from boxes, equipment, documents and all the places where these codes were implemented. MobiScan products are of high quality and the ability to trouble-free operation for many years.

MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

MobiScan OBM-M3b
Barcode scanner
1D Laser
Display LCD (128x64)
Working time
10 h
Support system
Android, iOS, Windows XP, Windows 7, Windows 8
Range do 10m
Communication Bluetooth 4.0
Dimensions 46 x 102 x 28mm
Weight
145g
Other Internal Memory: RAM: 16KB, ROM: 4MB(more than 100 thousand data)

The detailed specification of the configuration available in the "Technical data"



Description


Unusual, modern, wireless (Bluetooth) mini barcode scanner MobiScan OBM-M3b has been designed with users in mind, for which it is necessary to meticulous cataloging of all available information logistics in the form of electronic databases, spreadsheets, lists, forms, etc.

MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINIOBM-M3b intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers, logistics specialists, quality auditors and inspectors of manufacturing processes and all those who work in need of cataloging and storing information sczytanych with barcodes.

Barcode Scanner 1D Laser - MobiScan OBM-M3b through Bluetooth module (which ensures proper communication) is compatible with mobile devices, data collectors and computers running on different operating systemch (see the text "Communication" - below).

MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

MobiScan Hand Mini MS3398 NEW Bluetooth 2.0 MOBISCAN HAND MINI MS-3398 IP64 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINIA new generation of mini scanner surprises his appearance. This ergonomic, compact and extremely lightweight barcode reader with an appropriate surface texture provides a good grip and reduces hand fatigue with long hours of work.

MobiScan Hand Mini MS3398 NEW Bluetooth 2.0 MOBISCAN HAND MINI MS-3398 IP64 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINIMobiScan OBM-M3b is equipped with a Li-Ion battery with sufficient capacity 1800mAh, which allows the scanner to operate for about 18 hours in scan mode or leave it on standby for 15 days.

Summary mini barcode scanner has a built-in four-line LCD display (128x64) monochrome, so that we can check the status of the scanner on a regular basis and read data from barcodes in real-time.

MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI



Communication

MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

The present device has a built - 1D LASER barcode reader that connecting via Bluetooth with your device. It provides information such as the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data.

MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

Designed to be tailored to different applications, wireless (Bluetooth) barcode scanner can be compatible with Android, iOS, Windows XP, Windows 7, Windows 8 and Linux. Users can send data directly to a PC or in real time to mobile devices.




MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

Portable (radio and bluetooth-arid) barcode readers using laser technology are comfortable and easy to use, with wide possibilities to set parameters. Enable automatic operation and manual. Read codes with different contrasts with a distance of several centimeters. The use of wireless communication (Bluetooth or radio) offer a range of up to 10m from the computer.

MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

The device uses the HID interface

To scanner devices need to use the right software to a serial port (RS-232) collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver.
Most of the users is a (mistaken) belief that each scanner connected to a computer will send data, which can be further processed such as Notepad or MS Word. That's not true.To do so, use the scanner with the so-called keyboard emulation - connected to a computer via USB, but the scanner must be working in a standard USB HID (Human Interface Device) otherwise known as Low Speed ​​USB also. In this way the data is sent to the computer in exactly the same way as does a USB keyboard. Hence the term emulation keyboard.
If we have the right scanner (USB HID) - when barcode in fact our  introduce to Word or Notepad in the form of digits or in any place where we can place the cursor or wpiswać text data. Scanners USB HID usually do not require additional drivers, as the drivers for HID devices are standard in Windows.

Supported Bluetooth profiles SPP system.

SPP defines how to set up virtual serial ports (RS-232) and connect two devices via Bluetooth. SPP is a serial port profile. It is used in various devices (eg PC, GPS, industrial equipment).

Wireless barcode scanner works as a Bluetooth master (supporting SPP - Serial Port Profile). When paired with a computer or mobile device, the bar code can be read using a software virtual serial port (RS232 or COM port). This allows the device one can to both send and receive data via Bluetooth without connecting a serial cable to your computer .



MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI




Application

Standards and Tests

 Operating 0°  do 45°C
 Operating Humidity 5% -- 95% non-condensing
 Dust IP5x (dust)
 Water IPx4 (splashed water)
 Drop Multiple drops to concrete 4,7ft./1,2m

MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

IP54 Resistance

MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.

The first digit [x]
Protection against solid objects
  The second digits [y]
Protection against liquids
No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from object not greater than 12mm in diamete
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection against heavy seas, or powerful jets of water


7

Protection against immersion


8

Protection against complete, continuous submersion in water

Application

MobiScan OBM-M3b, which the manufacturer recommends widely used in situations where it is necessary to rapidly identify the goods in commerce, logistics, transport, shipping, industrial, financial and public sectors.

MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI



MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI
Pharmacy

OBM-M3b allows you to quickly identify and enter prescriptions into the database. With a small, mobile, lightweight design is easy to carry and effectively accepting orders.

Trade

The device is used for fast read-out bar codes. Certainly can be applied in all kinds of commercial networks.

MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI
MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

Magazine

Mini barcode reader Allows you to quickly update the inventory with the help of Bluetooth wireless data transfer.

Logistics and transport

Small scanner will find all kinds of use including in transport - a portable and super light barcode reader for fast identification.

MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI



Specifications



Barcode readers allow you to in the bar code read and send to your database.MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI We offer high quality device for reading bar codes that work flawlessly even in the harshest industrial environments.

After scanning the coded data can be transferred to a computer or a portable database. Such a rapid and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes.



MobiScan OBM-M3b
Mechanical

Height: 28mm

Lenght: 102 mm

Width: 46 mm

Weight: 145g

Display LCD (128 × 64)
Resistance IP54
Data Storage

RAM: 16KB

ROM: 4MB(more than 100 thousand data)

Electrical DC:  5V
Scan Performance

Sensor Type: 650 nm visible laser diode

Scan Rate: 45±2 times/sec

Baterry Power

Li-ion 1800 mAh

Working time: 10 h

Standby time: 15 dni

Barcode Type EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI…
Communication

Bluetooth 4.0

Range: up to 10 m

Cable MiniUSB

Scan Range

20mm@window

220mm@200mm

Housing color Black
Accessories

Battery, charger, data cable, user manual(CD), wrist strap

MobiScan  OBM-M3  Bluetooth MOBISCAN OBM-M3B Skaner 1D Laser Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Supported Operating Systems: Android, iOS, Windows XP, Windows 7, Windows 8
Internal memory: RAM 16KB ROM 4MB(more than 100 thousand data)
Operation Voltage: DC: 5V
Reading indicator: 1D Laser
Dimensions: 102 × 46 × 28 mm
Weight: 145 g
Battery: 1800 mAh Li-ion
Housing material: ABS + silicone
Scan rate: 45±2 times/sec
Light source: 650 nm visible laser diode
Resolution: -
Communication distance: 10 m
Readable codes: EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI…
Sensor: 1D Laser
Scan Angle: ±55°, ±65°, ±30° (Skew, Pitch, Roll)
Print Contrast Ratio: 30%
Scan range: 20mm@window, 220mm@200mm, 0~250mm(0.33mm,PCS 90%)
Cable Type: MiniUSB
Battery Life: 10h
Communication: Bluetooth 4.0
Interface/ Prole: HID / SPP
Operating Temperature: 0°C ~ 45°C
Storage Temperature: -20°C ~ 60°C
Relative Humidity: 5% ~ 95%, non-condensing
Resistance IP: IP 54
Drop test: 1.2 m
Barcodes 1D: Barcodes 1D:
2 of 5 Chinese: No
2 of 5 Discrete: No
2 of 5 IATA: Yes
2 of 5 Industrial: Yes
2 of 5 Interleaved: Yes
2 of 5 Matrix: No
2 of 5 Standard: Yes
BC - 412: No
Bookland EAN: Yes
Codabar: Yes
Codabar - NW7: No
Code - 11: Yes
Code - 11(USD-8): No
Code - 32: Yes
Code - 39: Yes
Code - 39 Extended (full ASCII): Yes
Code - 39 Trioptic : No
Code - 93: Yes
Code - 128 (A, B, C): Yes
EAN-8: Yes
EAN-13: Yes
EAN -128 / UCC-128: Yes
GS1 DataBar: No
Intelligent Mail: No
ISBN: Yes
ISBT - 128: No
ISSN: No
ITF-6: No
ITF-14: No
KIX code: No
Matrix 25: Yes
MSI: Yes
MSI - Plessey: No
Pharmacode - One Track: No
Pharmacode - Two Track: No
Planet: No
Plessey: No
Post - Australian (4-State Postal Code): No
Post - China (4-State Postal Code): Yes
Post - Japanese (4-State Postal Code): No
Post - Singapore (4-State Postal Code): No
PostNET: No
Royal Mail (RM-4SCC): No
Telepen Code: No
UK/Plessey: No
UPC - A: Yes
UPC - E: Yes
UPC - E1: No
Barcodes 2D: Barcodes 2D:
Aztec: No
Composite code: No
DataMatrix: No
MaxiCode: No
Micro PDF 417: No
Micro QR Code : No
PDF 417: No
QR Code : No
RSS: No
TLC-39: No


CURRENT PRICE
637.59 € Net
784.24€ Gross
