The bar code scanner is a device that allows read with barcodes from boxes or devices. Business accessories MobiScan product guarantee high quality and serve for many years without any loss of quality.
|
|
|||||||||||||||||||||
|
|
Description

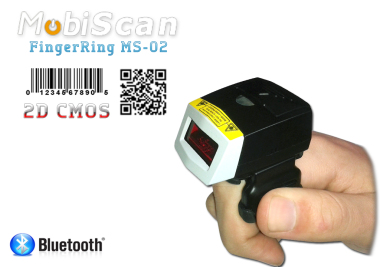

MobiScan FingerRing MS02 Bluetooth is small size and powerful new generation barcode scanner.It design for picking and sorting application ,enable your operator to free hand and improve operational efficiency in your warehouse,distribution center and retail store. You never need setting an item down to check paper work order or picking up handheld scanner. Operator even no need to put heavy pakage to the desktop for scan ,it will save more time and physical strength. Compare with common wired handheld scanner MS-02 wearable scanner can increase 15% -30% productivity !
2D Barcode Scanner - MobiScan MS-02 through Bluetooth module (which provides reliable communication) is compatible with mobile devices, data collectors and computers running on different operating systemch (see the text "Communication" - below).
|
Communication |
.jpg) The present device has a built-2D CMOS barcode reader that connecting via Bluetooth with your device. It provides information such as the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data. |
|
Designed to be tailored to different applications, wireless (Bluetooth) barcode scanner can be compatible with Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8. Users can send data directly to a PC or in real time to mobile devices.
Portable (radio and bluetooth-arid) barcode readers using laser technology are comfortable and easy to use, with wide possibilities to set parameters. Enable automatic operation and manual. Read codes with different contrasts with a distance of several centimeters. The use of wireless communication (Bluetooth or radio) offer a range of up to 20m from the computer.
The device uses the HID interface
To scanner devices need to use the right software to a serial port (RS-232) collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver.
Supported Bluetooth profiles SPP system. SPP defines how to set up virtual serial ports (RS-232) and connect two devices via Bluetooth. SPP is a serial port profile. It is used in various devices (eg PC, GPS, industrial equipment). Wireless barcode scanner works as a Bluetooth master (supporting SPP - Serial Port Profile). When paired with a computer or mobile device, the bar code can be read using a software virtual serial port (RS232 or COM port). This allows the device one can to both send and receive data via Bluetooth without connecting a serial cable to your computer .
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Supported Operating Systems: | Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Linux |
| Internal memory: | 100KB for offline mode: 6000 15 bytes barcodes |
| Operation Voltage: | Power: DC5V Typical: 230mA DC5V |
| Reading indicator: | 2D CMOS |
| Dimensions: | 53.9 x 40 x 50.3 mm |
| Weight: | 60 g |
| Battery: | 350 mAh Li-ion |
| Housing material: | Plastic |
| Scan rate: | 30 times/sec |
| Light source: | RED LED 625±10nm |
| Resolution: | 752×480 |
| Communication distance: | 20 m |
| Readable codes: | 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (including FNC1, FNC2 and FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey. 2D: PDF417、QR Code(Model 1/2, Micro)、Data Matrix (ECC200,ECC000,050,080,100,140) |
| Sensor: | 752×480 CMOS |
| Scan Angle: | ±50°,±50°,±360°(skew, pitch, Roll) |
| Print Contrast Ratio: | ≥30% |
| Scan range: | (1 mil = 0.0254 mm) UPC-A (13mil): 55mm - 270mm Code 39 (20mil): 50mm - 340mm PDF 417 (6.67mil): 70mm - 165mm Data Matrix (10mil): 55mm - 180mm QR Code (20mil): 35mm - 275mm |
| Cable Type: | MicroUSB |
| Battery Life: | 3-15 h |
| Communication: | Bluetooth 3.0 |
| Interface/ Pro le: | HID/ SPP |
| Operating Temperature: | -10°C ~ 60°C |
| Storage Temperature: | -40°C ~ 70°C |
| Relative Humidity: | 5% ~ 90%, non-condensing |
| Resistance IP: | IP 64 |
| Drop test: | Multiple drops 4,7ft. / 1.2m |
| Barcodes 1D: | Barcodes 1D: |
| 2 of 5 Chinese: | No |
| 2 of 5 Discrete: | No |
| 2 of 5 IATA: | No |
| 2 of 5 Industrial: | Yes |
| 2 of 5 Interleaved: | Yes |
| 2 of 5 Matrix: | Yes |
| 2 of 5 Standard: | Yes |
| BC - 412: | No |
| Bookland EAN: | No |
| Codabar: | Yes |
| Codabar - NW7: | No |
| Code - 11: | Yes |
| Code - 11(USD-8): | No |
| Code - 32: | No |
| Code - 39: | Yes |
| Code - 39 Extended (full ASCII): | No |
| Code - 39 Trioptic : | No |
| Code - 93: | Yes |
| Code - 128 (A, B, C): | Yes |
| EAN-8: | Yes |
| EAN-13: | Yes |
| EAN -128 / UCC-128: | Yes |
| GS1 DataBar: | Yes |
| Intelligent Mail: | No |
| ISBN: | Yes |
| ISBT - 128: | No |
| ISSN: | Yes |
| ITF-6: | Yes |
| ITF-14: | Yes |
| KIX code: | No |
| Matrix 25: | No |
| MSI: | Yes |
| MSI - Plessey: | Yes |
| Pharmacode - One Track: | No |
| Pharmacode - Two Track: | No |
| Planet: | No |
| Plessey: | Yes |
| Post - Australian (4-State Postal Code): | No |
| Post - China (4-State Postal Code): | No |
| Post - Japanese (4-State Postal Code): | No |
| Post - Singapore (4-State Postal Code): | No |
| PostNET: | No |
| Royal Mail (RM-4SCC): | No |
| Telepen Code: | No |
| UK/Plessey: | No |
| UPC - A: | Yes |
| UPC - E: | Yes |
| UPC - E1: | No |
| Barcodes 2D: | Barcodes 2D: |
| Aztec: | No |
| Composite code: | No |
| DataMatrix: | Yes |
| MaxiCode: | No |
| Micro PDF 417: | No |
| Micro QR Code : | No |
| PDF 417: | Yes |
| QR Code : | Yes |
| RSS: | No |
| TLC-39: | No |
CURRENT PRICE |
|
| 1113.61 € | Net |
| 1369.74€ | Gross |
.jpg)
MobiScan FingerRing 2D CMOS intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers and logistics, quality controllers and inspectors of manufacturing processes and all those who need to work cataloging and storing the information read from the barcode .
FingerRing wearable ring scanner enable operator to move package ,products and materials,helping to increase more efficiency, It is very comfortable to wear it in whole working day ,with high performance laser scan engine ,even poor printed barcode can be read.The rugged rubber shell make daily use reliable even in the roughest environments. .jpg)
MS-02 is equipped with a Li-Ion battery with sufficient capacity 350mAh, allowing you to operate the scanner from 3 to 15 hours depending on the scan mode or remain in standby mode for 5 days. The charging time is 1.5 hours.
.gif)
.jpg)
.jpg){kind=small}
We offer high quality device for reading bar codes that work flawlessly even in the harshest industrial environments..jpg)
