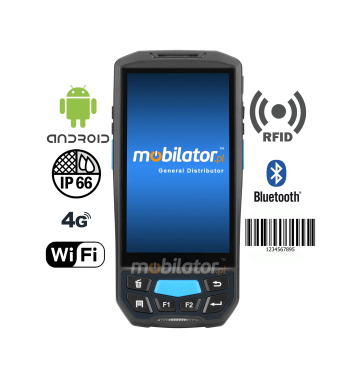

MobiPad U90 v.15 - Industrial Data Collector
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/mobipad-u90-v.15--wodoodporny-mobilny-kolektor-danych-ze-skanerem-kodow-kreskowych-1d-honeywell-n4313-i-czytnikami-radiowym-rfid-lf-uhf-produkt-90766.html

MobiPad U90 v.15 - Industrial Data Collector

Modern Refractory Resistans Practical Data Collector MobiPad U9000 Android WiFi 1D Scanner RFID LF+UHF

MobiPad U90 has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP66 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.




Description



 Processor(CPU) ARM Cortex-A53 64-bit | Quad-core  1.3GHz
 Display 5.0" (720*1280) | IPS HD Color Touch Screen
 RAM  2GB
 ROM  16GB Nand Flash
 Connectors  Micro-USB | Micro SD/TF card slot (max. 32GB) | Micro-SIM
 GPS  Built-in GPS Support A-GPS(optional)
 Audio  Speaker | Microphone
 Camera(optional) 8Mpx
 Battery  3.7V, 4800mAh Li-Ion (Czas działania ok. 7-8 h)
 Keyboard  Vitual qwerty keyboard and actual figure button
 Environment  Android 7.0 Nougat
 Modules
  GPS /4G/3G/2G | WiFi | Bluetooth | LF+UHF
 Dimensions  172mm*80mm*27mm | 500g
 Resistance  IP66
 Readers

1D: Mindeo 1D uE966* / Honeywell N4313

2D: Newland EM3090* / Newland EM3096* / Honeywell N6603*



* Optional equipment, available on specific versions only.



Select a version for each other

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".


[tab_wersja_id_113]

go top… do góry menu… menu


Use of device





Data collector MobiPad U90 can be used for projects like: supermarket cashless payment, inventory management and logistics tracking. Device will be also good option to business data management and other services.

Operating temperature: -20 ° C ~ 50 °C

Operating Humidity: 5% ~ 95%



go top… do góry menu…menu



The collection and processing of data

Barcode Scanner 1D

Barcode Reader 1D allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.



Modern Refractory Resistans Practical Data Collector MobiPad U90 Android WiFi

1D 1D / 2D
Mindeo uE966*

 Newland: EM3090*, Newland: 3096*
Honeywell N4313

Honeywell: N6603*



Radio-Frequency Identification (RFID)

RFID is a technology used to identify objects and to control the flow products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.

Type

 RFID LF     RFID HF
Frequency 125KHz               13.56MHz
Potocol ISO11784/5 ISO 14443A/15693
Read distance 3-8cm 3-8cm
Type RFID UHF
Frequency 840-960MHz
Potocol EPC C1 GEN2/ISO 18000-6B/C
Antenna Circular antenna(3dBi)
Read distance 1.5-3m, tags and environment dependent



Near Field Communication (NFC) (Option)

Its a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm or less. NFC devices are used in contactless payment systems, similar to those used in credit cards and electronic ticket smartcards and allow mobile payment to replace/supplement these systems. NFC is used for social networking, for sharing contacts, photos, videos or files.




 NFC
 Frequency 13.56 MHz
Reading distance od 2 do 4 cm
Supported card standard
 Mifare Write/Read
Supported standards  ISO/IEC 18092
  EMCA 340

go top... do góry menu… menu



Resitance

Applicable standards

Operating -20°C -- +50°C
Storage -25°C -- +70°C
Humidity 5% - 95% RH | non-condensing
Dust IP6x (dust)
Water IPx6 (water)
Drop 1.5m

go top... do góry menu… menu

Modern Refractory Resistans Practical Data Collector MobiPad U9000 Android WiFi 1D Scanner RFID LF+UHF

IP66 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No special protection
0

0
No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1

Protection from dripping water
Protection from solid objects greater than 50mm in diameter
2

2
Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3
Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4
Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5
Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust
6

6
Protection from water projected from a nozzle


7
Protection against immersion


8

Protection against complete, continuous submersion in water

go top... do góry menu… menu

Modules and Wireless Networks



When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 4G module used in MobiPad U90 devices are used in contactless payment systems, similar to those used in credit cards and electronic ticket smartcards and allow mobile payment to replace/supplement these systems. NFC is used for social networking, for sharing contacts, photos, videos or files.

WiFi  802.11 a/b/g/n
GPS  Yes
Bluetooth  Bluetooth  v4.1
WWLAN(4G/3G/2G)

LTE-FDD B1 B3 B8

LTE-TDD B38 B39 B40 B41

WCDMA Band1 Band8

TD-SCDMA Band34 Band39

CDMA BC0

DCS1800

EGSM900


go top... do góry menu… menu

Minimalism

Modern Refractory Resistans Practical Data Collector MobiPad U9000 Android WiFi 1D Scanner RFID LF+UHF

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have MobiPad U90. The device weighs just 500g and its dimensions  (172 x 80 x 22mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that MobiPad U90 is in a group of devices which enjoy great popularity in the European market in the industrial segment.

go top... do góry menu… menu





Dimensions 172 × 80 × 27mm
 Weight 500g





go top... do góry menu… menu


more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

Durability: IP66
Humidity: 5 - 95% (no condensation)
Waterproof: IPX6
Weight:
Temperature: Operating temperature: -20°C -- +55°C
Storage temperature: -25°C -- +70°C
Shock: -----
Vibration: -----
Drop: 1.5 meters
Sand and dust: IP6X
1D barcode scanner (reader): 1D Honeywell N4313
2D barcode scanner (reader): Optional
RFID scanner (reader): LF+HF
LF (125kHz) ISO11784/5, ISO18000-2
UHF (840-960MHz) ISO18000-6B/C, EPC Class1Gen2
Magnetic card reader (MSR): No
Microchip card reader: No
Docking station connector: No
VESA standard – holders and mounts support: No
COM port: No
Dispaly: 5.0 " IPS 720*1280
Brightness: -----
Contrast: -----
Touch screen: Yes
Graphics card: Integrated
Swivel Hinge: -----
VGA out: No
TV Out: -----
TV Tuner: -----
Processor: Arm Cortex-A53 64-bit Quad-Core 1.3 GHz
Chipset: -----
BIOS: -----
Memory: 2GB
Hard Drive: -----
Flash Memory: 16GB Nand Flash Storage
Battery: 3.7V 4800mAh Li-Ion
Working time on battery: 7-8 hours
HotSwap battery: No
Fast battery replacement ability: No
Size: 172 × 80 × 27mm- 500g
Casing material: high quality plastic and rubber
Fanless casing: Yes
Operating System: Android 7.0 Nougat
LAN: No
WLAN: 802.11 a/b/g/n
Bluetooth: Bluetooth 4.1
WAN: LTE-FDD B1 B3 B8 LTE-TDD B38 B39 B40 B41 WCDMA 2G/3G/4G Band1 Band8 TD-SCDMA Band34 Band39 CDMA BC0 DCS1800
GPS: Built-in
Flash Card Reader: microSD (max. 32GB)
CD/DVD: -----
Camera: 8Mpx
Audio: Built-in Speaker : Microphone
Seciurity: IP66
In/Out: 1 x USB 2.0, 1x USB Type C, 1 x Micro SD (max.32GB), 1 x Micro-SIM
Keyboard: Alphanumeric (+ function keys) : On-screen
Additional Navigation Devices : -----
Color: black
Optional accessories: -----
Other: -----


CURRENT PRICE
2131.97 € Net
2622.32€ Gross
