MiniPC Industrial Fanless MBOX-K900-D2550 v.4
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/minipc-przemyslowy-fanless-mbox-k900-d2550-v.4-produkt-87005.html

MiniPC Industrial Fanless MBOX-K900-D2550 v.4

MiniPC Przemys³owy Fanless MBOX-K900-D2550



Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MBOX-K900-D2550 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
go top… do góry   menu… menu

Description


Housing dimension are 210 (W) x188 (L) x50 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel GMA 3650 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 500GB HDD/16GB SSD/64GB SSD. The device can also operate over a wide voltage range 8 ~ 28V.

MiniPC Przemys³owy Fanless MBOX-K900-D2550
go top… do góry   menu… menu


Communication & Connectors

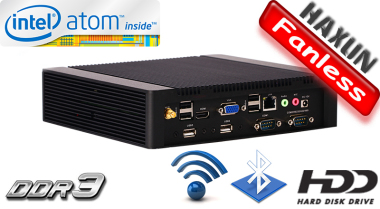

Integrated card - Intel RTL8111E 100M and WiFi module allow connection to the network. The computer is equipped with: one LAN port, two COM ports (RS232), one VGA output, six USB 2.0 ports, one HDMI output one way audio, one microphone input.


MiniPC Przemys³owy Fanless MBOX-K900-D2550

1. Power ON/OFF


MiniPC Przemys³owy Fanless MBOX-K900-D2550

1. 1x WiFi
   5. 1x VGA
2. 6x USB 2.0
   6. 1x RJ-45
3. 2x COM(RS232)
   7. Audio/Mic
4. 1x HDMI   8. DC-IN 12V

MiniPC Przemys³owy Fanless MBOX-K900-D2550

Cooling

The industrial fanless MiniPC MBOX-K900-D2550 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… do góry   menu… menu

Application

      Industrial MiniPC Series MBOX-K900-D2550 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesMiniPC Przemys³owy Fanless MBOX-K900-D2550 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

MiniPC Przemys³owy Fanless MBOX-K900-D2550


Areas of use of industrial MiniPC

Digital Engine

MiniPC Przemys³owy Fanless MBOX-K900-D2550

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
MiniPC Przemys³owy Fanless MBOX-K900-D2550
MiniPC Przemys³owy Fanless MBOX-K900-D2550

Magazine

Industrial fanless MiniPC MBOX-K900-D2550 by to two COM port (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless MBOX-K900-D2550 can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 8V to 28V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

MiniPC Przemys³owy Fanless MBOX-K900-D2550

MiniPC Przemys³owy Fanless MBOX-K900-D2550



MiniPC Przemys³owy Fanless MBOX-K900-D2550



Specifications


    Dimension



   H: 50 mm

   L: 188 mm

   W: 210 mm
   Weight    2,4kg
   Processor
    Intel Atom D2550 (2x1,8GHz)
   Chipset
    Intel NM70 express chipset
   RAM Memory
    4GB DDR3
   Graphic Card
    Intel GMA 3650
   Sound Card
    Realtek ALC662
   WLAN
    Intel RTL8111E 100M Lan
   Connectors

   2x COM(RS232)

   1x wyj¶cie 12V DC_JACK

   6x USB 2.0

   1x RJ-45

   1x wyj¶cie Audio

   1x HDMI

   1x Mic

   1x VGA
MiniPC Przemys³owy Fanless MBOX-K900-D2550


Others: Colour Black, Aluminum
Chipset: Intel NM70
CPU Support: -----
Installed CPU: Intel Atom D2550 (2x1.8GHz)
Memory Support: 2GB DDR3 (can up to 8GB)
Installed Memory: 4GB DDR3
Graphic Card: Intel GMA 3650
Storage (HDD) Support: -----
Installed Storage (HDD): 500GB HDD
CD/DVD Drive: -----
LAN: Intel RTL8111E 100M Lan
Wireless LAN card: Yes
Bluetooth: Yes
3G: No
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0~255 sec
Front Panel (ports): Power ON/OFF
Rear Panel (ports): 6x USB 2.0,
1x Audio,
1x RJ-45,
DC-in Jack,
1x HDMI,
1x Mic,
2x COM(RS232),
1x VGA
Power: 8~28V
Supported OS: Microsoft Windows: XP/Vista/7 , Linux
Installed OS: -----
Dimensions: 210 x 188 x 50 mm
Weight: 2.4 kg
Expansion: -----
Fanless: Yes
Humidity: 10% to 93%
Temp: -10°C - 60°C
IP Norm: -----
Storage temperature: -20°C ~ 80°C


CURRENT PRICE
1972.74 € Net
2426.47€ Gross
