MiniPC Industrial Fanless MBOX-K700 i3-2367M(V41) v.1
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/minipc-przemyslowy-fanless-mbox-k700-i3-2367mv41-v.1--produkt-86947.html

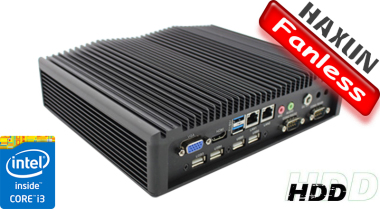

MiniPC Industrial Fanless MBOX-K700 i3-2367M(V41) v.1

MiniPC Przemys³owy Fanless MBOX-K700 i3-2367M(V41)



Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MBOX-K700 i3-2367M(V41) is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
go top… do góry   menu… menu

Description


Housing dimension are 210 (W) x188 (L) x62,4 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD 3000 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 320GB HDD/500GB HDD/64GB SSD.

MMiniPC Przemys³owy Fanless MBOX-K700 i3-2367M(V41)
go top… do góry   menu… menu


Communication & Connectors

Integrated card - Intel RTL8111E 100M (optional WiFi module) allow connection to the network. The computer is equipped with: two LAN ports, two COM ports (RS232), one VGA output, four USB 2.0 ports, two USB 3.0 ports, one HDMI output one way audio, one microphone input.


MiniPC Przemys³owy Fanless MBOX-K700 i3-2367M(V41)

1. Power ON/OFF


MiniPC Przemys³owy Fanless MBOX-K700 i3-2367M(V41)

1. 1x VGA
   5. 1x HDMI
2. 4x USB 2.0
   6. 2x USB 3.0
3. 2x RJ-45
   7. Audio/Mic
4. 2x COM(RS232)   8. DC-IN 12V

MiniPC Przemys³owy Fanless MBOX-K700 i3-2367M(V41)

Cooling

The industrial fanless MiniPC MBOX-K700 i3-2367M(V41) uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… do góry   menu… menu

Application

      Industrial MiniPC Series MBOX-K700 i3-2367M(V41) are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesMiniPC Przemys³owy Fanless MBOX-K700 i3-2367M(V41) of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

MiniPC Przemys³owy Fanless MBOX-K700 i3-2367M(V41)


Areas of use of industrial MiniPC

Digital Engine

MiniPC Przemys³owy Fanless MBOX-K700 i3-2367M(V41)

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
MiniPC Przemys³owy Fanless MBOX-K700 i3-2367M(V41)
MiniPC Przemys³owy Fanless MBOX-K700 i3-2367M(V41)

Magazine

Industrial fanless MiniPC MBOX-K700 i3-2367M(V41) by to two COM port (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless MBOX-K700 i3-2367M(V41) can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 8V to 28V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

MiniPC Przemys³owy Fanless MBOX-K700 i3-2367M(V41)

MiniPC Przemys³owy Fanless MBOX-K700 i3-2367M(V41)



MiniPC Przemys³owy Fanless MBOX-K700 i3-2367M(V41)



Specifications


    Dimension



   H: 62,4 mm

   L: 188 mm

   W: 210 mm
   Weight    2,4kg
   Processor
    Intel i3 2367M (2x1,4GHz)
   Chipset
    Intel HM67 express chipset
   RAM Memory
    4GB DDR3
   Graphic Card
    Intel HD 3000
   Sound Card
    Realtek ALC662
   WLAN
    Intel RTL8111E 100M Lan
   Connectors

   2x COM(RS232)

   1x wyj¶cie 12V DC_JACK

   4x USB 2.0

   2x USB 3.0

   2x RJ-45

   1x wyj¶cie Audio

   1x HDMI

   1x Mic

   1x VGA
MiniPC Przemys³owy Fanless MBOX-K700 i3-2367M(V41)


Others: Colour Black, Aluminum
Chipset: Intel HM67
CPU Support: -----
Installed CPU: Intel Core i3 2367M (2x1.4GHz)
Memory Support: 4GB DDR3 (can up to 8GB)
Installed Memory: 4GB DDR3
Graphic Card: Intel HD 3000
Storage (HDD) Support: -----
Installed Storage (HDD): 320 GB HDD
CD/DVD Drive: -----
LAN: Intel RTL8111E 100M Lan
Wireless LAN card: No (opctional Yes)
Bluetooth: No (opctional Yes)
3G: No
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0~255 sec
Front Panel (ports): Power ON/OFF
Rear Panel (ports): 4x USB 2.0,
2x USB 3.0,
1x Audio,
2x RJ-45,
DC-in Jack,
1x HDMI,
1x Mic,
2x COM(RS232),
1x VGA
Power: 12V
Supported OS: Microsoft Windows: XP/Vista/7 , Linux
Installed OS: -----
Dimensions: 210 x 188 x 62,4 mm
Weight: 2.4 kg
Expansion: WiFi
Fanless: Yes
Humidity: 10% to 93%
Temp: -10°C - 60°C
IP Norm: -----
Storage temperature: -20°C ~ 80°C


CURRENT PRICE
3167.32 € Net
3895.80€ Gross
