DIGITAL ENGINE the series of products AOpen firm dedicate to industrial use ...
|
 |
 |
|
Resistance on damage & small size ...
|
|

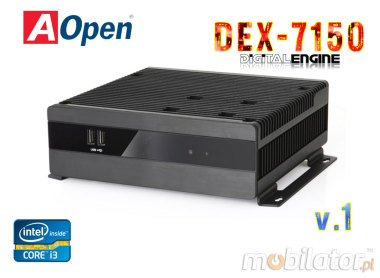

The AOpen Digital Engine DEX7150 is a high performance Intel-based system in a 200mm x 200mm x 65mm footprint that weighs less than 2.67 kg.
|
|
Environment specifications:
Operating Temperature: -5°C ~ 40°C
Non-Operating Temperature: -20°C ~ 60°C
Humidity: 90% RH(40℃ non-condensed)
Operating Vibration: 0.5Grms, 10 ~ 500Hz
Non-Operating Vibration: 2Grms, 10 ~ 300Hz
Operating Shock: Half Sine, 8G, 11ms
Non-Operating Shock: Half Sine, 50G, 11ms |
 |
|
Advenced technology ...
|
|
Using the latest technology Digital Engine is designed for continuous multi-tasking operating with low power consumption (90W). An important advantage is the effective combination of small size with considerable potential for use processors from Intel (Intel® Core™ i3-2330M / Intel® Core™ i5-3210M / Intel® Core™ i5-3320M /Intel® Core™ i7-3612QM) chipset (Intel QM77) and DDRIII memory expandability (up to 16GB). Integrated audio-visual application allows you to play (video, audio) in HD quality. Disk space offers available (up to) 500GB or optional use of a very fast 256GB SSD for storage.
|
.jpg)
.jpg)
DEX7150 has: two network cards Intel GB Ethernet and Intel 82583V-W82579LM GB Ethernet (10/100/1000 Mbps) or WiFi adapter (optional) to connect the device to the network. Your computer comes with one eSATA port, one COM port (RS232), one DVI-I output, six USB ports (2 x 3.0) and two Display ports, three audio inputs, and optional WiFi , Bluetooth.
|
|
Using & interface ...
|
|
|
Front Panel : |
 |
|
Rear Panel :
|
 |
|
|
|
|
Use ...
For thanks of use handles box, it many possibilites to mount Digital Engines - for example: in factory halls, with LCD / LED monitors, hipermarkets, shops, under table top and cars.
|
 |
|
Recapitulation ... |
|
AOpen Digital Engine DEX 7150 is a complete solution for Digital Signage, Projector PC, Media Player, and Vehicle PC. AOpen is a compact system of 2,4L with Intel GM77 Express Chipset supporting Intel socket G2 Core i3/ i5 / i7 processors. The AOpen DEX 7150 had 40,000 hour MTBF and passed shock and vibration operation tests. It can be installed both vertically and horizontally without having thermal issues. AOpen DEX 7150 adapts mobile CPU, chipset and memory to reduce heat. With less heat, the speed of the fans will drop and create a silent working condition.
|
|
Accessory in Box ...
|
 |
.jpg)
|
Energy saving and cost reducing
|
 |
  |
| Others: | Colour Black; Housing: steel and aluminum |
| Chipset: | Intel QM77 |
| CPU Support: | Socket G2/rPGA988B |
| Installed CPU: | Intel® Core™ i3-3110M(2x2.20GHz) |
| Memory Support: | DDR3 SO-DIMM x 2 1333/1600MHz (do 16 GB) |
| Installed Memory: | 4GB RAM Kingston SODIMM DDR3 1333MHz CL9 (or Samsung) |
| Graphic Card: | Intel® HD Graphics 4000 |
| Storage (HDD) Support: | 2.5" SATA II/III HDD up to 500GB/ SSD up to 256GB |
| Installed Storage (HDD): | 320GB 2,5'' SATAII 5400 8MB cache |
| CD/DVD Drive: | ----- |
| LAN: | IntelGB Ethernet-82583V/ Intel GB Ethernet-W82579LM |
| Wireless LAN card: | No (Optional Yes) |
| Bluetooth: | ----- |
| 3G: | ----- |
| 4G LTE: | |
| TV Tuner: | No (Optional Yes) |
| Watch Dog Timer: | 1 ~ 255 sec/min |
| Front Panel (ports): | 2x USB 2.0 |
| Rear Panel (ports): | 4x USB 2.0, 2xUSB 3.0, Audio , 2x RJ-45, DC-in Jack, DVI-I(optional transition to HDMI), RS232, 2xDisplay PORT, eSATA, |
| Power: | 90W (19V, 4.74A) |
| Supported OS: | Microsoft Windows: XP/Vista/7 , Linux |
| Installed OS: | No (Optional Windows 7/Vista/XP) |
| Dimensions: | 200 x 200 x 65 mm |
| Weight: | 2.67 kg |
| Expansion: | WiFi 802.11 a/b/g/n , Bluetooth |
| Fanless: | Yes |
| Humidity: | 90% RH (40蚓 non-Condensing) |
| Temp: | -5 ~ 40蚓 (23 ~ 104蚌) |
| IP Norm: | ----- |
| Storage temperature: | -20 ~ 60蚓 (-4 ~ 140蚌) |
CURRENT PRICE |
|
| 3189.35 € | Net |
| 3922.90€ | Gross |
