DIGITAL ENGINE the series of products AOpen firm dedicate to industrial use ...
|
 |
 |
|
Resistance on damage & small size ...
|
|
The AOpen Digital Engine DE45-Pro is a rugged, high performance Intel-based system in a 252 (W)x 42.8 (H) x 165 (D)mm footprint that weighs less than 3,7 pounds.
|
|
Advenced technology ...
|
|
The AOpen MiniPC DEX2750 line offers Intel-based desktop products with a similar footprint and features an enclosure that balances ergonomics, size and function. Both systems include the Intel 945GSE / ICH7M chipset, one Mini PCI slot as well as extensive I/O that includes DVI, 2x COM(RS232),2x GB LAN, USB, audio and more. The systems have the ability to add up to 2GB of memory as well as a notebook hard drive or flash disk.
|
|
Using & interface ...
|
|
Front Panel : |
 |
|
Rear Panel :
|
|
|
|
|
|
|
Use ...
It many possibilites to mount Digital Engines - for example: in factory halls, with LCD / LED monitors, hipermarkets, shops, under table top and cars.
|
|
Recapitulation ... |
|

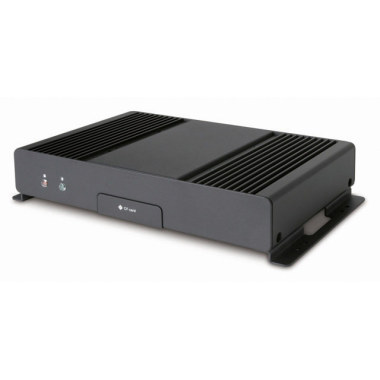

AOpen Digital Engine DEX2750 is a complete solution for Digital Signage, Projector PC, Media Player, and Vehicle PC. AOpen DEX2750 is a compact system of 1.75L with Intel 945GSE Express Chipset supporting Intel socket PBGA437 Atom N270 processors. The AOpen DEX2750 had 40,000 hour MTBF and passed shock and vibration operation tests. It can be installed both vertically and horizontally without having thermal issues. AOpen DEX2750 adapts mobile CPU, chipset and memory to reduce heat. With less heat, the speed of the fans will drop and create a silent working condition.
|
| Others: | FANLESS Thermal Module |
| Chipset: | Intel 945GSE / ICH7M |
| CPU Support: | Intel Atom N270 |
| Installed CPU: | Intel Atom N270 |
| Memory Support: | 1 x SODIMM DDR II, Up to 2GB |
| Installed Memory: | None |
| Graphic Card: | Intel GMA 950GSE |
| Storage (HDD) Support: | 1 x 2,5'' SATAII HDD, Up to 750GB |
| Installed Storage (HDD): | None |
| CD/DVD Drive: | None |
| LAN: | 10/100/1G Intel GbE LAN controller |
| Wireless LAN card: | No (Optional Yes) |
| Bluetooth: | |
| 3G: | |
| 4G LTE: | |
| TV Tuner: | No (Optional Yes) |
| Watch Dog Timer: | |
| Front Panel (ports): | CF card reader |
| Rear Panel (ports): | 4x USB 2.0, 2x LAN RJ45 (10/100/1G LAN), 1x Audio Jack Stereo (Line In, Line Out), 1x DVI, 2x COM (RS232) |
| Power: | External AC adapter |
| Supported OS: | Windows XP, Windows Vista, 7 |
| Installed OS: | None |
| Dimensions: | 252 (W)x 42.8 (H) x 165 (D) mm |
| Weight: | |
| Expansion: | Hybrid TV Tuner DVB-T (analog + digital + FM), , WiFi 802.11 a/b/g/n, Card rider CF, Handles and Adapters |
| Fanless: | |
| Humidity: | |
| Temp: | |
| IP Norm: | |
| Storage temperature: |
CURRENT PRICE |
|
| 1833.64 € | Net |
| 2255.38€ | Gross |
