MiniPC Industrial AOpen DES4100 v.2
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/minipc-przemyslowy-aopen-des4100-v.2-produkt-87472.html

MiniPC Industrial AOpen DES4100 v.2

MiniPC Industrial AOpen DES4100




Industrial MiniPC

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MiniPC Industrial AOpen DES4100
is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go topdo góry   menu… menu

Description


Housing dimension are 273 (W) x155 (L) x35 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 1.275 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3L memory. Integrated AMD RADEON 8330E video and audio Realtek HD Audio codec ALC269Q allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 320GB HDD.

MiniPC Industrial AOpen DES4100

go topdo góry   menu… menu


Communication & Connectors

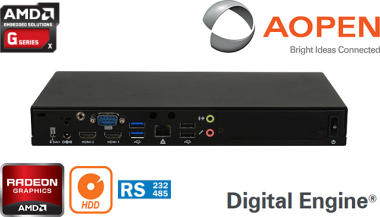

Integrated card - Realtek 8111DP GbE LAN (optional WiFi module) allow connection to the network. The computer is equipped with: one LAN port, three COM(RS232) ports, one COM(RS485) port, two USB 3.0 ports, four USB 2.0 ports, two HDMI outputs one way audio, one microphone input.


MiniPC Industrial AOpen DES4100

MiniPC Industrial AOpen DES4100


MiniPC Industrial AOpen DES4100

Cooling

The MiniPC Industrial AOpen DES4100 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go topdo góry   menu… menu

Application

      MiniPC Industrial AOpen DES4100  of these are based on high-performance processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of AOpen models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages devices are: small size, performance and energy efficiency. An extra pair of brackets at tMiniPC Industrial AOpen DES4100he bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

MiniPC Industrial AOpen DES4100


Areas of use of industrial MiniPC

Digital Engine

MiniPC Industrial AOpen DES4100

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
MiniPC Industrial AOpen DES4100
MiniPC Industrial AOpen DES4100

Magazine

MiniPC Industrial AOpen DES4100 by to six USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC Industrial AOpen DES4100 can be used on transport market, in cars, through adapting him to operate with a supply 12/19V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

MiniPC Industrial AOpen DES4100

MiniPC Industrial AOpen DES4100



MiniPC Industrial AOpen DES4100



Specifications


    Dimension





   H: 35 mm

   L: 155 mm

   W: 273 mm

   Weight    1,275kg
   Processor
   AMD Quad Core GX-420CA (4x2.0 GHz)
   Chipset
   AMD G series
   RAM Memory
   4GB DDR3L, Dual Channel
   Graphic Card
   AMD RADEON 8330E
   Sound Card
   Realtek HD Audio codec ALC269Q
   WLAN
   Realtek 8111DP GbE LAN
   Connectors

   3x COM(RS232)

   1x COM(RS485)

   1x wyjście 12V DC_JACK

   4x USB 2.0

   2x USB 3.0

   2x RJ-45

   1x wyjście Audio

   2x HDMI

   1x Mic

MiniPC Industrial AOpen DES4100


Others: Colour Black, Aluminum
Chipset: Intel chipset
CPU Support: AMD G series
Installed CPU: AMD Quad Core GX-420CA (4x2.0 GHz)
Memory Support: DDR3 (can up to 16GB), Dual Channel
Installed Memory: 4GB DDR3L (Dual Channel 2x 2GB)
Graphic Card: AMD RADEON 8330E
Storage (HDD) Support: 320GB HDD
Installed Storage (HDD): 320GB HDD
CD/DVD Drive: No
LAN: Realtek 8111DP GbE LAN
Wireless LAN card: No (opctional Yes)
Bluetooth: No
3G: No (opctional Yes)
4G LTE:
TV Tuner: No
Watch Dog Timer: 0~255 sec
Front Panel (ports): Power, HDD indicator LED
Rear Panel (ports): 1x Audio,
1x Mic,
3x COM(RS232),
1x COM(RS485),
1x RJ-45,
2x HDMI,
1x DC-IN 12/19V,
4x USB 2.0,
2x USB 3.0
Power: 12V
Supported OS: Microsoft Windows: 7/8.1
Installed OS: -----
Dimensions: 273 x 155 x35 mm
Weight: 1.275 kg
Expansion: -----
Fanless: No
Humidity: 0 ~ 90%
Temp: 0 - 40 ℃
IP Norm: -----
Storage temperature: -20 - 60 ℃


CURRENT PRICE
2258.34 € Net
2777.76€ Gross
