DIGITAL ENGINE the series of products AOpen firm dedicate to industrial use ...
|
 |
 |
|
Resistance on damage & small size ...
|
|

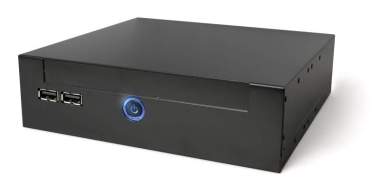

The AOpen Digital Engine DE965-Pro is a rugged, high performance Intel-based system in a 6.5W x 6.3H x 1.89D footprint that weighs less than 3 pounds.
|
|
Environment specifications:
Operating Temperature: -10°C ~ 55°C
Non-Operating Temperature:-30°C ~ 65°C
Humidity: 95% RH(55℃non-condensed)
Operating Vibration: 0.45Grms, 10 ~ 500Hz
Non-Operating Vibration: 2Grms, 5 ~ 500Hz
Operating Shock: Half Sine, 8G, 11ms
Non-Operating Shock: Half Sine, 50G, 11ms
Drop test: IEC 60068-2-32
|
 |
|
Advenced technology ...
|
|
The AOpen MiniPC DE965-Pro line offers Intel-based desktop products with a similar footprint and features an enclosure that balances ergonomics, size and function. Both systems include the Intel 965GM / ICH8M chipset, one Mini PCI slot as well as extensive I/O that includes DVI, S-Video, GB LAN, USB, HD audio and more. The systems have the ability to add up to 4GB of memory as well as a notebook hard drive or flash disk.
|
|
Using & interface ...
|
|
Front Panel : |
 |
|
Rear Panel :
|
 |
|
|
|
|
Use ...
For thanks of use optional handles and adapters, it many possibilites to mount Digital Engines - for example: in factory halls, with LCD / LED monitors, hipermarkets, shops, under table top and cars.
|
 |
|
Recapitulation ... |
|
AOpen Digital Engine DE965-Pro is a complete solution for Digital Signage, Projector PC, Media Player, and Vehicle PC. AOpen DE965-Pro is a compact system of 1.25L with Intel 965GM Express Chipset supporting Intel socket P Core 2 Duo processors. The AOpen DE965-Pro had 40,000 hour MTBF and passed shock and vibration operation tests. It can be installed both vertically and horizontally without having thermal issues. AOpen DE965-Pro adapts mobile CPU, chipset and memory to reduce heat. With less heat, the speed of the fans will drop and create a silent working condition.
|
|
Accessory in Box ...
|
|
Converter board
|
HDMI to DVI cable
|
 |
 |
|
(90Watt) Adapter
|
Power cord
|
 |
 |
|
|
|
Energy saving and cost reducing
 |
  |
| Others: | None |
| Chipset: | Intel 965GM / ICH8M |
| CPU Support: | Socket P - Intel Core 2 Duo |
| Installed CPU: | None |
| Memory Support: | 2 x SODIMM DDR2, Up to 4GB |
| Installed Memory: | None |
| Graphic Card: | Intel GMA X3100MHD |
| Storage (HDD) Support: | 1 x 2,5'' - Up to 750GB |
| Installed Storage (HDD): | None |
| CD/DVD Drive: | None |
| LAN: | 10/100/1G Intel GbE LAN controller |
| Wireless LAN card: | No (Optional Yes) |
| Bluetooth: | |
| 3G: | |
| 4G LTE: | |
| TV Tuner: | No (Optional Yes) |
| Watch Dog Timer: | |
| Front Panel (ports): | 2 x USB 2.0 |
| Rear Panel (ports): | 2x USB 2.0, LAN RJ45 (10/100/1G LAN),1 x Audio Jack Stereo (Line In, Line Out), 1 x HDMI (cable to DVI in Box) , 2 x VGA , 1 x COM (RS232) |
| Power: | External AC adapter |
| Supported OS: | Windows XP, Windows Vista |
| Installed OS: | None |
| Dimensions: | 166mm x 48mm x 157mm |
| Weight: | |
| Expansion: | Hybrid TV Tuner DVB-T (analog + digital + FM), , WiFi 802.11 a/b/g/n, Card rider CF, Handles and Adapters |
| Fanless: | |
| Humidity: | |
| Temp: | |
| IP Norm: | |
| Storage temperature: |
CURRENT PRICE |
|
| 1813.50 € | Net |
| 2230.61€ | Gross |
