DIGITAL ENGINE the series of products AOpen firm dedicate to industrial use ...
|
 |
 |
|
Resistance on damage & small size ...
|
|
The AOpen Digital Engine DE896-FL is a rugged, high performance Intel-based system in a 6.5W x 6.3H x 1.89D footprint that weighs less than 3 pounds.
|
 |
|
Advenced technology ...
|
|
The AOpen MiniPC DE896-FL line offers VIA-based desktop products with a similar footprint and features an enclosure that balances ergonomics, size and function. Both systems include the VIA CN896 / VIA VTB8237S chipset, one Mini PCI slot as well as extensive I/O that includes VGA, COM(RS232), GB LAN,4x USB, audio and more. The systems have the ability to add up to 2GB of memory as well as a notebook hard drive or flash disk.
|
|
Using & interface ...
|
|
Front Panel : |
 |
|

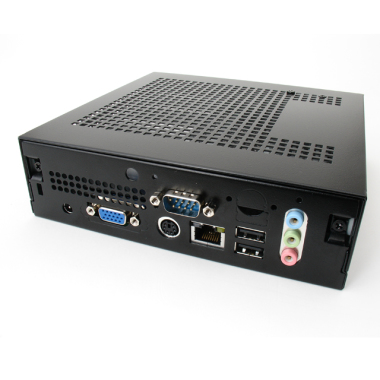

Rear Panel :
|
|
|
|
|
|
|
Use ...
For thanks of use optional handles and adapters, it many possibilites to mount Digital Engines - for example: in factory halls, with LCD / LED monitors, hipermarkets, shops, under table top and cars.
|
 |
|
Recapitulation ...
|
 |
 |
|
AOpen Digital Engine DE896-FL is a complete solution for Digital Signage, Projector PC, Media Player, and Vehicle PC. AOpen DE896-FL is a compact system of 1.25L with Intel 945GSE Express Chipset supporting VIA(1500Mhz) processors. The AOpen DE896-FL had 40,000 hour MTBF and passed shock and vibration operation tests. It can be installed both vertically and horizontally without having thermal issues. AOpen DE896-FL adapts mobile CPU, chipset and memory to reduce heat. With less heat, the speed of the fans will drop and create a silent working condition.
|
| Others: | None |
| Chipset: | VIA CN896 / VIA VTB8237S |
| CPU Support: | VIA 1.5 GHz CZ |
| Installed CPU: | VIA 1.5 GHz CZ |
| Memory Support: | 1 x SODIMM DDRII, Up to 2GB |
| Installed Memory: | None |
| Graphic Card: | VIA Chrome9 HC DX9 IGP |
| Storage (HDD) Support: | 1 x 2,5'' SATAII HDD, Up to 750GB |
| Installed Storage (HDD): | None |
| CD/DVD Drive: | None |
| LAN: | 10/100/1G Intel GbE LAN controller |
| Wireless LAN card: | No (Optional Yes) |
| Bluetooth: | |
| 3G: | |
| 4G LTE: | |
| TV Tuner: | No (Optional Yes) |
| Watch Dog Timer: | |
| Front Panel (ports): | 2 x USB 2.0 |
| Rear Panel (ports): | 2x USB 2.0, 1x LAN RJ45 (10/100/1G LAN), 1x Audio Jack Stereo (Line In, Line Out), 1x VGA, 1x COM (RS232), 1x PS2 |
| Power: | External AC adapter |
| Supported OS: | Windows XP, Windows Vista |
| Installed OS: | None |
| Dimensions: | 166mm x 48mm x 157mm |
| Weight: | |
| Expansion: | Hybrid TV Tuner DVB-T (analog + digital + FM), WiFi 802.11 a/b/g/n, Handles and Adapters |
| Fanless: | |
| Humidity: | |
| Temp: | |
| IP Norm: | |
| Storage temperature: |
CURRENT PRICE |
|
| 1433.04 € | Net |
| 1762.64€ | Gross |
