DIGITAL ENGINE the series of extreme products AOpen firm dedicate to industrial use ...
|
 |
 |
|
Resistance on damage & small size ...
|
|

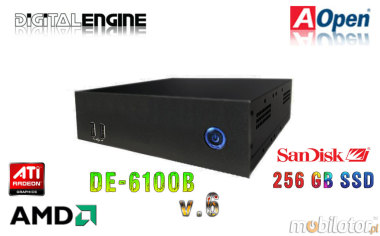

The AOpen Digital Engine DE6100B is a rugged, high performance Intel-based system in a 166 (W)x 48 (H) x 157 (D)mm footprint that weighs less than 1,12 kg.
|
|
Advenced technology ...
|
|
Using the latest technology Digital Engine is designed for continuous multi-tasking operating with low power consumption (90W). An important advantage is the effective combination of small size with a significant potential for the use of high-performance processor family AMD Quad core R-464L (4x2.3GHz), chipset (AMD A70M) and expandable DDR3 memory (up to 16GB). Integrated audio-visual application allows you to play (video, audio). Disk space offers available (up to) 500GB HDD or 256GB SSD.
Realtek 10/100/1000 Gigabit Ethernet or WiFi adapter (optional) to connect the device to the network. The computer is equipped with: LAN connector, one COM port (RS232), four USB 2.0 ports, two USB 3.0 ports, two HDMI outputs, one Display Port two audio inputs, and optional WiFi, Bluetooth. |
.jpg) |
 |
Your system's performance will never disappoint thanks to the latest DDR3 1333/1600MHz system memory providing greater memory bandwidth for performance that will never lag behind. Max up to 16GB!
|
|
Using & interface ...
|
|
Front Panel : |
.jpg) |
|
Rear Panel :
|
|
|
|
|
|
|
Use ...
It many possibilites to mount Digital Engines - for example: in factory halls, with LCD / LED monitors, hipermarkets, shops, under table top and cars.
.jpg) |
|
Recapitulation ... |
|
AOpen Digital Engine DE6100B is rightly regarded as a model of industrial MiniPC for use in outdoor environments. This model is ideal for industry. It's super-efficient, reliable, and no other, and in every respect optimally adapted to the most severe operating conditions. Shock, shock, cold, heat, dust and moisture do not represent any danger for him.
|
.jpg) |
| Others: | Colour Black, Case: Steel |
| Chipset: | AMD A70M |
| CPU Support: | Socket FS1r2 - AMD Quad core R-464L |
| Installed CPU: | AMD Quad core R-464L 4x2.3GHz |
| Memory Support: | DDR3 SO-DIMM x 2 1333/1600MHz (do 16GB) |
| Installed Memory: | 16GB RAM (2x8GB) Kingston Xyperx SODIMM DDR3 1600MHz CL9 |
| Graphic Card: | AMD Radeon HD 7660G |
| Storage (HDD) Support: | 2.5" SATA II/III HDD up to 500GB/ SSD up to 256GB |
| Installed Storage (HDD): | 256GB SSD SATA3 SanDisk 2.5'' |
| CD/DVD Drive: | ----- |
| LAN: | Realtek GbE LAN controller RTL8111E-VL 10/100/1000 |
| Wireless LAN card: | No (Optional Yes) |
| Bluetooth: | ----- |
| 3G: | ----- |
| 4G LTE: | |
| TV Tuner: | ----- |
| Watch Dog Timer: | 1 ~ 255 sec/min |
| Front Panel (ports): | 2x USB 2.0 |
| Rear Panel (ports): | 2x USB 2.0, 2xUSB 3.0, 2xHDMI, Audio , RJ-45, DC-in Jack, Display Port, RS232, |
| Power: | 90W (19V, 4.74A) |
| Supported OS: | Microsoft Windows: XP/Vista/7 , Linux |
| Installed OS: | No (Optional Windows 7/Vista/XP) |
| Dimensions: | 166 x 157 x 48 mm |
| Weight: | 1,12kg |
| Expansion: | WiFi card, HSDPA module,Bluetooth |
| Fanless: | ----- |
| Humidity: | 95% RH (50 蚓 non-Condensing) |
| Temp: | 0 ~ 50蚓 (32 ~ 122蚌) |
| IP Norm: | ----- |
| Storage temperature: | -30 ~ 60ºC (-22 ~ 140ºF) |
CURRENT PRICE |
|
| 4297.26 € | Net |
| 5285.63€ | Gross |
