DIGITAL ENGINE the series of extreme products AOpen firm dedicate to industrial use ...
|
 |
 |
|
Resistance on damage & small size ...
|
|

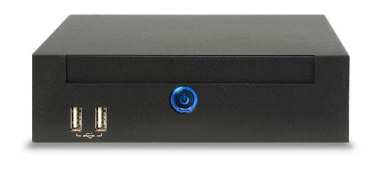

The AOpen Digital Engine DE57-HA is a rugged, high performance Intel-based system in a 166 (W)x 48 (H) x 157 (D)mm footprint that weighs less than 2,68 pounds.
|
|
Advenced technology ...
|
The AOpen MiniPC DE57-HA line offers Intel-based desktop products with a similar footprint and features an enclosure that balances ergonomics, size and function. Both systems include the Intel Processors I3, i5, i7 and Intel QM57 chipset, as well as extensive I/O that includes HDMI, DVI, COM(RS232), GB LAN, USB, audio and more. The systems have the ability to add up to 8GB of memory as well as a notebook hard drive or flash disk.
|
 |
 |
Your system's performance will never disappoint thanks to the latest DDR3 1066MHz system memory providing greater memory bandwidth for performance that will never lag behind. Max up to 8GB!
|
|
Using & interface ...
|
|
Front Panel : |
 |
|
Rear Panel :
|
|
|
|
|
|
|
Use ...
It many possibilites to mount Digital Engines - for example: in factory halls, with LCD / LED monitors, hipermarkets, shops, under table top and cars.
 |
|
Recapitulation ... |
|
AOpen Digital Engine DE57-HA is a complete solution for Digital Signage, Projector PC, Media Player, and Vehicle PC. AOpen is a compact system of 1.25L with Intel Core i3, i5, i7 supporting Intel socket RPGA988A. The DE57-HA had 40,000 hour MTBF and passed shock and vibration operation tests. It can be installed both vertically and horizontally. Adapts mobile CPU, chipset and memory to reduce heat. With less heat, the speed of the fans will drop and create a silent working condition.
|
 |
| Others: | |
| Chipset: | Intel QM57 |
| CPU Support: | Intel Core i3, i5, i7 |
| Installed CPU: | Intel Core i5 (3M Cache, 2.40 GHz) |
| Memory Support: | 1 x SODIMM DDR III, Up to 8GB |
| Installed Memory: | 4GB SODIMM DDRIII |
| Graphic Card: | Intel QM57 |
| Storage (HDD) Support: | 1 x 2,5'' SATAII SSD / HDD, Up to 750GB |
| Installed Storage (HDD): | 320GB HDD 2.5`` SATAII |
| CD/DVD Drive: | None |
| LAN: | 10/100/1G Intel GbE LAN controller |
| Wireless LAN card: | No (Optional Yes) |
| Bluetooth: | |
| 3G: | |
| 4G LTE: | |
| TV Tuner: | No (Optional Yes) |
| Watch Dog Timer: | |
| Front Panel (ports): | USB 2.0 Port x 2 |
| Rear Panel (ports): | 2x USB 2.0, LAN RJ45 (10/100/1G LAN), 1x Audio Jack Stereo (Line In, Line Out), DVI, HDMI, COM (RS232) |
| Power: | External AC adapter |
| Supported OS: | Windows XP, Windows Vista, 7 |
| Installed OS: | None |
| Dimensions: | 166 (W)x 48 (H) x 157 (D) mm / 1.22Kg |
| Weight: | |
| Expansion: | Hybrid TV Tuner DVB-T (analog + digital + FM), , WiFi 802.11 a/b/g/n |
| Fanless: | |
| Humidity: | |
| Temp: | |
| IP Norm: | |
| Storage temperature: |
CURRENT PRICE |
|
| 2794.34 € | Net |
| 3437.04€ | Gross |
