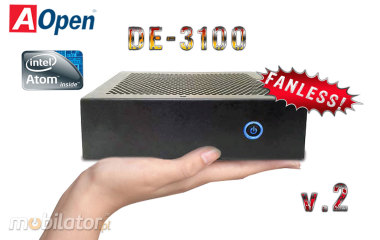

DIGITAL ENGINE the series of products AOpen firm dedicate to industrial use ...
|
 |
 |
|
Resistance on damage & small size ...
|
|
DE3100 enclosure with dimensions 166 (W) x157 (L) x48 (H) mm made of high quality steel provides a very high resistance to mechanical devices. This model with a weight of just 1.08 kg, is at all times ready for operation even in extreme conditions such as dust, heat, cold.
|
|
Advenced technology ...
|
|
By using the AOpen DE3100 the latest technology Digital Engine is designed for continuous multi-tasking operating with low power consumption (65W). An important advantage is the effective combination of small size with a significant potential for the use of processors with Intel Atom D2550 1.86GHz, Chipset Intel ® NM10 Chipset and DDR memory expandable (up to 4GB). Integrated audio-visual application allows you to play (video, audio). Disk space offers available (up to) 500GB HDD or 128GB SSD.
|
.jpg)
Realtek 10/100/1000 Gigabit Ethernet or WiFi adapter (optional) to connect the device to the network. The computer is equipped with: LAN connector, two COM ports (RS232), one VGA output, three USB 2.0 ports, one HDMI output, two audio inputs, and optional WiFi, Bluetooth.
|
|
Using & interface ...
|
|
Front Panel : |
.jpg) |
|
Rear Panel :
|
|
|
|
|
|
|
Use ...
For thanks of use optional handles and adapters, it many possibilites to mount Digital Engines - for example: in factory halls, with LCD / LED monitors, hipermarkets, shops, under table top and cars.
|
 |
|
Recapitulation ... |
|
AOpen Digital Engine DE3100 is rightly regarded as a model of industrial MiniPC for use in outdoor environments. This model is ideal for industry. It is solid, like no other, and in every respect optimally adapted to the most severe operating conditions. Shock, shock, cold, heat, dust and moisture do not represent any danger for him.
|
| Others: | Colour Black, Case: Steel |
| Chipset: | Intel® NM10 Chipset |
| CPU Support: | Socket FCBGA559 - Intel® Atom™ Processor D2550 (1M Cache, 1.86 GHz) |
| Installed CPU: | Intel® Atom™ Procesor D2550 1.86 GHz |
| Memory Support: | DDR3 SO-DIMM x 2 1066/1333 MHz (do 4 GB) |
| Installed Memory: | 4 GB RAM Kingston SODIMM DDR3 1333MHz CL7 (or Samsung) |
| Graphic Card: | Intel® GMA3650 |
| Storage (HDD) Support: | 2.5" SATA II/III HDD up to 500GB/ SSD up to 128GB |
| Installed Storage (HDD): | 500GB HDD 2,5" SATAII 7200 16MB cache |
| CD/DVD Drive: | ----- |
| LAN: | Realtek Gigabit Ethernet 10/100/1000Mbps |
| Wireless LAN card: | No (Optional Yes) |
| Bluetooth: | ----- |
| 3G: | ----- |
| 4G LTE: | |
| TV Tuner: | ----- |
| Watch Dog Timer: | 1 ~ 255 sec/min |
| Front Panel (ports): | ----- |
| Rear Panel (ports): | 3x USB 2.0, HDMI, Audio , RJ-45, DC-in Jack, VGA, 2xRS232, |
| Power: | 65W (19V, 3.42A) |
| Supported OS: | Microsoft Windows: XP/Vista/7 , Linux |
| Installed OS: | No (Optional Windows 7/Vista/XP) |
| Dimensions: | 166 x 157 x 48 mm |
| Weight: | 1,08kg |
| Expansion: | WiFi card, HSDPA module,Bluetooth |
| Fanless: | Yes |
| Humidity: | 90% RH |
| Temp: | 0 ~ 40°C (32 ~ 104°F) |
| IP Norm: | ----- |
| Storage temperature: | -20 ~ 60°C (-4 ~ 140°F) |
CURRENT PRICE |
|
| 1966.97 € | Net |
| 2419.37€ | Gross |
