DIGITAL ENGINE the series of products AOpen firm dedicate to industrial use ...
|
 |
 |
|
Resistance on damage & small size ...
|
|

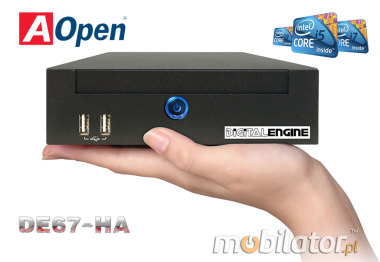

The AOpen Digital Engine DE67-HA is a rugged, high performance Intel-based system in a 6.5W x 6.3H x 1.89D footprint that weighs less than 3 pounds.
|
|
Environment specifications:
Operating Temperature: -10°C ~ 55°C
Non-Operating Temperature:-30°C ~ 65°C
Humidity: 95% RH(55℃non-condensed)
Operating Vibration: 0.45Grms, 10 ~ 500Hz
Non-Operating Vibration: 2Grms, 5 ~ 500Hz
Operating Shock: Half Sine, 8G, 11ms
Non-Operating Shock: Half Sine, 50G, 11ms
Drop test: IEC 60068-2-32
|
.jpg) |
|
Advenced technology ...
|
|
Using the latest technology Digital Engine is designed for continuous multi-tasking operating with low power consumption (90W). An important advantage is the effective combination of small size with considerable potential for use processors from Intel (Intel ® Core ™ i3-2330M / Intel ® Core ™ i5-2540M / Intel ® Core ™ i7-2620M / Intel ® Core ™ i7-2670QM) chipset (Intel QM67) and DDRIII memory expandability (up to 8GB). Integrated audio-visual application allows you to play (video, audio) in HD quality. Disk space offers available (up to) 500GB or optional use of a very fast 256GB SSD for storage.
|
.jpg)
|
Using & interface ...
|
|
Front Panel : |
.jpg) |
|
Rear Panel :
|
.jpg) |
|
|
|
|
Use ...
For thanks of use optional handles and adapters, it many possibilites to mount Digital Engines - for example: in factory halls, with LCD / LED monitors, hipermarkets, shops, under table top and cars.
|
 |
|
Recapitulation ... |
|
AOpen Digital Engine DE67-HA is a complete solution for Digital Signage, Projector PC, Media Player, and Vehicle PC. AOpen DE67 is a compact system of 1.25L with Intel QM67 Express Chipset supporting Intel socket P Core 2 Duo/Penryn processors. The AOpen DE67 had 40,000 hour MTBF and passed shock and vibration operation tests. It can be installed both vertically and horizontally without having thermal issues. AOpen DE67 adapts mobile CPU, chipset and memory to reduce heat. With less heat, the speed of the fans will drop and create a silent working condition.
|
|
Accessory in Box ...
|
- L Type Holder : X1
- DVI to VGA converter : X1
- 90W PWR 20V (EPA5)Adapter x 1
- Power Cord x 1
- HDMI To DVI Cable (1500mm) x 1
- Power Clamp x 1
- Utilities & Drivers CD x 1
- Assembly Guide x 1
|
|
|
Energy saving and cost reducing
 |
  |
| Others: | Colour Black, Case: Steel |
| Chipset: | Intel QM67 |
| CPU Support: | Socket FCBGA1023/ PPGA988 - Intel Core i3/i5/i7 |
| Installed CPU: | No (Optional Yes) |
| Memory Support: | DDR3 SO-DIMM x 2 800/1066/1333MHz (up to 8 GB) |
| Installed Memory: | No (Optional Yes) |
| Graphic Card: | Intel® HD Graphics 3000 |
| Storage (HDD) Support: | 2.5" SATA II/III HDD up to 500GB/ SSD up to 256GB |
| Installed Storage (HDD): | No (Optional Yes) |
| CD/DVD Drive: | No (Optional Yes- Multicombo DVD/CD) |
| LAN: | Realtek Gigabit Ethernet/ 10/100/1000 |
| Wireless LAN card: | No (Optional Yes) |
| Bluetooth: | ----- |
| 3G: | ----- |
| 4G LTE: | |
| TV Tuner: | ----- |
| Watch Dog Timer: | 1 ~ 255 sec/min |
| Front Panel (ports): | 2x USB 2.0 |
| Rear Panel (ports): | 2x USB 2.0, 2xUSB 3.0, HDMI, Audio , Rk, DVI-I, RS232,J-45, DC-in Jac |
| Power: | 90W (20V, 4.5A) |
| Supported OS: | Microsoft Windows: XP/Vista/7 , Linux |
| Installed OS: | No (Optional Windows 7/Vista/XP) |
| Dimensions: | 166 x 157 x 48 mm |
| Weight: | 1,2kg |
| Expansion: | MultiCombo DVD/CD, WiFi card, HSDPA module |
| Fanless: | ----- |
| Humidity: | 95% RH (50 °C non-Condensing) |
| Temp: | 0 ~ 50°C (32 ~ 122°F) |
| IP Norm: | ----- |
| Storage temperature: | -30 ~ 60°C (-22 ~ 140°F) |
CURRENT PRICE |
|
| 2147.01 € | Net |
| 2640.82€ | Gross |
