The bar code scanner is a device that allows data read barcodes from boxes, equipment, documents and all the places where these codes were implemented. MobiScan products are of high quality and the ability to trouble-free operation for many years.
|
|
|||||||||||||||||||||
Description
MobiScan MS-97 is equipped with a Li-Ion battery with sufficient capacity 350mAh, which allows the scanner to work about eight hours in scan mode (assuming one scan every five seconds). |
Communication |
The present device has a built-1D barcode reader that connecting via Bluetooth with your device. It provides information such as the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data.
Designed to be tailored to different applications, |
|
Portable (radio and bluetooth-arid) barcode readers using laser technology are comfortable and easy to use, with wide possibilities to set parameters. Enable automatic operation and manual. Read codes with different contrasts with a distance of several centimeters. The use of wireless communication (Bluetooth or radio) offer a range of up to 10m from the computer.
The device uses the HID interface
To scanner devices need to use the right software to a serial port (RS-232) collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver.
Supported Bluetooth profiles SPP system.
SPP defines how to set up virtual serial ports (RS-232) and connect two devices via Bluetooth. SPP is a serial port profile. It is used in various devices (eg PC, GPS, industrial equipment).
|
|
|
|
||||||||||||||||||||||||||||||
| Supported Operating Systems: | Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Linux |
| Internal memory: | - |
| Operation Voltage: | 3.7V - DC |
| Reading indicator: | 1D CCD |
| Dimensions: | 65 x 24 x 18 mm |
| Weight: | 24.6 g |
| Battery: | 350 mAh Li-ion |
| Housing material: | Plastic |
| Scan rate: | 240 scan/sec |
| Light source: | 625 nm visible red LED |
| Resolution: | 5 mil / 0.127 mm (PCS=90%) |
| Communication distance: | 10 m |
| Readable codes: | UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar |
| Sensor: | 1000 pixels CMOS Sensor |
| Scan Angle: | 46⁰ |
| Print Contrast Ratio: | 30% |
| Scan range: | CODE-39 : Readable @ 5 mil CODE-39 : 30~140mm @ 13 mil CODE-39 : 35~185mm @ 20 mil |
| Cable Type: | MiniUSB |
| Battery Life: | 8 h |
| Communication: | Bluetooth 4.0 / 2.0 |
| Interface/ Pro le: | HID/ SPP |
| Operating Temperature: | 0°C ~ 50°C |
| Storage Temperature: | -20°C ~ 60°C |
| Relative Humidity: | 20% ~ 85%, non-condensing |
| Resistance IP: | - |
| Drop test: | - |
| Barcodes 1D: | Barcodes 1D: |
| 2 of 5 Chinese: | No |
| 2 of 5 Discrete: | No |
| 2 of 5 IATA: | Yes |
| 2 of 5 Industrial: | Yes |
| 2 of 5 Interleaved: | Yes |
| 2 of 5 Matrix: | Yes |
| 2 of 5 Standard: | Yes |
| BC - 412: | No |
| Bookland EAN: | No |
| Codabar: | Yes |
| Codabar - NW7: | Yes |
| Code - 11: | Yes |
| Code - 11(USD-8): | No |
| Code - 32: | Yes |
| Code - 39: | Yes |
| Code - 39 Extended (full ASCII): | Yes |
| Code - 39 Trioptic : | No |
| Code - 93: | Yes |
| Code - 128 (A, B, C): | Yes |
| EAN-8: | Yes |
| EAN-13: | Yes |
| EAN -128 / UCC-128: | Yes |
| GS1 DataBar: | Yes |
| Intelligent Mail: | No |
| ISBN: | Yes |
| ISBT - 128: | No |
| ISSN: | Yes |
| ITF-6: | No |
| ITF-14: | Yes |
| KIX code: | No |
| Matrix 25: | Yes |
| MSI: | Yes |
| MSI - Plessey: | Yes |
| Pharmacode - One Track: | No |
| Pharmacode - Two Track: | No |
| Planet: | No |
| Plessey: | Yes |
| Post - Australian (4-State Postal Code): | No |
| Post - China (4-State Postal Code): | No |
| Post - Japanese (4-State Postal Code): | No |
| Post - Singapore (4-State Postal Code): | No |
| PostNET: | No |
| Royal Mail (RM-4SCC): | No |
| Telepen Code: | Yes |
| UK/Plessey: | Yes |
| UPC - A: | Yes |
| UPC - E: | Yes |
| UPC - E1: | Yes |
| Barcodes 2D: | Barcodes 2D: |
| Aztec: | No |
| Composite code: | No |
| DataMatrix: | No |
| MaxiCode: | No |
| Micro PDF 417: | No |
| Micro QR Code : | No |
| PDF 417: | No |
| QR Code : | No |
| RSS: | No |
| TLC-39: | No |
CURRENT PRICE |
|
| 728.71 € | Net |
| 896.31€ | Gross |
.jpg)

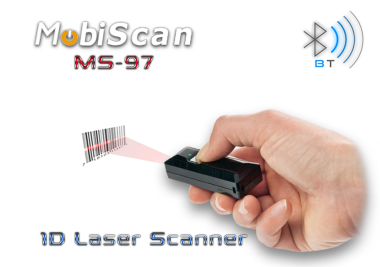

MS-97 intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers and logistics, quality controllers and inspectors of manufacturing processes and all those who work in need of cataloging and storing the information read from the barcode.
The next generation of mini scanner surprises his appearance. It reminds pendrive. This ergonomic, compact and extremely lightweight barcode reader with appropriate surface texture provides a firm grip and reduces hand fatigue with long hours..jpg)
.jpg)
wireless (Bluetooth) barcode scanner can be compatible with Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8 and Linux. Users can send data directly to a PC or in real time to mobile devices.
.jpg)
.jpg)
.jpg){kind=small}
Barcode readers allow you to in the bar code read and send to your database. We offer high quality device for reading bar codes that work flawlessly even in the harshest industrial environments..jpg)
