The bar code scanner is a device that allows data read barcodes from boxes, equipment, documents and all the places where these codes were implemented. RIOTEC products are of high quality and the ability to trouble-free operation for many years.
|
|
|||||||||||||||||||
Description
|
Communication |

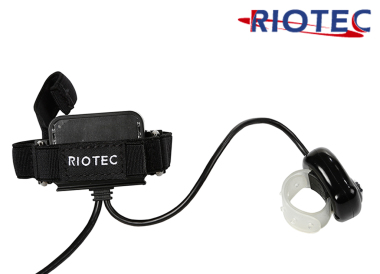

.jpg) Mini scanner has a built-in 1D barcode reader, who through the USB device provides information on, among others, the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data.
Designed to be tailored to different applications, barcode scanner can be compatible with Android. Users can send real-time data to smartphones and tablets. |
|
Portable (USB) barcode readers through the use of laser read-out techniques are convenient and easy to use and offer a wealth of configuration parameters. Enable automatic operation and manual. Read the codes with different contrasts with a distance of several centimeters. The scanner needs power to work, so that it is possible to read-out codes on the device that powers it.
The device uses the HID interface To scanner devices need to use the right software to a serial port (RS-232) collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver.
Most of the users is a (mistaken) belief that each scanner connected to a computer will send data, which can be further processed such as Notepad or MS Word. That's not true.To do so, use the scanner with the so-called keyboard emulation - connected to a computer via USB, but the scanner must be working in a standard USB HID (Human Interface Device) otherwise known as Low Speed USB also. In this way the data is sent to the computer in exactly the same way as does a USB keyboard. Hence the term emulation keyboard.If we have the right scanner (USB HID) - when barcode in fact our introduce to Word or Notepad in the form of digits or in any place where we can place the cursor or wpiswać text data. Scanners USB HID usually do not require additional drivers, as the drivers for HID devices are standard in Windows.
|
|
|
|
||||||||||||||||||||||||||||
| Supported Operating Systems: | Android |
| Internal memory: | - |
| Operation Voltage: | 65 mA max - Smart Phone / Tablet |
| Reading indicator: | 1D Laser |
| Dimensions: | 43 x 40 x 16 mm |
| Weight: | 48 g |
| Battery: | - |
| Housing material: | Plastic |
| Scan rate: | 100 scans/sec |
| Light source: | 650 nm Laser Diode |
| Resolution: | 0.1 mm ( 4 mils) - Code 39 |
| Communication distance: | - |
| Readable codes: | Code 128, coda bar, interleave 25, Industrial 25, matrix 25, China postage, UPC-A,UPC-E, EAN-13, EAN-8, MSI, PLESSEY, code11, code 39, code 32, code 93, TELEPEN ... (GS1, RSS is optional) |
| Sensor: | 1D 650 nm Laser |
| Scan Angle: | 38° |
| Print Contrast Ratio: | 45% or more |
| Scan range: | 4 miles Code 39: 80~105mm 5 miles Code 39: 75~135mm 13 miles Code 39: 65~250mm 20 miles Code 39: 65~350mm 40 miles Code 39: 85~520mm |
| Cable Type: | MiniUSB |
| Battery Life: | - |
| Communication: | MiniUSB (OTG) |
| Interface/ Pro le: | HID |
| Operating Temperature: | 0°C ~ 50°C |
| Storage Temperature: | -20°C ~ 60°C |
| Relative Humidity: | 10% ~ 85%, non-condensing |
| Resistance IP: | - |
| Drop test: | - |
| Barcodes 1D: | Barcodes 1D: |
| 2 of 5 Chinese: | No |
| 2 of 5 Discrete: | No |
| 2 of 5 IATA: | No |
| 2 of 5 Industrial: | Yes |
| 2 of 5 Interleaved: | Yes |
| 2 of 5 Matrix: | Yes |
| 2 of 5 Standard: | No |
| BC - 412: | No |
| Bookland EAN: | No |
| Codabar: | Yes |
| Codabar - NW7: | No |
| Code - 11: | Yes |
| Code - 11(USD-8): | No |
| Code - 32: | Yes |
| Code - 39: | Yes |
| Code - 39 Extended (full ASCII): | No |
| Code - 39 Trioptic : | No |
| Code - 93: | Yes |
| Code - 128 (A, B, C): | Yes |
| EAN-8: | Yes |
| EAN-13: | Yes |
| EAN -128 / UCC-128: | No |
| GS1 DataBar: | No |
| Intelligent Mail: | No |
| ISBN: | No |
| ISBT - 128: | No |
| ISSN: | No |
| ITF-6: | No |
| ITF-14: | No |
| KIX code: | No |
| Matrix 25: | No |
| MSI: | Yes |
| MSI - Plessey: | Yes |
| Pharmacode - One Track: | No |
| Pharmacode - Two Track: | No |
| Planet: | No |
| Plessey: | Yes |
| Post - Australian (4-State Postal Code): | No |
| Post - China (4-State Postal Code): | Yes |
| Post - Japanese (4-State Postal Code): | No |
| Post - Singapore (4-State Postal Code): | No |
| PostNET: | No |
| Royal Mail (RM-4SCC): | No |
| Telepen Code: | Yes |
| UK/Plessey: | No |
| UPC - A: | Yes |
| UPC - E: | Yes |
| UPC - E1: | No |
| Barcodes 2D: | Barcodes 2D: |
| Aztec: | No |
| Composite code: | No |
| DataMatrix: | No |
| MaxiCode: | No |
| Micro PDF 417: | No |
| Micro QR Code : | No |
| PDF 417: | No |
| QR Code : | No |
| RSS: | No |
| TLC-39: | No |
CURRENT PRICE |
|
| 672.86 € | Net |
| 827.62€ | Gross |
.jpg)
RIOTEC DC-9260 intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers, logistics specialists, quality auditors and inspectors of manufacturing processes and all those who work in need of cataloging and storing information sczytanych barcode .
.jpg)
After scanning the coded data can be transferred to a computer or a portable database. Mobile, quick and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes.
