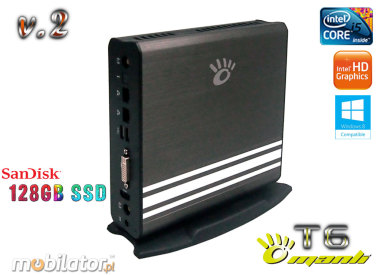

Mini PC Manli M-T6H34 v.2
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/mini-pc-manli-m-t6h34-v.2-produkt-86028.html

Mini PC Manli M-T6H34 v.2

MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6

Company Manli is a new distribution Mobilator s. It has achieved an excellent reputation as a manufacturer of computers MiniPC. Due to the high position of the products in the high-tech won the trust of many customers around the world.

manli-logo T6 Mini-PC minipc Nettop


MiniPC for the most demanding users

Manli T6 Mini-PC is designed for users who require the greatest amount of power and ease of use in such a small device. Aluminium elements and modern desing complete with incredible performance and optimized power consumption puts Manli M-T6H34 on one of the first places in the world rankings MiniPC.

MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6
Mini PC Manli M-T6H34 - v.2
Processor Intel® Core™ i5-3470T (2x2.9 GHz)
RAM 8GB Kingston SODIMM DDR3 1600MHz CL11 PC3-12800
Disk 128GB SSD SanDisk 2.5'' SATA3 (Read/Write: 490/350 MB/sec.)
Graphics Intel® HD 2500
Chipset H61
Communication WiFi 802.11n 150Mbps + Bluetooth 4.0
Dimensions 182.7x177.3x49mm
Other None

The detailed specification of the configuration available in the "Technical data"

go top… do góry menu… menu



Processor Intel® Core™ i5-3470T

MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6

New generation of Intel® Core™ i5-3470T

Manli Mini-PC is supported with Intel® Core™ i5-3470T, making it extremely energy efficient (35W), while retaining the high performance, as evidenced in Windows 7 or 8, which is dedicated for this device. Intel® Core™ i5-3470T is a dual-core processor with a frequency (2x2.9GHz) for small netbooks and MiniPC. It offers powerful integrated graphics Intel ® HD 2500 and dual channel DDR3-1600MHz.

Processors available in a series of MiniPC MANIL T6

Model R/W Frequency

Max. Frequency

L3 cache
 Max. GPU
 TDP
Intel® Core™ i3-3220T 2/4 2.8GHz 2.8 GHz 3 MB
 1.05 GHz
 35 Wat
Intel® Core™ i5-3470T 2/4 2.9 GHz 3.6 GHz 3 MB
 1.1 GHz
 35 Wat
Intel® Core™ i7-3770T
4/8 2.5 GHz 3.7 GHz 8 MB
 1.15 GHz
 45 Wat

MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6

New series of Intel® HD 2500

MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6

New generation Intel® HD 2500

Nettop Manli M-T6H34 equipped with powerful integrated graphics Intel ® HD 2500. Intel ® graphics solution adds a new generation of computer power, offering extremely high performance graphics. Go beyond simple Internet browsing by offering the rich multimedia capabilities, the clever arrangement of the Intel ® HD. Watch the video in full 1080p on sites like YouTube HD, and played with the stick. Play the most popular PC games and enjoy the acceleration popular applications in the field of video and image processing, providing higher performance when editing and converting videos, face tracking during the pictures and much more.

MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6



Description

Flexible storage

Manli T6 MiniPC dysk SSD / HDDFlash SSD (Solid State Disc). They have no moving parts and only the same electronics. SSD two times faster reads and writes data over standard drives 2.5 ". Additionally, consumes little energy, and in general does not heat up and reduces the CPU load up to 10%..

Manli T6 MiniPC dysk SSD / HDD

Manli M-T6H34 can support a total of one HDD or SSD 2.5 ".

This approach leads to a super-fast action of our little computer.

The rate of operations performed on the applications installed SSD can increase up to 40%.

Increased security and faster work in RAID

Manli T6 MiniPC dysk SSD / HDD raid 01 RAID 0 allows you to hook up physical drives into a single logical which allows for better use of space. With RAID 1, your data will be safer because a disk is an exact copy of the other. If one drive fails all data is still available on the other. RAID 1 is almost twice as fast as reading data from the disk.

MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6


Very small size

You do not have to worry about where you bet your old desktop computer - in the house or office. The Manli M-T6H34 problem disappears forever because it has very small dimensions (182.7x177.3x49mm) which allows you to set him everywhere. With exquisite workmanship and energy efficient it is in the forefront of devices in this segment and is hit on the Polish market. Additionally MiniPC housing is made of an elegant brushed aluminum, which nettop is a very small and has a modern design.

MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6



MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6With the optional mounting brackets and

adapters, there are many mounting options

such as  LCD / LED, in stores, on the desktop

and in the car, etc





Application

MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6

Large storage capacity

Performance of your computer will never again let you down by technology, dual-channel RAM. Sharing channels reduces data latency and increase memory bandwidth to satisfy most storage-hungry applications. MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6

With up to 16GB of memory running Windows 7, 8 always cope with the number ofMiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6 assigned tasks in parallel. Producer allows you to mount two DDR3 SODIMM memory modules.


It's time to effectively replace the DVD player. Manli T6 ideally suited to the role player for movies, music and photos. With it on your TV to display whatever you want.

MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6

About 60% less energy than a standard desktop computer

Manli T6 with a powerful processor Intel® Core™ i5-3470T provides up to 60% more efficiency compared to a traditional desktop computer.

MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6

Connectors and Ports


Dual integrated Realtek 10/100/1000 Gigabit Ethernet or WiFi adapter (optional) to connect the device to the network. The computer is equipped with: Card reader (SD / SDHC / SDXC / MicroSD / MMC),MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6 MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T62 x LAN connector, three USB ports (2xUSB 2.0 / 1xUSB 3.0), one HDMI output, one DVI-I port, two audio inputs, and optionally WIFI, Bluetooth.


Front

MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6

1. Audio (speaker) 2. Mic-IN 3. Memory Card Reader
4. USB 3.0
 5. Power

MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6



Back

MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6

1. Antena WiFi
 2. Output SPDIF(optional)
 3. 2 x USB 2.0
4. DVI-I 5. Antena Bluetooth
 6. 2 x LAN
7. Output HDMI
 8. The charging DC-IN
MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6

Accessories

MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6


- AC Adapter

- Stand

- Driver CD

- User Manual

- 2 x Antena (WiFi, Bluetooth)

- VESA mount (optional)

- External USB IR receiver(optional)

MiniPC Nettop Mini-PC Small computer Manli T6 M-T6H34 IntelŸ Core™ i5-3470T (2x2.9 GHz) Intel HD 2500 1TB HDD 500GB SSD Windows 7 Windows 8 16GB RAM DDR3 Chipset H61 i3 i5 i7 T6

more photos in "Gallery"...

specification of this version is available in the "Specifications"...

Others: none
Chipset: H61
FSB: 1600MHz
CPU Support: Intel® Core™ i5-3470T Processor (3M Cache, up to 3.60 GHz)
Installed CPU: Intel® Core™ i5-3470T (2x2,9 GHz)
Memory Support: DDR3 SO-DIMM x 2 1600MHz (do 16GB)
Installed Memory: 8GB Kingston SODIMM DDR3 1600MHz CL11 PC3-12800
Graphic Card: Intel® HD Graphics 2500
Storage (HDD) Support: 2.5" SATA II/III HDD to 1TB / SSD to 500GB
Installed Storage (HDD): 128GB SSD SanDisk 2.5'' SATA3 (Read/Write: 490/350 MB/sec.)
CD/DVD Drive: None
LAN: Dual- 10/100/10p00Mbs Ethernet
Wireless LAN card: WiFi 802.11b/g/n + Bluetooth 4.0
TV Tuner: none
Front Panel (ports): Audio (Line-Out/SPDIF, Microphone) / Card Reader 4-in-1 (SD/SDHC/SDXC/MMC)
Rear Panel (ports): 2x USB 2.0, 2x RJ-45 , 1x HDMI, 1x DVI-I, 1x DC-in Jack
Power: AC/100-240V, 50/60Hz, 19V, Max 90W
Supported OS: Windows 7, Windows 8
Installed OS: No (optional Windows 7, Windows 8)
Dimensions: 182.7x177.3x49mm
Expansion: None


CURRENT PRICE
2267.50 € Net
2789.03€ Gross
