The bar code scanner is a device that allows read with barcodes from boxes or devices. Business accessories RIOTEC porduktu guarantee high quality and serve for many years without any loss of quality.
|
|
|||||||||||||||||||||||
Description
With built-in internal memory scanner can operate in trybyi (offline) and without konieczości connect the device, it even remembers 65,000 barcodes.
Summary mini barcode scanner has a built-in four-line LCD display (128x64) monochrome, so that we can check the status of the scanner on a regular basis and read data from barcodes in real-time.
|
Communication |
.jpg)

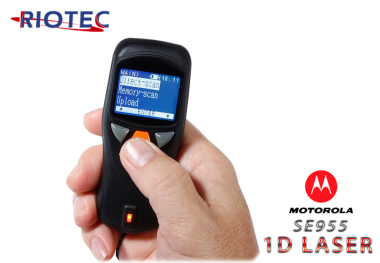

Mini scanner has a built-in barcode reader, 1D Laser, which is connecting to a Bluetooth device provides information on, among others, the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data.
|
|
Portable (radio and bluetooth-arid) barcode readers through the use of laser read-out techniques are convenient and easy to use and offer a wealth of configuration parameters. Enable automatic operation and manual. Read the codes with different contrasts with a distance of several centimeters. Thanks to the wireless communications offer coverage up to 100m from the computer.
The device uses the HID interface
|
|
|
|
||||||||||||||||||||||||||||||||||||
| Supported Operating Systems: | Android, iOS, Windows XP, Windows 7, Windows 8, Linux |
| Internal memory: | 1 MB (can save 65,000 sets more EAN 13 barcode) |
| Operation Voltage: | 5 V ± 0.5 V - DC |
| Reading indicator: | 1D (Motorola SE955) |
| Dimensions: | 100 x 43 x 24.5 mm |
| Weight: | 66 g |
| Battery: | 900 mAh 3.7V Li-Ion |
| Housing material: | Plastic |
| Scan rate: | 100 scans/sec |
| Light source: | 650 nm Laser Diode |
| Resolution: | 0.1 mm (4 mils) - Code 39 |
| Communication distance: | 100 m |
| Readable codes: | UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Bookland EAN, Code 128, UCC/EAN-128, ISBT 128, Code 39, Trioptic Code 39, Code 32 (Italian Pharma Code), Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, GS1 DataBar |
| Sensor: | 1D Laser (Motorola SE955) |
| Scan Angle: | 47° (typical) / 35 (narrow) |
| Print Contrast Ratio: | Minimum 20% absolute dark/light reflectance measured at 650 nm |
| Scan range: | 4 mils Code 39 25 ~ 140mm 5 mils Code 39 32 ~ 203mm 13 mils Code 39 38 ~ 610mm 20 mils Code 39 44 ~ 838mm 40 mils Code 39 *914~ mm (*dependent on width of barcode) |
| Cable Type: | MiniUSB |
| Battery Life: | 6 - 8 h |
| Communication: | Bluetooth Class 1 (2.4GHz) |
| Interface/ Pro le: | HID / SPP |
| Operating Temperature: | 0°C ~ 50°C |
| Storage Temperature: | -10°C ~ 60°C |
| Relative Humidity: | 5% ~ 95% relative humidity, non-condensing |
| Resistance IP: | - |
| Drop test: | - |
| Barcodes 1D: | Barcodes 1D: |
| 2 of 5 Chinese: | Yes |
| 2 of 5 Discrete: | Yes |
| 2 of 5 IATA: | No |
| 2 of 5 Industrial: | No |
| 2 of 5 Interleaved: | Yes |
| 2 of 5 Matrix: | No |
| 2 of 5 Standard: | No |
| BC - 412: | No |
| Bookland EAN: | Yes |
| Codabar: | Yes |
| Codabar - NW7: | No |
| Code - 11: | Yes |
| Code - 11(USD-8): | No |
| Code - 32: | Yes |
| Code - 39: | Yes |
| Code - 39 Extended (full ASCII): | No |
| Code - 39 Trioptic : | Yes |
| Code - 93: | Yes |
| Code - 128 (A, B, C): | Yes |
| EAN-8: | Yes |
| EAN-13: | Yes |
| EAN -128 / UCC-128: | Yes |
| GS1 DataBar: | Yes |
| Intelligent Mail: | No |
| ISBN: | No |
| ISBT - 128: | Yes |
| ISSN: | No |
| ITF-6: | No |
| ITF-14: | No |
| KIX code: | No |
| Matrix 25: | No |
| MSI: | Yes |
| MSI - Plessey: | Yes |
| Pharmacode - One Track: | No |
| Pharmacode - Two Track: | No |
| Planet: | No |
| Plessey: | No |
| Post - Australian (4-State Postal Code): | No |
| Post - China (4-State Postal Code): | No |
| Post - Japanese (4-State Postal Code): | No |
| Post - Singapore (4-State Postal Code): | No |
| PostNET: | No |
| Royal Mail (RM-4SCC): | No |
| Telepen Code: | No |
| UK/Plessey: | No |
| UPC - A: | Yes |
| UPC - E: | Yes |
| UPC - E1: | Yes |
| Barcodes 2D: | Barcodes 2D: |
| Aztec: | No |
| Composite code: | No |
| DataMatrix: | No |
| MaxiCode: | No |
| Micro PDF 417: | No |
| Micro QR Code : | No |
| PDF 417: | No |
| QR Code : | No |
| RSS: | No |
| TLC-39: | No |
CURRENT PRICE |
|
| 1274.26 € | Net |
| 1567.34€ | Gross |
RIOTEC iDC9602A intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers, logistics specialists, quality auditors and inspectors of manufacturing processes and all those who work in need of cataloging and storing information sczytanych with barcodes.
Mini RIOTEC iDC9602A 1D Laser is equipped with a Li-Ion battery with sufficient capacity 800mAh, which allows the scanner to operate for about 6 hours in scan mode.
Designed to be tailored it different applications, wireless (Bluetooth) barcode scanner can be compatible with dry systems as Android, , Windows XP, Windows 7, Windows 8, Linux. Users can transmit data in real time to PCs or mobile devices.
