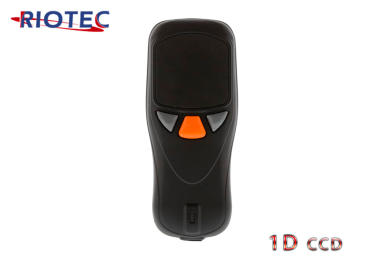

Mini scanner RIOTEC iDC9507A 1D CCD
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/mini-czytnik-riotec-idc9507a-1d-ccd-produkt-86930.html

Mini scanner RIOTEC iDC9507A 1D CCD

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

The company's  RIOTEC new distribution of Mobilator. Company achieved an excellent reputation as a manufacturer of bar code scanners. Due to the high position of the products in the high-tech won the trust of many customers around the world.

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI



The bar code scanner is a device that allows read with barcodes from boxes or devices. Business accessories RIOTEC porduktu guarantee high quality and serve for many years without any loss of quality.

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

Mini reader RIOTEC iDC9507A  1D CCD
Barcode scanner
1D CCD
Working time
6-8 h
Support system
Android, iOS, Windows XP, Windows 7, Windows 8, Linux
Range 100 m
Communication Bluetooth
Dimensions 100 X 43 X 24.5 mm
Weight
66 g +/- 5 g
Other The barcode read-out of the display / Built-in Memory

The detailed specification of the configuration available in the "Technical data"

go top… do góry menu… menu

Description



Unusual, modern, wireless (Bluetooth) mini barcode scanner RIOTEC iDC9507A 1D CCD has been designed with users in mind, for which it is necessary to meticulous cataloging of all available information logistics in the form of electronic databases, spreadsheets, lists, forms, etc.

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINIRIOTEC iDC9507A intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers, logistics specialists, quality auditors and inspectors of manufacturing processes and all those who work in need of cataloging and storing information sczytanych with barcodes.

Barcode Scanner 1D CCD - RIOTEC iDC9507A through Bluetooth module (which ensures proper communication) is compatible with mobile devices, data collectors and computers running on different operating systemch (see the text "Communication" - below).

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI
A new generation of mini scanner surprises his appearance. This ergonomic, compact and extremely lightweight barcode reader with an appropriate surface texture provides a good grip and reduces hand fatigue with long hours of work.

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINIMini RIOTEC iDC9507A 1D CCD is equipped with a Li-Ion battery with sufficient capacity 900mAh, which allows the scanner to operate for about 6 hours in scan mode.





RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINIThe scanner has an additional function of read-out bar codes straight from the screens and displays. With built-in internal memory scanner can operate in trybyi (offline) and without konieczości connect the device, it even remembers 65,000 barcodes.

go top do górymenu… menu

Communication

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

Mini scanner has a built-in barcode reader, 1D CCD, which is connecting to a Bluetooth device provides information on, among others, the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data.

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINIDesigned to be tailored it different applications, wireless (Bluetooth) barcode scanner can be compatible with dry systems as Android, , Windows XP, Windows 7, Windows 8, Linux. Users can transmit data in real time to PCs or mobile devices.

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

Portable (radio and bluetooth-arid) barcode readers through the use of laser read-out techniques are convenient and easy to use and offer a wealth of configuration parameters. Enable automatic operation and manual. Read the codes with different contrasts with a distance of several centimeters. Thanks to the wireless communications offer coverage up to 100m from the computer.

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI


The device uses the HID interface

To scanner devices need to use the right software to a serial port (RS-232) collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver.
Most of the users is a (mistaken) belief that each scanner connected to a computer will send data, which can be further processed such as Notepad or MS Word. That's not true.To do so, use the scanner with the so-called keyboard emulation - connected to a computer via USB, but the scanner must be working in a standard USB HID (Human Interface Device) otherwise known as Low Speed ​​USB also. In this way the data is sent to the computer in exactly the same way as does a USB keyboard. Hence the term emulation keyboard.
If we have the right scanner (USB HID) - when barcode in fact our  introduce to Word or Notepad in the form of digits or in any place where we can place the cursor or wpiswać text data. Scanners USB HID usually do not require additional drivers, as the drivers for HID devices are standard in Windows.

Supported Bluetooth profiles SPP system.

SPP defines how to set up virtual serial ports (RS-232) and connect two devices via Bluetooth. SPP is a serial port profile. It is used in various devices (eg PC, GPS, industrial equipment).

Wireless barcode scanner works as a Bluetooth master (supporting SPP - Serial Port Profile). When paired with a computer or mobile device, the bar code can be read using a software virtual serial port (RS232 or COM port). This allows the device one can to both send and receive data via Bluetooth without connecting a serial cable to your computer .



RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI




Application

Application

For RIOTEC iDC9507A manufacturer recommends widely used in situations where it is necessary to fast and mobile identification of goods in trade, logistics, transport, freight forwarding, industrial sector, financial and public sectors.

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI



RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI
Pharmacy

For RIOTEC iDC9507A  manufacturer recommends widely used in situations where it is necessary to fast and mobile identification of goods in trade, logistics, transport, freight forwarding, industrial sector, financial and public sectors.

Trade

The device is used for fast read-out bar codes. Certainly can be applied in all kinds of commercial networks.


RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI
RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

Magazine

Mini barcode reader Allows you to quickly update the inventory with the help of Bluetooth wireless data transfer.

Logistics and transport

Small scanner will find all kinds of use including in transport - a portable and super light barcode reader for fast identification.

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI



Specifications



 Barcode readers allow you to read and send data to a computer stored in the barcode. We offer the highest quality devices work flawlessly even in harsh industrial environments.RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINIRIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

After scanning the coded data you can upload them to your computer or portable database. Mobile, quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes.

The bar code scanner can be connected to almost any device of computer technology - via the USB port.



RIOTEC iDC9507A  1D CCD
Mechanical

Height: 24,5 mm

Lenght: 100 mm

Width: 43 mm

Weight: 66g

 Electrical
5 V/DC ± 5%
Scan Preformace

Sensor Type:1D CCD Ultra-long range CCD engine

Scan Speed: up to 300 scan/sec

Resolution:  3 mils

Scan Angle:

Pitch ±60° @ 0° Roll and 0° Skew
Roll ±30° @ Pitch and 0° Skew
Skew ±60° @ Roll and 0° Pitch

Contrast:  ≧ 30%

Barcode Type
EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey
Memory 1MB (can save 65,000 sets more EAN 13 barcode)
Battery

3.7V 900mAh Li-Ion battery

Workin time : more than 10,000 scans when fully chargednaładowaniu ok.6h

Charge Time: 4-5 h

Communication

BT Class 1 (2.4GHz wireless)

Distance: up to 100m (in open area)

Scan Range

UPCA (13mil): 50mm~620mm

EAN13 (13mil): 50mm~610mm

Housing color
black
Accessories

User manual, Mini USB cable for charging

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

 more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Supported Operating Systems: Android, iOS, Windows XP, Windows 7, Windows 8, Linux
Internal memory: 1 MB (can save 65,000 sets more EAN 13 barcode)
Operation Voltage: 5 V/DC ± 5%
Reading indicator: 1D CCD
Dimensions: 100 x 43 x 24.5 mm
Weight: 66 g
Battery: 900 mAh 3.7V Li-Ion
Housing material: Plastic
Scan rate: 300 scan/sec
Light source: 610nm ~ 640nm Red LED
Resolution: 3 mil
Communication distance: 100m (in open area)
Readable codes: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey
Sensor: Ultra-long range CCD engine
Scan Angle: Pitch ±60° @ 0° Roll and 0° Skew Roll ±30° @ Pitch and 0° Skew Skew ±60° @ Roll and 0° Pitch
Print Contrast Ratio: ≧ 30%
Scan range: UPCA (13mil): 50mm~620mm EAN13 (13mil): 50mm~610mm
Cable Type: MiniUSB
Battery Life: 6 - 8 h
Communication: Bluetooth Class 1 (2.4GHz)
Interface/ Prole: HID / SPP
Operating Temperature: 0°C ~ 50°C
Storage Temperature: -10°C ~ 60°C
Relative Humidity: 20% ~ 95% relative humidity, non-condensing
Resistance IP: -
Drop test: -
Barcodes 1D: Barcodes 1D:
2 of 5 Chinese: No
2 of 5 Discrete: No
2 of 5 IATA: No
2 of 5 Industrial: Yes
2 of 5 Interleaved: Yes
2 of 5 Matrix: Yes
2 of 5 Standard: No
BC - 412: No
Bookland EAN: No
Codabar: Yes
Codabar - NW7: No
Code - 11: Yes
Code - 11(USD-8): No
Code - 32: No
Code - 39: Yes
Code - 39 Extended (full ASCII): No
Code - 39 Trioptic : No
Code - 93: Yes
Code - 128 (A, B, C): Yes
EAN-8: Yes
EAN-13: Yes
EAN -128 / UCC-128: No
GS1 DataBar: Yes
Intelligent Mail: No
ISBN: Yes
ISBT - 128: No
ISSN: Yes
ITF-6: Yes
ITF-14: Yes
KIX code: No
Matrix 25: No
MSI: Yes
MSI - Plessey: Yes
Pharmacode - One Track: No
Pharmacode - Two Track: No
Planet: No
Plessey: Yes
Post - Australian (4-State Postal Code): No
Post - China (4-State Postal Code): No
Post - Japanese (4-State Postal Code): No
Post - Singapore (4-State Postal Code): No
PostNET: No
Royal Mail (RM-4SCC): No
Telepen Code: No
UK/Plessey: No
UPC - A: Yes
UPC - E: Yes
UPC - E1: No
Barcodes 2D: Barcodes 2D:
Aztec: No
Composite code: No
DataMatrix: No
MaxiCode: No
Micro PDF 417: No
Micro QR Code : No
PDF 417: No
QR Code : No
RSS: No
TLC-39: No


CURRENT PRICE
830.26 € Net
1021.22€ Gross
