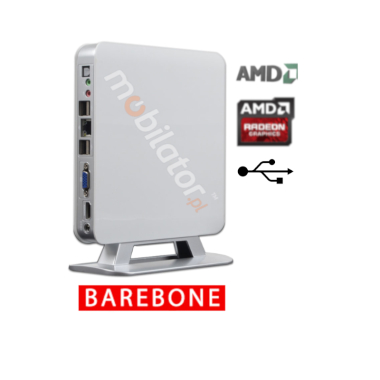

Small dimensions computers are at the forefront in environments where dust, dirt and moisture predominate. They are ideal for applications requiring quiet operation. The rugged mini mBOX-Q135 is a device designed for all home, office and other uses requiring continuous operation - 24 hours, 7 days a week.
.png)
.png)
The use of fan cooling in
the Mini PC ensures quiet
operation of the device.
| Performance | |
|---|---|
| Processor | AMD E350D (2x 1.60 GHz) |
| Graphics card | AMD Radeon HD 6310 |
| Operating system | Windows XP/7/8/10 | Linux |
| RAM | None/ 2GB * /4GB * / 8GB * DDR3L |
| Drive | None/32GB * / 64GB * | 500GB*HDD |
| Interfaces | |
| Connectivity |
Wi-Fi * LAN - 1x Realetk RTL8111E |
| Front panel | 2x USB 2.0 | 1x SD Slot | Power button |
| Rear panel |
Power connector | 1x Gigabit LAN 1x HDMI | 1x VGA | 4x USB 2.0 1x Audio | 1x Mic |
| Other | |
| Available colors | Biały |
| Dimensions | 180mm x 180mm x 30mm |
| Weight | 0.680kg |
(2).jpg)
(2).jpg)
.png)
Detailed device specification is available in the "Technical data" tab.mBOX-Q135 is designed for continuous operation in both very low and high temperatures ranging from 0° C to 50 ° C. If the device is switched off, it can already handle temperatures in the range of -20 ° C to 80 ° C.
(6).jpg)
| Work temp. | 0°C — 50°C |
| Storage temp. | -20°C — 80°C |
| Humidity | 10% — 95% |
MiniPC mBOX-Q135 combined with the non-disk SSD* make this computer very resistant to various types of mechanical injuries.
The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. Industrial mini-PC mBOX-Q135 has been equipped the standard of - 802.11n, which allows transfer of files at a dizzying speed of up to 150 Mb / s.
The MiniPC mBOX-Q135 has built-in one Realtek RTL8111E network adapters that can work in a fast Gigabit Ethernet network.
.jpg)
Thanks to its small size, the MiniPC can work at home. It will fit virtually everywhere, so you can mount them. It will already work as a device for storing and retrieving information. COM ports hosting the installation of multiple devices in the office and its management. Its durability of the casing is in difficult conditions prevailing in such frames. Robust construction ensures long-lasting work, even in terms of safety and protection against dirt.
More pictures of the device available in the "Gallery" tab.
The mini-computer mBOX-Q135 is offered in several versions to suit different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.
[tab_wersja_id_112]
| Others: | |
| Chipset: | AMD A50M (Hudson M1) |
| CPU Support: | AMD E350D |
| Installed CPU: | AMD E350D (2x1.60 GHz) |
| Memory Support: | 2x DDR3L SO-DIMM (max. 8GB) |
| Installed Memory: | None (Available in a different version) |
| Graphic Card: | AMD Radeon HD6310 |
| Storage (HDD) Support: | SSD / HDD |
| Installed Storage (HDD): | None (Available in a different version) |
| CD/DVD Drive: | ----- |
| LAN: | 1x Realtek RTL8111E Gigabit LAN |
| Wireless LAN card: | Option |
| Bluetooth: | No |
| 3G: | No |
| 4G LTE: | |
| TV Tuner: | ----- |
| Watch Dog Timer: | Yes |
| Front Panel (ports): | 2x USB 2.0 1x SD Slot Power button |
| Rear Panel (ports): | Power connector DC12V 1x Gigabit LAN 1x HDMI | 1x VGA | 4x USB 2.0 1x Audio | 1x Mic |
| Power: | 12V5A |
| Supported OS: | Windows XP/7/8/10 | Linux |
| Installed OS: | None |
| Dimensions: | 180mm x 180mm x 30mm |
| Weight: | 680g |
| Expansion: | |
| Fanless: | None |
| Humidity: | 10%~90% |
| Temp: | 0°C~50°C |
| IP Norm: | No |
| Storage temperature: | -20°C~80°C |
CURRENT PRICE |
|
| 474.62 € | Net |
| 583.78€ | Gross |
