Communication:
Panel PC Industrial Panel PC-Ha-IPC104-D2550 optional wireless communication system has Wi-Fi and available on other models are also such modules as 3G.
Connector:
Realtek RT8111E LAN, WIFI allows you to connect the device to the network. The computer is equipped with: one LAN connector, two COM ports (RS232), one VGA, one HDMI port, four USB 2.0 ports and power. Audio output and microphone.
.jpg)
| 1. Power ON/OFF |
5. 1 x VGA |
9. 2 x COM(RS-232) |
| 2. 1 x Antena WiFi |
6. 1 x LAN RJ45 |
10. 1 x DC-in |
| 3. 4 x USB 2.0 |
7. 1 x Audio |
|
| 4. 1 x HDMI |
8. 1 x Mic |
|
|
go top…  menu…

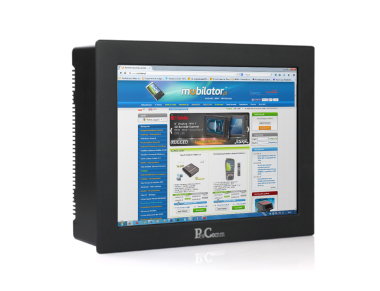

Industrial Panel-PC Ha-IPC104-D2550 has a water-resistant front panel and scratch resistant LED screen. With 800x600 resolution and high brightness of 400 cd/m2, screen of "5 wire resistive" type with high sensitivity to touch, offers the user a clear picture and ease of use.
Resistive screen
A resistive touchscreen comprises of several layers, out of which the flexible plastic and glass layers are two important electrically resistive layers. The front surface of resistive touchscreen panel is a scratch-resistant plastic with coating of a conductive material (mostly Indium Tin Oxide, ITO), printed underside. The second important layer is either made of glass or hard plastic and is also coated with ITO. Both the layers face each other and are separated with a thin gap in between. An electrical resistance is created between both the layers in such a way that charge runs from top to bottom in one layer and side-to-side in another. When a finger or stylus tip presses down on the outer surface, both the ITO films meet. It is the measure of the resistance of both the layers at point of contact, which leads to get an accurate measurement of the touch position. The accuracy also relies on the evenness of the coating of ITO on both the layers.
Resistive screen ensures good visibility, which falls quite firmly in the sun. This type of screen as opposed to a capacitive screen, allows you to use handwriting (stylus comes in handy here).
5-WIRE RESISTIVE SCREENS
The 5-wire Resistive Touch Screen is the preferred solution for applications requiring durability and reliability. Similar to the 4-wire technology, the 5-wire touch screen also consists of a conductive glass bottom layer and conductive top film layer. The fundamental difference between the two is, in the 5-wire construction, all the electrodes are on the bottom layer and the top layer acts as a voltage-measuring probe. With this structure, the touch screen may still work properly even when the top layer is slightly scratched or damaged. The result is an accurate, durable and reliable touch screen that offers a higher touch life.
Resistive screens are very durable and can be used in a variety of environments. This type of screen is recommended for demanding point-of-sale systems, restaurant systems, industrial controls, and other workplace applications.
|
Applicable standards and tests carried out.
Industrial Panel-PC Ha-IPC104-D2550 is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial aluminum IP65 housing protects the display from the outside against mechanical damage, drops of water, sand and dust. PanelPC Ha-IPC104-D2550 is the best solution for extreme applications in dust or moisture.
|
| Operating Temp |
-10-60 °C |
| Operating Humidity |
10%-93% |
| Dust |
IP6x(dust) |
| Water |
IPx5(drops of water) |
Resistance IP65 (front panel)
The IP Code, International Protection Marking. IEC standard 60529, sometimes interpreted as Ingress Protection Marking, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC).
go top… menu…
The first digit [x]
Protection against solid objects |
|
The second digits [y]
Protection against liquids |
| No special protection |
| 0 |
 |
0
|
|
No waterproofing |
| Protection from solid objects greater than 50mm in diameter |
| 1 |
 |
1
|
|
Protection from dripping water
|
| Protection from object not greater than 12mm in diamete |
| 2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
| Protection from object not greater than 2,5mm in diameter |
| 3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
| Protection from object not greater than 1mm in diameter |
| 4 |
 |
4
|
|
Protection from splashed water |
| Complete protection against contact, Protection against dust deposit |
| 5 |
 |
5
|
|
Protection from water projected from a nozzle |
| Complete protectionm against contact, Protection from infiltration of dust |
| 6 |
 |
6
|
|
Protection against heavy seas, or powerful jets of water |
| |
| |
 |
7
|
|
Protection against immersion |
| |
| |
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water |
|
Industrial Panel PCs with HAXUN companies are based on the efficient two-core processors and high-quality components.
Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
Areas of use of industrial panel computers.
|
Trade
Fanless Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register), factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.
|
|
|
|
Magazine
Industrial Panel PC through COM port (RS232) can be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.
|
|
Transport & Automotive
Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 8V - 28V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.
|
|
go top… menu…
| |
v. 1 |
v. 2 |
v. 3 |
v. 4 |
v. 5 |
v. 6 |
v. 7 |
v. 8 |
| Wi-Fi |
- |
- |
 |
|
|
|
|
|
| Intel® Atom™ D2550 |
|
|
|
|
|
|
|
|
| RAM: 2 GB |
|
|
|
|
|
|
- |
- |
| RAM: 4 GB |
- |
- |
- |
- |
- |
- |
|
|
| 16 GB SSD |
|
|
|
|
- |
- |
- |
- |
| 320 GB HDD |
- |
- |
- |
- |
|
|
- |
- |
| 64 GB SSD |
- |
- |
- |
- |
- |
- |
|
|
| 12 V |
|
- |
|
- |
|
- |
|
- |
| 8-28 V |
- |
|
- |
|
- |
|
- |
|
|
go top… menu…
Display |
Screen: 10.4"
Resolution: 800 x 600
Type: 5 - Wire Resistive |
| Resistance IP |
IP 65 (front panel)
|
| Communication |
Wi-FI
3G (option)
|
|
Dimensions
|
Height: 70 mm
Width: 208 mm
Length: 255 mm
|
| Weight |
3 kg |
| Processor |
Intel Atom Dual Core D2550 (2x 1.86GHz) |
| Chipset |
Intel NM10 express chipset |
| Memory RAM |
4GB DDR3 (optional up to4GB) |
| Graphics Card |
Intel® GMA 3650 |
| Sound Card |
Realtek ALC662 |
| Network Card |
Realtek RT8111E |
| Ports & interfaces |
2 x COM(RS232)
4 x USB 2.0
1 x RJ-45
1 x VGA
1 x HDMI
1 x Audio
1 x Mic
1 x Dc-in
|
|
|
|
|
