Description

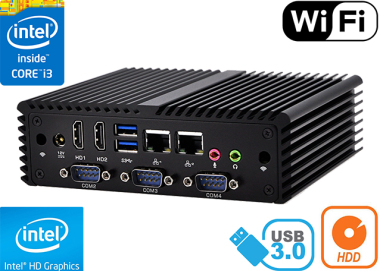

Housing dimensions are 155 (W) x127 (L) x48 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 4/8GB DDR3 memory. Integrated Intel HD Graphics 4400 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB/128GB/256GB SSD and 500GB HDD.
|
|
Communication & Connectors |
Integrated card - Realtek RTL8111E 10/100/1000 Controller and WiFi module allow connection to the network. The computer is equipped with: two LAN ports, two HDMI ports, two USB 2.0 ports, four USB 3.0 ports, four COM(RS232) ports one Audio input and one Mic output.
|
Cooling
The Industrial Computer Fanless MiniPC mBOX Nuc Q430P uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.
|
|
Others: | Colour Black |
Chipset: | Intel express chipset |
CPU Support: | ----- |
Installed CPU: | Intel i3 4005U Dual Core (2x1,7GHz) |
Memory Support: | DDR3L (max. 8GB) 1333MHz/1600MHz SO-DIMM |
Installed Memory: | 8GB DDR3L |
Graphic Card: | Intel HD Graphics 4400 |
Storage (HDD) Support: | SSD/HDD mSATA |
Installed Storage (HDD): | 500GB HDD (opc. SSD + 2,5" SSD/HDD) |
CD/DVD Drive: | ----- |
LAN: | Realtek RTL8111E 10/100/1000 Controller |
Wireless LAN card: | Yes - 802.11 b/g/n |
Bluetooth: | ----- |
3G: | ----- |
4G LTE: | |
TV Tuner: | ----- |
Watch Dog Timer: | 0 ~ 255 sec |
Front Panel (ports): | 2x USB2.0 2x USB 3.0 1x COM(RS232), Power ON/OFF |
Rear Panel (ports): | DC-IN 12V, 2x RJ-45 LAN, 3x COM(RS232), 1x Mic, 1x Audio, 2x HDMI, 2x USB 3.0 |
Power: | 12V |
Supported OS: | Microsoft Windows: 7/8/8.1/10, Linux |
Installed OS: | ----- |
Dimensions: | 155 x 127 x 38 mm |
Weight: | 1000g |
Expansion: | ----- |
Fanless: | Yes |
Humidity: | 10 ~ 90% |
Temp: | 0 ~50℃ |
IP Norm: | ----- |
Storage temperature: | -20 ~ 80℃ |
CURRENT PRICE |
|
1895.28 € | Net |
2331.19€ | Gross |
