Industrial Fanless |
Description
Housing dimensions are 187 (W) x111 (L) x50 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 2/4GB DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB/128GB SSD.
|
|
Communication & Connectors |
Two Integrated cards - Intel I211-AT- 10/100/1000 Controller allow connection to the network. The computer is equipped with: two LAN ports, two HDMI ports, two USB 2.0 ports, four USB 3.0 ports, six COM (RS232) port (optionally one of the COM ports can be changed to VGA port, COM2 can be changed to RS485), one Audio input and one Mic output.
|
The Industrial Computer Fanless MiniPC mBOX Nuc Q310P uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.
|
|
Others: | Colour Black |
Chipset: | Intel express chipset |
CPU Support: | ----- |
Installed CPU: | Intel Celeron N3150 Quad Core (4x1,6GHz) |
Memory Support: | DDR3L (max. 8GB) 1333MHz/1600MHz SO-DIMM |
Installed Memory: | 2GB |
Graphic Card: | Intel HD Graphics 4400 |
Storage (HDD) Support: | SSD/HDD mSATA |
Installed Storage (HDD): | 32GB SSD |
CD/DVD Drive: | ----- |
LAN: | 2 x Intel I211-AT- 10/100/1000 Controller |
Wireless LAN card: | Yes |
Bluetooth: | ----- |
3G: | ----- |
4G LTE: | |
TV Tuner: | ----- |
Watch Dog Timer: | 0 ~ 255 sec |
Front Panel (ports): | 2x USB2.0 2x USB 3.0 2x COM(RS232) Power ON/OFF |

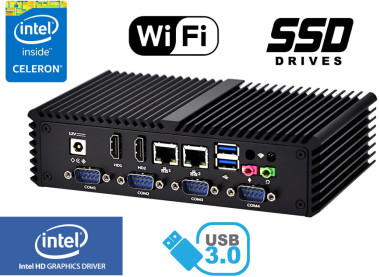

Rear Panel (ports): | DC-IN 12, 4x COM(RS232) 2x RJ-45 LAN 1x Mic 1x Audio 2x HDMI 2x USB 3.0 |
Power: | 12V |
Supported OS: | Microsoft Windows: 7/8/8.1/10, Linux |
Installed OS: | ----- |
Dimensions: | 187 x 111 x 50 mm |
Weight: | 2.5kg |
Expansion: | ----- |
Fanless: | Yes |
Humidity: | 10 ~ 90% |
Temp: | 0 ~50℃ |
IP Norm: | ----- |
Storage temperature: | -20 ~ 80℃ |
CURRENT PRICE |
|
1130.07 € | Net |
1389.99€ | Gross |
