Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b v.1
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/komputer-przemyslowy-fanless-minipc-ibox-nano-j1900-n1b-v.1-produkt-87858.html

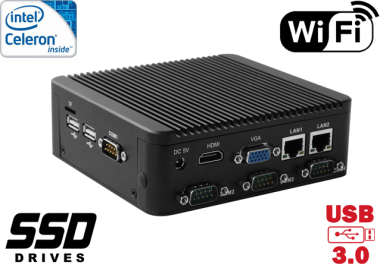

Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b v.1

Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b

Industrial MiniPC

Industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go topdo góry   menu… menu

Description


Housing dimension are 134 (W) x124 (L) x46 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 1 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB/128GB SSD or 500GB HDD.



Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b

go topdo góry   menu… menu

Communiaction & Connectors

Integrated card - Intel 82583V 1000M and WiFi module allow connection to the network. The computer is equipped with: two LAN ports, one USB 3.0 port, one VGA output, three USB 2.0 ports, one HDMI output, four COM(RS232) ports, TF card reader, one way audio, one microphone input.

Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b

1. 1x Reset
  4. 1x USB 3.0
2. 1x Audio
  5. 1x USB 2.0
3. 1x Mic
  6. Power ON/OFF




Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b

1. DC-IN 12V
5. 3x COM(RS232)
2. 1x HDMI

3. 1x VGA

4. 2x RJ-45


Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b
1. 1x TF card reader
2. 2x USB 2.0
3. 1x COM(RS232)
Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b

Cooling

The Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.
go topdo góry   menu… menu

Usability

Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b are based on high-performance quad-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications.

The biggest advantages of these devices are: small size, performance and energy efficiency. An extra pair of bracIndustrial Computer Fanless Mini PC IBOX-Nano-J1900 N1bkets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Areas of use of industrial MiniPC

Digital Engine

Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b
Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b

Warehouse

Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b by to four USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b

Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b



Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b

go topdo góry   menu… menu



Specifications


  Dimensions





   H: 46 mm

   L: 124 mm

   W: 134 mm

   Weight    1kg
   Processor    Intel Celeron N2930 4x1,83GHz
   Chipset
   Intel Chipset
   RAM
   2GB DDR3
   Graphics
   Intel HD Graphics
   Sound Card
   Realtek ALC662
   WLAN
   Intel 82583V 1000M
   Connectors

   1x TF card reader

   3x USB 2.0

   1x MIC

   1x USB 3.0

   1x DC-IN 12V

   1x HDMI

   1x - VGA

   2x - RJ45

   1x - Audio

   4x - COM(RS232)

Industrial Computer Fanless Mini PC IBOX-Nano-J1900 N1b


Others: Colour Black, Aluminum
Chipset: Intel Chipset
CPU Support: -----
Installed CPU: Intel Celeron N2930 4x1,83GHz
Memory Support: DDR3
Installed Memory: 2GB DDR3
Graphic Card: Intel HD Graphics
Storage (HDD) Support: SSD/HDD
Installed Storage (HDD): 32GB SSD
CD/DVD Drive: -----
LAN: Intel 82583V 1000M Lan
Wireless LAN card: Yes
Bluetooth: No
3G: No
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0~255 sec
Front Panel (ports): 1x USB 2.0
1x USB 3.0
1x Audio
1x Mic
Power ON/OFF
Rear Panel (ports): DC-IN 12V
1x HDMI
1x VGA
2x LAN (RJ45)
4x COM(RS232)
2x USB 2.0
Power: DC 12V
Supported OS: Microsoft Windows: 7/8/8.1, Linux
Installed OS: -----
Dimensions: 134 x 124 x 46mm
Weight: 1 kg
Expansion: -----
Fanless: Yes
Humidity: 0 ~ 95%
Temp: -10 - 60 ℃
IP Norm: -----
Storage temperature: -20 - 70 ℃


CURRENT PRICE
1250.73 € Net
1538.40€ Gross
