Open Frame Touch Screen PC CCETouch CT19-OPCR-SSD
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/komputer-panelowy-open-frame-ccetouch-ct19-opcr-ssd-produkt-86627.html

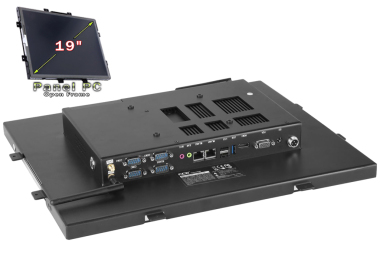

Open Frame Touch Screen PC CCETouch CT19-OPCR-SSD

Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat

(June 2014) Industrial panel PCs CCETouch company are a new distribution segment on Mobilator.pl. CCETouch company has achieved an excellent reputation as a manufacturer of industrial touch panel computers. Due to the high position of products in the segment of high-tech has won the confidence of many customers around the world.

CCETouch Industrial PC Touch

Open Frame Touch Screen PC

Fanless Industrial Panel PC computers OPEN FRAME are used in environments where you need a quick and hassle-free access to the network or data. They are ideal for applications that require quiet operation. Small but robust Panel PC using the heat-pipe technology and aluminum fins for passive cooling.



Description


Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat

CCETouch

Open Frame Touch Screen PC CCETouch CT19-OPCR-SSD






CCETouch

Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat

CPU: Intel® Celeron™ J1900 (4 x 2.0 GHz)


Memory: 4 GB RAM DDRIII SODIMM


Disk: 128 GB SSD


System: Windows 8.1/8 / Windows 7 / Windows XP / Linux


Screen: 19" / 1280 x 1024 / 4:3 / 5 - Wire Resistive



Expansion cards:
none



Detailed specification of the configuration available in the "Technical data"


Using the latest technology (industrial fanless) Panel PC is designed for continuous multitasking operating with low power consumption (32W). An important advantage is the effective combination of small size with considerable opportunities, through the use of Intel® Celeron processor family, Intel chipsets and DDR3 memory. Integrated Intel®HD 2500 video graphics card and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio). Disks offer free space from 32GB SSD to 512GB SSD (320GB to 1TB HDD option).

Dimensions:

Housing dimension are 415 (W) x 345 (L) x 60 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 7.5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat

Cooling:

Open Frame Touch Screen PC CCETouch CT19-OPCR is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat

The industrial fanless Open Frame Touch Screen PC CCETouch CT19-OPCR uses a special method of cooling.This cooling takes place mainly by means of housing having a very large surface (longitudinal lamels, ribs) for heat dissipation - thanks such cooling - industrial Panel PC is faster and more efficiently cooled.

go top… do g鏎y   menu… menu

Communication & Connections

Communication:

Open Frame Touch Screen PC CCETouch CT19-OPCR standard has a system of wireless Wi-Fi communication. Optionally in other models are available also modules such as 3G and GPS.

Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat


Connector:

The integrated network card  Intel RTL8111G 10/100/1000 Mbps LAN 2xRJ-45, WIFI allows you to connect the device to the network. The computer is equipped with: two LAN connector, three ports COM (RS232), one port COM (RS485), one VGA, one HDMI output, two USB 2.0 ports, one USB 3.0 port, one audio input, one  input MIC, connector DC-in.

Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat

Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat

Screen

Open Frame Panel PC CCETouch CT19-OPCR has adapted to building 19 "LCD screen with 3H hardness. With 1280 x 1024 resolution and high brightness of 250 cd/m2, resistive screen type" 5 wire rezistive "with high sensitivity to touch, offers the user a clear picture and ease of use .

Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat



Resistive screen

A resistive touchscreen comprises of several layers, out of which the flexible plastic and glass layers are two important electrically resistive layers. The front surface of resistive touchscreen panel is a scratch-resistant plastic with coating of a conductive material (mostly Indium Tin Oxide, ITO), printed underside.  The second important layer is either made of glass or hard plastic and is also coated with ITO.  Both the layers face each other and are separated with a thin gap in between. An electrical resistance is created between both the layers in such a way that charge runs from top to bottom in one layer and side-to-side in another.  When a finger or stylus tip presses down on the outer surface, both the ITO films meet. It is the measure of the resistance of both the layers at point of contact, which leads to get an accurate measurement of the touch position. The accuracy also relies on the evenness of the coating of ITO on both the layers.

Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat
Resistive screen ensures good visibility, which falls quite firmly in the sun. This type of screen as opposed to a capacitive screen, allows you to use handwriting (stylus comes in handy here).

5-WIRE RESISTIVE SCREENS

The 5-wire Resistive Touch Screen is the preferred solution for applications requiring durability and reliability. Similar to the 4-wire technology, the 5-wire touch screen also consists of a conductive glass bottom layer and conductive top film layer. The fundamental difference between the two is, in the 5-wire construction, all the electrodes are on the bottom layer and the top layer acts as a voltage-measuring probe. With this structure, the touch screen may still work properly even when the top layer is slightly scratched or damaged. The result is an accurate, durable and reliable touch screen that offers a higher touch life.

Resistive screens are very durable and can be used in a variety of environments. This type of screen is recommended for demanding point-of-sale systems, restaurant systems, industrial controls, and other workplace applications.

Application

Panel PC CCETouch CT19-OPCR is specially designed for zamontowanmia in special cabinets Internet kiosks, ATMs, etc. Open Frame Panel PC is the best solution for use in public places where you need a fast and seamless access to Danch or the Internet.

Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat

 Operating Temp
0-60 °C
 Operating Humidity 5%-95%

Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat

Industrial Panel PCs with CCETouch companies are based on the efficient two-core processors and high-quality components.Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat

Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat

Areas of use of industrial panel computers.

Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat

Trade

Fanless Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register),  factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.

Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat
Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat

Magazine

Industrial Panel PC through COM port (RS232) can be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas.  Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

 Transport & Automotive

Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 12V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat

Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat

go top… do g鏎y   menu… menu

Versions

  CT19-OPCR
CT19-OPCR-3G CT19-OPCR-SSD CT19-OPC-SAW
 Intel® Celeron J1900
Wi-Fi
3G + GPS - - -
12V DC-IN
Touch Screen SAW
- - -

go top… do g鏎y   menu… menu

Specifications


   Display

   Screen: 19"

   Resolution:1280 x 1024

   Type: 5 - Wire Resistive
   Resistance IP

   -

   Communication

   Wi-FI

   3G (option)

   GPS (option)

   Dimensions





   Height:  60 mm

   Width: 345 mm

   Length: 415 mm

   Weight    7.5 kg
   Processor    Intel® Celeron™ J1900 (4 x 2.0 GHz)
   Chipset
   Intel NM70
   Memory RAM
   4 GB DDR3 (optional up to 8GB)
   Graphics Card
   Intel® HD 2500
   Sound Card
   Realtek ALC662
   Network Card
   Realtek  RTL8105E LAN
   Ports & interfaces

   2 x COM(RS232)

   4 x USB 2.0

   1 x RJ-45

   1 x VGA

   1 x HDMI

   1 x VGA

   1 x Audio

   1 x Mic

   1 x Power Switch

Komputer panelowy (Open Frame) CCETouch CT19-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran rezystancyjny 5 wire resistive wy鈍ietlacz 19 cali mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT19-OPCR do zabudowy kiosk internetowy bankomat


Screen size: 19"
Resolution: 1280 x1024
Aspect ratio: 4:3
Touchscreen: Resistive Type 5-Wire
Chipset: Intel® NM70 Mobile Chipset
CPU Support: Intel® Celeron™ J1900 (4 x 2.0 GHz)
Installed CPU: Intel® Celeron™ J1900 (4 x 2.0 GHz)
Memory Support: up to 8GB DDR3 Max. 1333/1066 SODIMM
Installed Memory: 4 GB DDR3
Graphic Card: Intel® HD 2500
Audio: Realtek ALC662, 6 Channel High Definition Audio Codec 2x 2W loudspeaker
Storage (HDD) Support: 32 - 512 GB SSD / 320 - 1TB HDD
Installed Storage (HDD): 128 GB S-ATA SSD
CD/DVD Drive: -----
LAN: Realtek RTL RTL8105E, 1x10/100/1000Mbit RJ45 Ports
Wireless LAN card: Yes
Bluetooth: -----
3G: -----
4G LTE:
GPS: -----
TV Tuner: -----
Watch Dog Timer: -----
Ports - front panel: -----
Ports - rear panel: 1 x VGA
1 x HDMI
2 x USB 2.0
1 x USB 3.0
2 x RJ-45 LAN
3 x RS-232 COM
1 x RS-485 COM
1 x DC-in
1 x MIC
1 x Audio
1 x WIFI antenna
Ports - left panel: -----
Ports - right panel: -----
Power: 12 V
Supported OS: Microsoft Windows: XP/Vista/7/8/8.1; Linux
Installed OS: -----
Dimensions: 435 x 345 x 60 mm
Weight: 7.5 kg
Expansion: -----
Fanless: Yes
Humidity: 5%~ 95%
Temp: 0蚓 ~ 60蚓
Storage Temp: -15蚓 ~ 70蚓
IP Norm: -----
IP Level (back panel): -----
IP Level (front panel): -----
Dual display: Yes
Response time touch-panel (ms): < 10
Contrast Ratio: 1000:1
Brightness: 250 cd/m2
Viewing Angle: 160;150
Backlight MTBF: LED/40,000 h
Color Resolution: 16,7 mln
Surface hardness (display): 3H
Touch Life(contacts): >35.000.000 times
Housing material: Aluminum
Mounting VESA: Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm
Folding Bracket (for office type working): No (optional)
Power Consumption: 32 W
Others: -----
Anti-vibration: -----
Anti-shock: -----
RFID scanner (reader): -----
Barcode reader:


CURRENT PRICE
3899.59 € Net
4796.50€ Gross
