Data Collector CILICO CM700 v.2
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/kolektor-danych-cilico-cm700-v.2-produkt-86086.html

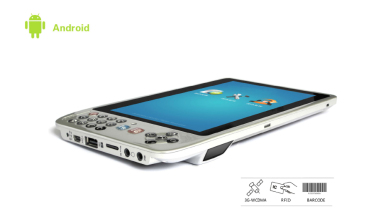

Data Collector CILICO CM700 v.2

tablet rfid barcode scanner data collector cilico cm700
CILICO is a handheld terminal manufacturer, founded in 2001, with over 100 employees. Our products are sold all over the world and had become the most professional handheld terminal provider in the market. We are supplier of many well-reputed brands. With 10 years continuous efforts, CILICO now have a professional R&D team and we dedicate to provide customers with best products and service. CILICO is specialized in Mobile handheld terminals and with ten years research and develop experience. We provide all kinds of handheld smart terminals, and offer full ranges of solutions. We offer OEM service to satisfy

cilico cm700 gps hsdpa


Description

tablet z usb cilico cm700

System specifications
  Processor Qualcomm MSM7227 ARM11 800MHZ
 Display 7" LCD (800 x480) Capacitive : Multi-Touch
 RAM 512MB
 ROM 512MB
 Connectors USB 1.1 Host : USB 2.0 Client : SIM
  Micro SD/TF (max. 32GB)
 Readers RFID (HF:13.56M ISO14443A Protocol) - factory
  RFID (UHF: 900MHZ) - optional
  2D Barcode Scanner via Camera - factory
  1D Barcode Scanner Laser
 GPS Built-in SIRF GPS
 Audio Headphone : Microphone : Speaker (1W)
 Camera 5Mpx : Autofocus : LED
 Battery 3.7V 3500mAh Li-Poly (72 hours in standby mode)
 Keyboard 19 buttons: on-screen keyboard
 Operating System
 Environment Android 2.3 (multi-language)
 Dimensions
 21cm x 12cm x 1.4cm - 440g (including battery)
 Warranty
 12 months (optional -  24 months)
Refer to the "Available hardware configurations" that possibility is a version of the device. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

rfid 1d 2d skaner kodów kreskowych kolektory danych cilico cm700

go top... do góry menu… menu

The collection and processing of data

Barcode Reader

Quick and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes. 1D Barcode Reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities and the large range of reading data collector CILICO CM700 carefully collected data, which helps to increase the rate and efficiency. The whole can jump-start, because with simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy.

1D Laser (optional)
 Built-in 1D Laser Scanner
2D via Camera
 Reading 2D codes with the camera

skaner czytnik kodów kreskowych cilico cm700 GPS

RFID

RFID technology worldwide has aroused great interest. They are expected to solve the many problems with fast and unmistakable identification of people and equipment. Its development is more turbulent than being gradually implemented barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.

RFID HF
 HF:13.56M -  ISO14443A Protocol
RFID UHF (optional) UHF: 900MHZ

czytnik skaner rfid gps 3g gsm tablet usb kolektory danych

go top... do góry menu… menu

Modules and Wireless Networks

cilico cm700rfid kolektor danych

With HSDPA module, you need only insert a SIM card into a special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and customize mobile networks. Also used in the CM700 internal HSDPA module adapts automatically to transfer and network coverage.

WiFi 802.11b/g
GPS Built-in SIRF GPS
Bluetooth Bluetooth 2.1 + EDR Class 2
WCDMA GSM/GPRS/EDGE3G : WCDMA 2100MHz

3g sim tablet z sim kolektory danych cilico cm700

Multi-Connectors

Thanks to the full USB device is connected directly to the memory sticks and pointing devices. In addition, we rely on the following set of ports - power connector, microSD card slot, miniUSB and 3.5mm minijack socket (to which we can hook headphones, microphone or speakers). For computer hardware is recognized as a mass storage.

usb mini usb usb host klawiatura tablet kolektor danych cilico cm700

Applicable standards and tests carried out
 Operation -10°C -- +60°C
 Storage -20°C -- +65°C
 Humidity 5% -- 90% non condensing



hsdpa 3g gsm gprs usb host rfid keyboard camera flash cilico cm700

 Dimensions 21cm x 12cm x 1.4cm
 Weight 440g (including battery)

go top... do góry menu… menu

Available hardware configurations

Hardware configurations

If none of the available configuration does not interest you, you can always suggest your option components. Submit your suggestion using the contact form - up to 2 working days you will receive a valuation of the desired configuration. Remember to carefully specify each parameter and accessories.

v.1 v.2 v.3 v.4
WiFi
Bluetooth
GPS
GPRS/GSM
3G
RFID (HF)
RFID (UHF) - -
1D Laser
 - -
2D via Camera

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...
menu… menu

Durability: -----
Humidity: 5% -- 90% non condensing
Waterproof: -----
Weight:
Temperature: Operating (0°C -- +50°C) : Storage (-10°C -- +50°C)
Shock: -----
Vibration: -----
Drop: -----
Sand and dust: -----
1D barcode scanner (reader): Yes - Built-in 1D Laser Scanner
2D barcode scanner (reader): Yes - QR via Camera
RFID scanner (reader): HF:13.56M (ISO14443A Protocol)
UHF (920-925Mhz) - optional
reading distance - 4cm
Magnetic card reader (MSR): No
Microchip card reader: No
Docking station connector: No
VESA standard – holders and mounts support: No
COM port: No
Dispaly: 7" LCD (800 x480) Capacitive : Multi-Touch
Brightness: -----
Contrast: -----
Touch screen: Yes - Capacitive multi-touch
Graphics card: -----
Swivel Hinge: -----
VGA out: -----
TV Out: -----
TV Tuner: -----
Processor: Qualcomm MSM7227 ARM11 - 800MHZ
Chipset: -----
BIOS: -----
Memory: 512MB + 512MB
Hard Drive: 512MB + SD Card (possible to mount the sd card max.32GB)
Flash Memory:
Battery: 3.7V 1900mAh Li-Poly (72 hours in standby mode)
Working time on battery: over 72h of standby time : Charging time - 4h
HotSwap battery: No
Fast battery replacement ability: No
Size: 21cm x 12cm x 1.4cm - 440g (including battery)
Casing material: -----
Fanless casing: Yes
Operating System: Android 2.2 (multi-language)
LAN: -----
WLAN: Yes - IEEE802.11b/g
Bluetooth: Yes - Bluetooth Class 2.1 - EDR class2
WAN: GSM/GPRS/EDGE
WCDMA 900/2100MHz
GPS: Yes - SIRF GPS
Flash Card Reader: Yes - SD/Micro SD
CD/DVD: -----
Camera: Yes - 5Mpx - Auto-focus : LED Flash
Audio: Microphone output / 3.5mm Jack / Speaker (1w)
Seciurity: -----
In/Out: USB 1.1 Host : USB 2.0 Client : SIM
Keyboard: 19 keys : onscreen keyboard
Additional Navigation Devices : Sensors - Gravity : Electronic compass
Color: srebrny
Optional accessories: Warranty 24 months
Other: Charger (220V AC convert to 5V DC Adapter) : USB Cable : Warranty card


CURRENT PRICE
2463.01 € Net
3029.50€ Gross
