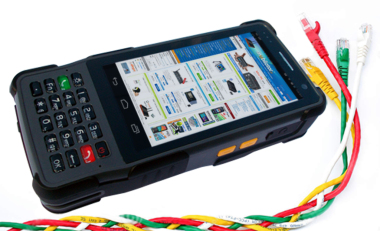

Multi Tester Senter ST327W a specially designed, reinforced structure, adapted for use in harsh environmental conditions. Similarly, the equipment produced for the military, meets the requirements of IP65. Thanks to this structure is resistant to dust and water. The device is performing perfectly in the home and industrial use.
|
Description |
|
Select the version for yourselfSelect the version tailored to their needs. Clicking on the number of hardware configuration you will be redirected to the product with the parameters listed below. On request can be created configuration available in the offer. The detailed parameters are available in the "Technical Data".
|
Connectors |
Multi Tester Senter ST327W a real "mega-machine". The device is equipped with a number of modules, testing and checking, eg. Internet connections. Below are presented and characterized the various connectors and modules.
Barcode readerBarcode reader allows to read, decode and transfer to your computer data stored in the bar code. With dynamic scanning capabilities and the large range of reading, data collector accurately collects data that helps improve the speed and efficiency. The whole can quickly start because thanks to simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy. LAN (2 x RJ-45)
Multi Tester Senter ST327W has 2 ports RJ-45, through which the device can be connected to the network using a network cable (twisted pair). These ports can also be used for testing and an Internet connection. Optical Power Control (OPM)
Optical port power control (OPM) is used to connect fiber optic interfaces for testing for optical power. By using diagnostic software installed on your device to test the power of fiber. Visual Fault Locator (VFL)
Visual Fault Locator (VFL) is connected to the fiber interface and using a red LED enables you to locate interruption or damage to the fiber.
|
Port RJ-45
Port used to check network connection. By connecting the twisted pair cable to this port, you can check the connection of individual wires in a bundle. Port RJ-11
Port for connecting the device to the telephone line to test the connection xDSL. This enables us to easily and quickly verify correct operation of the xDSL line with the software stored on the device.
Function buttons
The device is equipped with the function keys such as SCAN and RFID. SCAN function key is used to run the built-in barcode scanner and allows quick and easy to scan these codes. RFID function key is used to start the embedded RFID modules, and you can scan these codes, depending on the version. |
Quick exchange of batteryWith friendly construction equipment it is possible to quickly change the batteries. This is useful when working in the field and harsh environments, where the lack of additional tools and the necessary time.
more photos in the "Gallery" ...
specification of this version is available in the "Technical Data" ... |
Durability: | IP65 |
Humidity: | 5 - 95% |
Waterproof: | IP65 |
Temperature: | Operating temperature: -15°C -- +50°C Storage temperature: -30°C -- +60°C |
Shock: | ----- |
Vibration: | ----- |
Drop: | 1.2 meters |
Sand and dust: | IP65 |
1D barcode scanner (reader): | Yes |
Modules: | OPM (Optical Power Module) : VDSL2 |
RFID scanner (reader): | No - optional |
Docking station connector: | No |
VESA standard – holders and mounts support: | ----- |
Dispaly: | 5" (1280x720) TFT LCD : -capacitive |
Brightness: | ----- |
Contrast: | ----- |
Touch screen: | Yes |
Graphics card: | Qualcomm Adreno 203 |
VGA out: | No |
TV Out: | No |
TV Tuner: | No |
Processor: | Qualcomm Snapdragon 200 MSM8625Q - Quad (4x) 1.2Ghz |
Chipset: | ----- |
BIOS: | ----- |
Memory: | 1GB |
Hard Drive: | 8GB |
Battery: | 3.8V 8200mAh Li-Ion |
Working time on battery: | 9-11 hours |
HotSwap battery: | ----- |
Fast battery replacement ability: | Yes |
Size: | 181 × 87 × 45mm- 550g |
Casing material: | high quality plastic and rubber |
Fanless casing: | Yes |
Operating System: | Android 4.4.4 |
LAN: | Yes |
WLAN: | 802.11 b/g/n |
Bluetooth: | Bluetooth 4.0 |
WAN: | 2G:GSM 900/1800/1900 B2/B3/B8 3G:WCDMA: 850/1900/2100 B1/B2/B5 4G:LTE_ FDD: 1800/2100/2600 B1/B3/B7 LTE_TDD :2555-2655MHz/:2300-2400MHz B41/B40 |
GPS: | Built-in + A-GPS |
Flash Card Reader: | microSD (max. 32GB) |
CD/DVD: | ----- |
Camera: | Yes - 8Mpx (Auto-Focus + LED Flash) |
Audio: | AudioJack : Built-in Speaker : Microphone |
Seciurity: | IP65 |
In/Out: | Card Reader MicroSD : Micro USB : 2x LAN RJ-45 : 2x RJ-11 |
Keyboard: | Numeric (+ function keys) : On-screen |
Additional Navigation Devices : | ----- |
Color: | yellow-gray-black |
Optional accessories: | ----- |
Other: | ----- |
Modules - optional: | ADSL2 : Cable Tracing : DMM : IPTV : ONU : VFL Module |
CURRENT PRICE |
|
3114.20 € | Net |
3830.47€ | Gross |
