Small dimensions industrial computers excel in environments where dust, dirt and moisture predominate. They are ideal for applications requiring quiet operation. Small and reliable MiniPC use heat-pipe technology and aluminum fins for passive cooling. The robust mini Industrial Computer IBOX 101 is a device designed for all industrial and non-continuous applications requiring continuous operation - 24 hours, 7 days a week.









SPECIFICATION

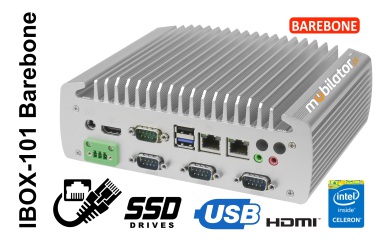

Mini-PC IBOX 101
Processor	Intel Celeron J1900 Quad Core | 1.99 GHz | TDP:10W
Operation system	Support:  Windows 7/8/10 Linux
RAM	Brak (2 | 4 | 8 GB  SODIMM DDR3L) *
Drive	None (SSD: 64GB | 128GB | 256GB |512GB)*
Graphic card	Integrated Graphic Card
Connectivity	WiFi * 3G * 4G * LAN: 2 x Intel i211-AT 1000M LAN
Front panel	4xUSB 2.0 | 2xCOM | Power button
Rear panel	1xUSB 3.0 | 1xUSB 2.0 | 2xLan  | 1xHDMI 4xCOM (COM1, COM2, RS232/485 Optional)
Available colors	Silver
Dimensions	186 x 150 x 66 mm
Weight	1.6 kg





* Optional equipment, available only in other versions of the device.













The industrial mini-computer IBOX 101 uses an efficient and energy-saving Intel Celeron J1900. Inside it there are four cooperating cores enabling more efficient processing of many tasks at the same time. The shared cache memory in which the multilevel hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.















Thanks to the small dimensions of the MiniPC, the IBOX 101 is versatile for use at home, in the office and in the industry, for example in the production hall. It's literally everywhere, and it can be mounted on the back of the monitor to optimize the job.







Dimensions	186 x 150 x 66 mm
Weight	1.6 kg







The industrial Mini PC uses a proven cooling system, based only on solid elements, mainly heat sinks. The system uses the phenomenon of metals passing thermal energy into the environment - there are no additional moving elements in the form of eg fans. This solution ensures noiseless operation, lower failure rate and greater protection against dust and other dirt while reducing the amount of energy consumed.



do góry…    menu…



Resistance and durability











IBOX 101 is designed for continuous operation in both very low and high temperatures ranging from -10 °C to 60°C. If the device is switched off, it can already handle temperatures in the range of -10 ° C to 60 ° C.



Work temp.	-10°C do 60°C
-	-
Humidity	5% ～ 95% Non-Condensing







The passive cooling system used in the MiniPC IBOX 101 combined with the SSD* disk makes this computer very resistant to various types of mechanical injuries. An additional advantage of industrial computers is a solid construction made of high quality aluminum and specially designed in such a way that in addition to high efficiency in heat dissipation, it can also resist any external damage.

do góry…    menu…


connectivity and communication







The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. Industrial mini-PC IBOX 101 has been equipped the standard of  - 802.11n, which allows transfer of files at a dizzying speed of up to 300 Mb / s.



The MiniPC IBOX 101 has built-in Realtek network adapter that can work in a fast Gigabit Ethernet network.







do góry…    menu…



device application





Mini PC is an ideal tool to support us in the implementation of many activities in the field of trade, small dimensions increase the possibility of its adaptation to activities such as issuing invoices or preparing documentation, which in turn allows us to convenient and optimal sales management. The VESA holder mounted to the housing provides many installation options, eg in stores (at the cash register, under the desktop), in factory halls or in a delivery truck.









Thanks high performance an industrial computer can be used to connect multiple devices in a warehouse and make their management much easier. Its rugged casing and the fanless cooling system are ideal for harsh environments in such rooms. The solid construction guarantees long-lasting work, even in environments with high dustiness and dirt.





A small industrial computer can be used in transport thanks to the ability to work on 12V power supply. Then the mini computer can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. It allows you to inform the driver about the current state of the vehicle, transfer its current location to the management center, display information for passengers, etc. It performs well in vehicles where small dimensions are important.



do góry…    menu…

available versions



The industrial mini-computer IBOX 101 is offered in several versions to suit different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.
