Taiwanese company i-Mobile has an excellent reputation Achieved as a manufacturer of industrial mobile computers. Due to the high position of products in the segment of high-tech, have won many awards in tests Conducted around the world. .jpg) |
|

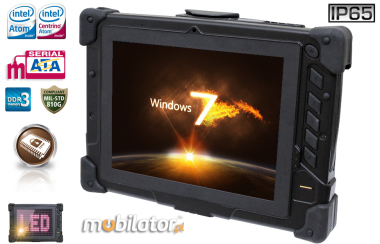

i-Mobile IC - 8 is unrivaled in the market, ultra-modern, armored tablet meets the very stringent industry standards. Very rich furnishings, combined with affordable prices make it the perfect solution where require high performance, flexibility and strength equipment. |
Warranty
Devices i-Mobile's standard with 1 year warranty, OPTIONALLY you can change the warranty period for 2 years. Any minor repairs are Carried out on the site in Poland. Defects requiring intervention in the components end up in haste to the main website i-Mobile Technology in Taiwan.
|
|
The high performance processor |
|
.gif){kind=small} .jpg){kind=small} |
Intel® Atom™ Dual N2600 |
 Dual-Core Intel ® Atom ™ N2600 is one of the fastest processors for tablets, netbooks and nettops. The use of dual-core processor made the IC model - 8 is a top-class product in the category of industrial tablet. N2600 Dual Processor Provides a very good performance in such a small tablet, IC - 8 fast processor will allow for smooth operation of the device at all times.Tablet is also equipped with Intel NM10 chipset and 2GB of RAM type DDR3 SODIMM. Super fast mSATA SSD drive.jpg)
Use your mSATA SSD 32GB (max - 256GB) on which you can install the system and frequently used applications. This approach leads to a super-fast operation of your computer. The speed of operations carried out applications installed on the mSATA drives can be increased up to 50%.
Advanced display technology |
|
|
|
|
The display of the image corresponds to the 8-inch full touch screen (1024 x 768 XGA) LED-backlit display with Sunlight Readable Technology (500nit), Which uses reflected light beam as a light sensor - the bigger the better backlight illumination sensor. The Resulting display bright and is easy to read even in direct sunlight encounters..
|
.jpg) |
 |
With the hot-swap There is a possibility to connect an additional battery quickly without shutting down the operating system. Additional optional battery extends the life of half a standard battery.
|
|
|
Functionality |
Barcode Reader
|
 Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 2D barcode reader allows you to read, decode and send to your data stored in the bar code.With dynamic scanning capabilities and wide range of reading-Mobile device and IC-8 quickly and accurately retrieves the data, which helps to increase the rate and efficiency. You can jump-start a whole because with simplified installation procedure and intuitive, comfortable design to prepare the scanner to work is very easy.
RFID Reader
|
 RFID technology has aroused great worldwide interest. Is expected to solve many of the problems with fast and faultless identification of people and equipment. Its development is more turbulent than gradually Introduced barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading the details of the special tags are attached That is the object (but not only, because RFID is also applicable to the identification of the animals, and even humans) is by radio. Depending on the type of tag changes the amount of information Which can hold as well as the maximum distance from Which to read data. RFID tags, is an alternative to bar codes - more comfortable and more efficient.
Magnetic Card Reader
|
.jpg) Card Readers i-Mobile are the products meet the safety criteria Highest during reading. Architecture on Which readers are created to efficiently protect your personal information encoded on the cards. High safety standards allow readers to use Virtually all types of applications. Read the safety data confirms compliance with the ISO 7816 standard for encryption. |
|
Tablet IC-8 is equipped with a magnetic card reader (MSR) for reading and encoding cards in accordance with ISO 7811. The robust plastic housing, easy integration with existing systems, fast read and write magnetic heads that make it the perfect choice.
Magnetic card reader writes to all 3 tracks magnetic, so you can use it for all major card types (such as credit, debit, staff and membership cards, loyalty card systems, etc.)
Smart Card Reader
The smart card reader Enables the secure electronic transactions through the use of digital signatures and certificates to enhance secure transactions through public and private networks. With easy access to the smart card reader you can use it in many different ways, Regardless of Whether you use it for authentication, data retrieval and verification of Their correctness, or is it the use of embedded applications. Smart cards are typically used by the departments of information technology (IT) in large Organizations. This internal device for reading and writing smart cards is reliable and easy to use, and Provides That support for applications require high-speed data from a smart card to the computer. The unit Complies with all major standards for use in companies, making it the perfect alternative to external devices That read and write smart cards.
Modules and Wireless Networks.jpg)
|
go top...  menu… |
SafetyFingerprint
Fingerprint security feature makes our Tablet Becomes even more personal, Allows you to secure the device fingerprint. This is possible through the use of a small fingerprint scanner. Solutions of this kind are very effective at securing devices containing important data and confidential and also allow for easy and quick log-in to the system. It is an ideal solution for business use, when we need to Effectively protect your data.
TPM (Trusted Platform Module)
Use of the device |
|
|
|
Protection Standards |
|
High Temperature: MIL-STD 810G Method 501.5
This test procedure determines a computer’s operating performance during exposure to high temperature conditions. The operational test differs from the storage test in that the computer is evaluated while conditioned to elevated temperatures determined to be applicable to, or resulting from, exposure in its operational configuration.
Low Temperature: MIL-STD 810G Method 502.5
This test determines the performance of the computer during exposure to low temperature conditions. The operational test differs from the storage test in that the computer is evaluated under cold conditions determined to be applicable to, or resulting from, exposure in its operational configuration.
Temperature Shock: MIL-STD 810G Method 503.5
Temperature shock tests determine if an item can withstand sudden changes in the temperature of the surrounding atmosphere without experiencing physical damage or deterioration in performance.
The two objectives of the temperature shock test are set to determine whether the test item can still a) be safely operated, and b) satisfy its performance requirements, after being exposed to sudden changes in temperature of the surrounding atmosphere.
Rain: MIL-STD 810G Method 506.5
Rain Resistance tests are performed to determine the resistance to rain and wind-driven rain.
Drop: MIL-STD 810G Method 516.6
Free fall drop tests (shock) are performed to ensure that equipment can withstand relatively infrequent, non-repetitive shocks or transient vibrations encountered during handling, transportation, and normal service. The standard requires 26 drops from 1.2 m (4 ft) onto plywood, using up to 5 units.
Resistance IP65
IP Degrees is a classification of different levels of protection of electrical equipment That Are provided by enclosures of these devices According to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, dry as dust. The second digit is a degree of protection against water.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Connectors |
|
I - Mobile IC-8 is an industrial tablet That Will Satisfy every user. Experience the diverse requirements The The of the customers and extensive cooperation with the Taiwanese manufacturer has created a unique device the Polish and global markets. In the back of the tablet and stylus located conveniently find That will help us to use the IC - 8 with greater precision. Neatly hidden internal antenna GPS will find Their Way in every area, and the battery indicator will Contribute to the accurate assessment of a possible operation on a removable battery. Located in the upper right corner of 5M CMOS camera with built-in LED flash Allows you to take photos in excellent quality.
That Facilitate the use of the device the user can define tasks for the selected keys were located in the right side of the tablet (Hotkey). Whereas full mobility and multitasking tablet device is equipped with a front camera for video conferencing Allows and fingerprint reader (fingerprint) access restriction ensures full data to unauthorized persons.
2D barcode reader and MSR card reader is located in the upper part of the tablet industry I - MOBILE IC-8, in order to Provide convenience in daily use in any position. The lower part was reserved for the dock connector through Which the tablet can benefit from its functionality.
In the absence of wireless I-MOBILE gives us the ability to connect to the network the traditional way. All inputs are hidden under the rubber gasket to the ensure the Highest standard of immunity. IC-8 and the digital signal transmission by using the HDMI link, which is a great advantage with regard to the size and quantity of the hardware modules.
Hardware configurations available
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ... |
|
menu… |
| Durability: | Yes - MIL-STD 810G |
| Humidity: | Yes - 0% ~ 95% |
| Waterproof: | Yes - (IP65) IEC 60529 / AC2:2007 |
| Weight: | |
| Temperature: | Operating: -10° –– +50°C ; Storage: -20°C –– +70°C |
| Shock: | Yes - MIL-STD-810G |
| Vibration: | Yes - MIL-STD-810G-514.6 Procedure I Cat.24 (Non-operating) |
| Drop: | Yes - MIL-STD-810G Method 516.6 Procedure IV |
| Sand and dust: | Yes - (IP65) IEC 60529 / AC2:2007 |
| 1D barcode scanner (reader): | none (available in other configurations) |
| 2D barcode scanner (reader): | none (available in other configurations) |
| RFID scanner (reader): | none (available in other configurations) |
| Magnetic card reader (MSR): | none (available in other configurations) |
| Microchip card reader: | none (available in other configurations) |
| Docking station connector: | Yes - 1 x 24 pin docking connector (interface include Power, USB , Audio) |
| VESA standard – holders and mounts support: | Yes |
| COM port: | Yes - RS232 (DB9 full function connector) |
| Dispaly: | TFT LCD 8" (1024 x 768 XGA) LED Sunlight Readable |
| Brightness: | 500 nits Sunlight Readable |
| Contrast: | 1000:1 |
| Touch screen: | Yes - Resistive-Capacitive Touch |
| Graphics card: | Integrated 400Mhz |
| Swivel Hinge: | No |
| VGA out: | No |
| TV Out: | No |
| TV Tuner: | No |
| Processor: | Intel® Atom™ Dual N2600 (1M Cache, 1.6 GHz) |
| Chipset: | Intel Express Chipset NM10 |
| BIOS: | Phoenix |
| Memory: | 2GB DDR3 (DDR3 SO-DIMM / max 2GB) |
| Hard Drive: | 32GB mSata SSD |
| Flash Memory: | |
| Battery: | Internal Battery, one cell DC3.7V / 920mah ; External 3S2P , 6 Cell, DC 11.1V/6200mAh Support Hot-swap |
| Working time on battery: | 480 minutes (8h) |
| HotSwap battery: | Yes |
| Fast battery replacement ability: | Yes |
| Size: | 251 x 181 x 30 (mm) (9.8" x 7.1" x 1.1") - 1.3kg (2.8lbs) with batteries |
| Casing material: | |
| Fanless casing: | Yes |
| Operating System: | Yes (option) - Windows 7 / Windows 7 Embedded Standard 7 / Linux |
| LAN: | Yes - 10/100 Ethernet Support POE (Power-Over-Ethernet applications up to 25.5W) |
| WLAN: | Yes - WLAN 802.11 b/g/n |
| Bluetooth: | Yes - Bluetooth 3.0 |
| WAN: | Yes - 3.5G+GSM |
| GPS: | Yes - Built-in (High performance positioning engine. Support 50 channels GPS L1 Frequency , C/A Code. SBAS: WAAS/EGNOS/MSAS) |
| Flash Card Reader: | Yes - MicroSD |
| CD/DVD: | No |
| Camera: | Yes - Front (2M) & Rear (5M) dual CMOS Camera |
| Audio: | Built-in speaker and microphone |
| Seciurity: | Yes - Fingerprint, TPM 1.2 |
| In/Out: | 2x - USB 2.0 / DC Power Input (16V/4A) / 1x - DB-9 RS232 Full connector / 1x - Micro Secure Digital (SD) card slot / 1x - 24 pin docking connector / 1x - 10/100 Ethernet (Support POE) / 1x - SIM socket / 1x - Mini HDMI connector |
| Keyboard: | No - Function keys |
| Additional Navigation Devices : | Yes - Function keys |
| Color: | Black |
| Optional accessories: | Additional external battery 6100 mAh / Vehicle & Wall mount VESA / Docking station (4x USB ; 1x RS232 ; 1x VGA ; 1x RJ45 ; 1x DC in ; 1x Earphone ; 1x Microphone ; Battery charging bay) |
| Other: | Stylus , Shoulder strap , Hand strap |
CURRENT PRICE |
|
| 5794.23 € | Net |
| 7126.90€ | Gross |
.jpg)
The first digit in the range 0 to 6 the resistance to dust and the other in the range 0 to 8 the resistance of the water.
