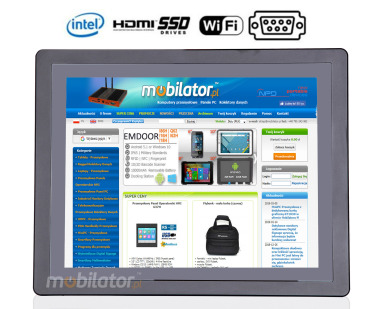

Industrial PC panels are integrated devices consisting of a PC computer and a touch monitor. Due to their design, they can work even under severe conditions prevailing in industrial environments, such as high humidity, high dustiness, contact with water or very low or high temperatures. These panels are characterized by high efficiency and stability of operation in all conditions.
.png)
.png)
| Performance | |
|---|---|
| Processor | Intel Core i5 (2x 2.00 GHz) |
| Graphics card | Intel HD Graphics |
| Operating system | Windows 7/8/10/CE | Linux |
| RAM | 4 GB DDR3L |
| Drive | SSD: 128 GB |
| Display | |
| Screen | 15" (1024x768) |
| Touch screen | capacitive |
| Brightness | 350cd/m² |
| Screen ratio | 4:3 |
| View angle | Full |
|
Touch screen lifetime |
>50.000.000 |
| Interfaces | |
| Communication |
LAN: Intel ® 211AT Gigabit Ethernet WiFi: 802.11a/b/g/n |
| Connectors |
2x USB 2.0 | 2x USB 3.0 | 3x COM (RS232) 1x COM (RS485) | 2x Gigabit LAN 1x VGA | 1x HDMI 1x Audio | 1x Mic | 2x Spk (2W) DC-12V |
| Other | |
| Dimensions | 368 x 300x 67.5 mm |
| IP Norm | IP 65 on front panel |
| Casing material | Aluminum alloy |
* Optional equipment, available only in specific versions of the device.
The dust-proof industrial PC panel uses an efficient and energy-saving Intel Intel Core i5 processor. In its interior there are two cooperating cores enabling more efficient processing of many tasks at the same time. Shared cache memory in which a multi-level hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory. Improved graphics card technology allows you to enjoy movies at full resolution and HD quality.
Amplified, waterproof industrial computer CCETouch has a water-resistant and scratch-proof 15" LED screen 1024x768 resolution offers good image quality, and high brightness in the 350 cd/m² range gives better color saturation and contrast and allows significantly improved visibility even in the case of incident The display of the resistive type provides the user with a clear image and ease of use by touch.
The capacitive screen consists of a glass coating that is covered with an insulator. Touching the surface of the touch pad with your finger causes a disturbance in the flow of electric current. This display provides very good visibility under industrial conditions. The panel can be operated with one finger or conductive material (special glove). This type of screen provides support for multi-touch technology, which is a clear convenience during work. This is due to the fact that a large number of electrodes allows accurate detection of many points of touch. You do not have to use a stronger pressure for capacitive screens, because you only need to lightly brush the screen with your finger to make the device react.
Panel PC has a high quality casing made from aluminum alloys. It is a very crucial component of cooling system thanks to openings allowing air flow inside casing, specially important in a passive system. Overall design concentrates on simplicity and functionality which are in high demand amongst professionals.
IP65 norm is granted to devices which pass series of specialist tests exploring their durability for dust and water. IP norm consist of two digitals. First means the level of dust resistance, second to water.
|
The first digit [x] Protection against solid objects |
Protection Level |
The second digits [y] Protection against liquids |
|---|---|---|
|
No special protection |
 |
No special protection |
| Protection from solid objects greater than 50mm in diameter |
.png) |
Protection from dripping water |
| Protection from object not greater than 12mm in diamete |
 |
Protection from vertically dripping water (tilted up to 15°) |
| Protection from object not greater than 2,5mm in diameter |
 |
Protection from sprayed water (tilted up to 60°) |
| Protection from object not greater than 1mm in diameter |
 |
Protection from splashed water |
| Complete protection against contact, Protection against dust deposit |
 |
Protection from water projected from a nozzle |
| Complete protectionm against contact, Protection from infiltration of dust |
 |
Protection against heavy seas, or powerful jets of water |
.png) |
Protection against immersion | |
.png) |
Protection against complete, continuous submersion in water |
PanelPC CCETouch is adapted for continuous operation in both very low and high temperatures in the range from -10 ° C to 60 ° C. If the device is switched off, it can already handle temperatures between -20 ° C and 85 ° C. In addition, the durable PanelPC is perfect for rooms with increased humidity, ensuring proper functioning even in the case of 95% relative humidity.
| Work temp. | 0°C to 60°C |
| Storage temp. | -20°C to 85°C |
| Humidity | 0% - 95% |
The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. The shockproof industrial panel CCETouch has been equipped with standards - 802.11n, which allows transfer of files at a dizzying speed of up to 150 Mb/s.
| Standards | 802.11a/b/g/n |
| Frequencies | 2.4GHz | 5GHz |
.jpg)
PC Panel is widely used primarily in the commercial industry, for example for controlling the sales system, displaying product information on monitors or advertising on large screens. With the VESA holder in the housing there are many possibilities for its assembly, eg in stores (at the cash register) in factory halls, in a car delivering products, etc. It will certainly be used in all types of retail chains.
The industrial panel computer thanks to the RS232 & RS485 interface can be used to connect many devices in the warehouse and facilitate their control. And its rugged housing is ideally suited to the harsh conditions prevailing in such rooms. No dust or dirt will prevent him from working, he will work without complaints even in a large dusty and dirty environment.
Panel computers can be used in transport by adapting it to work on 12V power supply. Then Panel PC can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. Thanks to the integrated monitor, these panels perform very well in vehicles where mobility and the small size of the device are important.
Industrial Panel PC CCETouch is offered in several versions adapted to different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.
[tab_wersja_id_219]
| Screen size: | 15" |
| Resolution: | 1024x768 |
| Aspect ratio: | ----- |
| Touchscreen: | capacitive |
| Chipset: | Intel Core |
| CPU Support: | Intel Core i5 (2x 2.00 GHz) I5-6360U |
| Installed CPU: | Intel Core i5 (2x 2.00 GHz) I5-6360U |
| Memory Support: | DDR3L SO-DIMM (max. 8GB) |
| Installed Memory: | 4GB |
| Graphic Card: | Intel HD Graphics |
| Audio: | ----- |
| Storage (HDD) Support: | SSD |
| Installed Storage (HDD): | 128 GB SSD |
| CD/DVD Drive: | ----- |
| LAN: | Intel ® 211AT Gigabit Ethernet |
| Wireless LAN card: | 802.11 a/b/g/n |
| Bluetooth: | No |
| 3G: | No |
| 4G LTE: | |
| GPS: | ----- |
| TV Tuner: | ----- |
| Watch Dog Timer: | ----- |
| Ports - front panel: | ----- |
| Ports - rear panel: | DC-IN VGA 2x USB 2.0 2x USB 3.0 2x LAN 2x HDMI Audio Mic 3x RS232 RS485 |
| Ports - left panel: | ----- |
| Ports - right panel: | ----- |
| Power: | 12V DC-in |
| Supported OS: | Windows 7/8.1/10 | Linux |
| Installed OS: | ----- |
| Dimensions: | 368 x 300x 67.5 mm |
| Weight: | 5.5 kg |
| Expansion: | ----- |
| Fanless: | Yes |
| Humidity: | 0%~ 95% |
| Temp: | 0°C ~ 60°C |
| Storage Temp: | -20°C ~ 85°C |
| IP Norm: | IP65 |
| IP Level (back panel): | ----- |
| IP Level (front panel): | IP65 |
| Dual display: | Yes |
| Response time touch-panel (ms): | <10 |
| Contrast Ratio: | 1000:1 |
| Brightness: | 350 cd/m2 |
| Viewing Angle: | Full |
| Backlight MTBF: | LED |
| Color Resolution: | ----- |
| Surface hardness (display): | ----- |
| Touch Life(contacts): | ----- |
| Housing material: | Aluminium |
| Mounting VESA: | Yes |
| Folding Bracket (for office type working): | ----- |
| Power Consumption: | ----- |
| Others: | Color Black |
| Anti-vibration: | ----- |
| Anti-shock: | ----- |
| RFID scanner (reader): | ----- |
| Barcode reader: | ----- |
CURRENT PRICE |
|
| 3590.37 € | Net |
| 4416.16€ | Gross |
