Rugged Smartphone CILICO CM380 v.2
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/cilico-cm380-v.2-produkt-86037.html

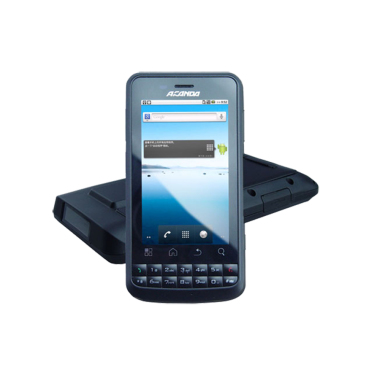

Rugged Smartphone CILICO CM380 v.2

kolektor danych ip65 cilico 3g rfid barcode
Company CILICO achieved an excellent reputation as a manufacturer of industrial mobile computers. Due to the high position of the products in the high-tech, have won many awards in tests conducted around the world.

Description

Industrial Mobile Phone

telefon wytrzyma³y ip65 3g rfid kolektory danych

CM380 offers a new level of functionality and flexibility handy mobile devices. It combines the function of a mobile phone, barcode scanner, RFID and camera. This is a very flexible device provides mobile workers to voice communications and data to enhance your work, increase productivity, reduce response time and improve the quality of customer service - both in the office and in the field. The device of CILICO not fail in the field, on the site, or while playing sports, including extreme. It features an impact-resistant case allows intensive use.
System specifications
  Processor Qualcomm MSM7227 ARM11 800MHZ
 GPU Andreno 200
 Display 3.8" (800x480) Capacitive - Multi-touch : Gorilla Glass
 RAM 512MB
 ROM 512MB
 Connectors Micro USB : SIM : SD (max.32GB)
 Audio Microphone : Speaker : 3.5mm Jack
 Battery 3.7V 1900mAh Li-Poli (72 hours in standby time)
 Keyboard numeric : alphabetic x12
 Camera 3Mpx : LED : autofocus
 Sensors Gravity : Light : Distance : Electronic Compass
 Readers RFID : 1D Barcode Scanner (option) : QR 2D via Camera
 Modules WiFi : Bluetooth : GSM/GPRS/WCDMA
 Operating system
 Android 2.2
Refer to the "Available hardware configurations" that possibility is a version of the device. To gain additional information about the product click on the "Ask about the product" or go to the contact form

Gorilla Glass

More and more manufacturers in their production reaches the glass, which is to protect the screen from scratches, cracks or zgnieceniami. The best material on the market today that meets these requirements, it is Gorilla Glass. The use of this technology in the recent product of CILICO guarantees operation for many years.
telefon gorilla glass przemys³owy kolektor danych

The collection and processing of data

telefon wodoodoporny ip65 cilico cm380

1D Barcode Reader

Quick and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes. 1D Barcode Reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities and the large range of reading data collector CILICO CM380 carefully collected data, which helps to increase the rate and efficiency. The whole can jump-start, because with simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy.

1D Laser

Code 39 : Codebar : Code 128 : Discrete 2 of 5 : IATA 2 of 5 : Interleaved 2 of 5 : Code 93 : UPC A : UPC E0 : EAN 8 : EAN 13 : MSI : EAN 128 : UPC E1 : Trioptic Code 39 : Bookland EAN : Coupon Code : RSS-Limited : RSS-14 : RSS-Expanded
2D
 QR via Camera

telefon tablet przemys³owy wytrzyma³y IP65 cilico CM380 kolektor danych RFID

Modules and Wireless Networks

RFID HF:13.56M (ISO14443A Protocol) : reading distance - 4cm
WiFi 802.11b/g
Bluetooth Bluetooth Class2.1 with EDR
GPS SIRF GPS
WCDMA 2100/900MHz

go top... do góry menu… menu

Minimalism



kolektor danych

CM380 is equipped with a Micro USB port / SD card reader, Barcode Scanner 1D and RFID . The possibility of recording enables integrated 3Mpx camera with autofocus. To facilitate the use of the device you will have a numeric keypad in addition alphabetical can define the keys for specific tasks (hotkey).

telefon ip65 kolektor danych android rfid barcode scanner gorilla glass

 Dimensions 152x68x27mm
 Weight 150g (including battery)



gorilla glass telefon cilico cm380 kolektory danych rfid barcodescanner android



Standards

cilico rfid barcode scanner telefon wytrzyma³y odporny 3g wcdma gprs gsm

Standards
 Operating -10°C -- +60°C
 Storage -20°C -- +65°C
 Humidity 5% -- 95% bez kondensacji
 Dust IP6x (kurz)
 Water IPx5 (woda)
 Drop Wielokrotne upadki na beton 4ft./1.2m w ca³ym zakresie temperatur pracy
 Regulatory CCC / CE / FCC



cilico cm380 resistance ip65

Resistance IP65

Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.
The first digit [x]
Protection against solid objects		   The second digits [y]
Protection against liquids
No special protection
0

0
No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1

Protection from dripping water
Protection from object not greater than 12mm in diamete
2

2
Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3
Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4
Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5
Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6
Protection against heavy seas, or powerful jets of water


7
Protection against immersion


8

Protection against complete, continuous submersion in water

Available hardware configurations

 Hardware configuration

If none of the available configuration does not interest you, you can always suggest your option components. Submit your suggestion using the contact form - up to 2 working days you will receive a valuation of the desired configuration. Remember to carefully specify each parameter and accessories.

v.1 v.2
WiFi
Bluetooth
Android
Kamera
2G
3G
GPS
RFID
1D -



more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...
menu… menu

Durability: IP65
Humidity: 5% -- 95% non condensing
Waterproof: IP65
Weight:
Temperature: Operating (-10°C -- +60°C) / Storage (-20°C -- +65°C)
Shock: -----
Vibration: -----
Drop: multiple drops to concrete: 1.2m across the operating temperature range
Sand and dust: IP65
1D barcode scanner (reader): Yes - Code 39 : Codebar : Code 128 : Discrete 2 of 5 : IATA 2 of 5 : Interleaved 2 of 5 : Code 93 : UPC A : UPC E0 : EAN 8 : EAN 13 : MSI : EAN 128 : UPC E1 : Trioptic Code 39 : Bookland EAN : Coupon Code : RSS-Limited : RSS-14 : RSS-Expanded
2D barcode scanner (reader): Yes - QR via Camera
RFID scanner (reader): Yes - HF:13.56M (ISO14443A Protocol) : reading distance 4cm
Magnetic card reader (MSR): Nie
Microchip card reader: Nie
Docking station connector: No
VESA standard – holders and mounts support: No
COM port: No
Dispaly: 3.8" (800x480) Capacitive - Multi-touch : Gorilla Glass
Brightness: -----
Contrast: -----
Touch screen: Yes - Capacitive multi-touch (Gorilla Glass)
Graphics card: Adreno 200
Swivel Hinge: No
VGA out: -----
TV Out: -----
TV Tuner: No
Processor: Qualcomm MSM7227 ARM11 - 800MHZ
Chipset: -----
BIOS: -----
Memory: 512MB DDRAM+512MB FLASH
Hard Drive: 512MB + SD Card (possible to mount the sd card max.32GB)
Flash Memory:
Battery: 3.7V 1900mAh Li-Poli
Working time on battery: 12 hours : over 72h of standby time : Charging time - 5-6h
HotSwap battery: No
Fast battery replacement ability: No
Size: 152x68x27mm -150g (including battery)
Casing material: -----
Fanless casing: Yes
Operating System: Android 2.2 (multi-language)
LAN: No
WLAN: Yes - IEEE802.11b/g
Bluetooth: Yes - Bluetooth Class 2.1 - EDR class2
WAN: Yes -
GSM 850/900/1800/1900
WCDMA 900/2100MHz
GPS: Yes - SIRF GPS
Flash Card Reader: Yes - SD/Micro SD
CD/DVD: -----
Camera: Yes - 3Mpx autofocus : LED Flash
Audio: Microphone / Loudspeaker / 3.5mm Jack
Seciurity: -----
In/Out: Micro USB : Micro SD : SIM : 3.5mm audio jack
Keyboard: numeric : alphabetic x12 / directional x4 / function x10 / scan button
Additional Navigation Devices : Sensors - Gravity : Light : Proximity : Electronic compass
Color: czarny
Optional accessories: Warranty 24 months
Other: Charger : USB Cable : User Guide : Warranty card : Certificate of Approva


CURRENT PRICE
2463.01 € Net
3029.50€ Gross
