Fanless industrial mini computer IBOX-603 i3 6100U v.3
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/bezwentylatorowy-przemyslowy-mini-komputer-ibox-603-i3-6100u-v.3-produkt-91473.html

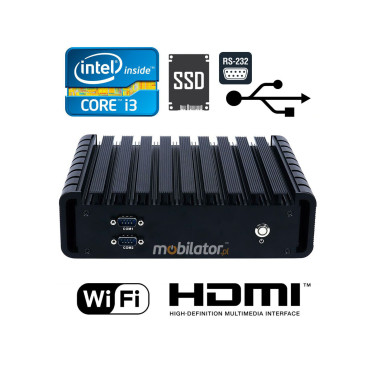

Fanless industrial mini computer IBOX-603 i3 6100U v.3

MiniPC IBOX 603 Fanless Small Computer





Small dimensions industrial computers excel in environments where dust, dirt and moisture predominate. They are ideal for applications requiring quiet operation. Small and reliable MiniPC use heat-pipe technology and aluminum fins for passive cooling. The robust mini Industrial Computer IBOX 603 is a device designed for all industrial and non-continuous applications requiring continuous operation - 24 hours, 7 days a week.




Small dimensions
The compact housing means that the Mini PC will fit wherever you need it and is easy to carry.
Lightweight design
The computer's weight does not exceed 2.0 kg, so it can be conveniently carried in a bag or backpack.



Efficent components
The Intel Core i3 6100U duo-core CPU provides improved device performance.

Wireless network
The mini PC can be connected to nearby wireless networks by equipping it with an optional Wi-Fi module.




Quick start
A modern SSD drive will increase the speed of application programs and ensure quiet computer operation.
Passive cooling
The use of passive cooling in the Mini PC ensures silent operation and slows dust deposition.









SPECIFICATION



Mini-PC IBOX 603
Processor Intel Core i3 6100U (2x 2.30GHz) SmartCache 3MB
Operation system

Support:  Windows 7/8/10

Linux

RAM 8GB  DDR4 SO-DIMM
Drive

128GB SSD

Graphic card Intel HD Graphics 520
Connectivity

WLAN:  Intel 6205 Dual-Band | 802.11 b/g/n

LAN: 5x Intel i211-AT Gigabit Ethernet

Front panel Power ON | 2x COM (RS232)
Rear panel 5x LAN  |  1x HDMI  |  1x VGA  |  4x USB 3.0  |  1x SIM  |  1x DC 9~36V
Available colors Black
Dimensions 237 x 164 x 70.5mm
Weight 1.6 kg



Detailed device specification is available in the "Technical data".



Efficient processor



MiniPC IBOX 603 Small Industrial Computer Intel Core i3 4010Y processor





The industrial mini-computer IBOX 603 uses an efficient and energy-saving Intel Core i3 6100U processor. Inside it there are four cooperating cores enabling more efficient processing of many tasks at the same time. The shared cache memory in which the multilevel hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory. The implemented Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.






Interfaces













MiniPC IBOX 603 Mic Audio USB3.0 USB2.0 connectors













MiniPC IBOX 603 Light Small Computer WiFi WiFi LAN HDMI Power











Dimensions









MiniPC IBOX 603 Rapid Small Computer with small dimensions 136mm x 128mm x 44mm









Thanks to the small dimensions of the MiniPC, the IBOX 603 is versatile for use at home, in the office and in the industry, for example in the production hall. It's literally everywhere, and thanks to the VESA mount it can be mounted on the back of the monitor to optimize the job.





Dimensions 237 x 164 x 70.5mm
Weight 1.6 kg



Passive coolong









The industrial Mini PC uses a proven cooling system, based only on solid elements, mainly heat sinks. The system uses the phenomenon of metals passing thermal energy into the environment - there are no additional moving elements in the form of eg fans. This solution ensures noiseless operation, lower failure rate and greater protection against dust and other dirt while reducing the amount of energy consumed.




do góry… do góry   menu… menu



Resistance and durability









MiniPC IBOX 603 The efficient small industrial computer working temperature storage temperature humidity without condensation








Temperatures



IBOX 603 is designed for continuous operation in both very low and high temperatures ranging from 0 ° C to 50 ° C. If the device is switched off, it can already handle temperatures in the range of -20 ° C to 60 ° C.




Work temp. 0°C do 50°C
Storage temp. -20°C do 60°C
Humidity 5% do 95%



Mechanical damage





The passive cooling system used in the MiniPC IBOX 603 combined with the SSD disk makes this computer very resistant to various types of mechanical injuries. An additional advantage of industrial computers is a solid construction made of high quality aluminum and specially designed in such a way that in addition to high efficiency in heat dissipation, it can also resist any external damage.


do góry… do góry   menu… menu


connectivity and communication



Wireless network (Option)





The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. Industrial mini-PC IBOX 603 has been equipped the standard of  - 802.11n, which allows transfer of files at a dizzying speed of up to 300 Mb / s.



Wired LAN Network





The MiniPC IBOX 603 has built-in Intel network adapters that can work in a fast Gigabit Ethernet network.


MiniPC IBOX 603 Industrial professional small fanless computer





do góry… do góry   menu… menu




device application



Trade and service





Mini PC is an ideal tool to support us in the implementation of many activities in the field of trade, small dimensions increase the possibility of its adaptation to activities such as issuing invoices or preparing documentation, which in turn allows us to convenient and optimal sales management. The VESA holder mounted to the housing provides many installation options, eg in stores (at the cash register, under the desktop, behind the LCD / LED monitor), in factory halls or in a delivery truck.





MiniPC IBOX 603 Robust, efficient small fanless with the possibility of mounting beneath the desktop behind the monitor using the VESA mount





MiniPC IBOX 603 Mini PC used in trade and industry



Warehouse and logistics







Thanks high performance an industrial computer can be used to connect multiple devices in a warehouse and make their management much easier. Its rugged casing and the fanless cooling system are ideal for harsh environments in such rooms. The solid construction guarantees long-lasting work, even in environments with high dustiness and dirt.





MiniPC IBOX 603 Practical small-sized industrial computer warehouse and logistics





MiniPC IBOX 603 The smallest mobilator mini pc fanless Intel Celeron 3205U



Transport and motorization







A small industrial computer can be used in transport thanks to the ability to work on 12V power supply. Then the mini computer can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. It allows you to inform the driver about the current state of the vehicle, transfer its current location to the management center, display information for passengers, etc. It performs well in vehicles where small dimensions are important.






MiniPC IBOX 603 MiniPC IBOX 603  Industry practical professional small computer transport and motorization



do góry… do góry   menu… menu





available versions



The industrial mini-computer IBOX 603 is offered in several versions to suit different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.





  v.0 v.1 v.2 v.3 v.4 v.5
4GB RAM
8GB RAM
16GB RAM
64GB SSD
128GB SSD
256GB SSD
500GB HDD
1TB HDD
WiFi

Others: Color Black
Chipset: Intel Chipset
CPU Support: Intel i3
Installed CPU: Intel Core i3 6100U (2x 2.30GHz) SmartCache 3MB
Memory Support: DDR4 SO-DIMM (max. 16GB)
Installed Memory: 8 GB
Graphic Card: Intel HD Graphics 520
Storage (HDD) Support: SSD | HDD
Installed Storage (HDD): 128GB SSD
CD/DVD Drive: -----
LAN: 5x Intel i211-AT 10/100/1000 Mb/s
Wireless LAN card: Intel 6205 Dual-Band 802.11 a/b/g/n
Bluetooth: -----
3G: -----
4G LTE:
TV Tuner: -----
Watch Dog Timer: Yes
Front Panel (ports): Power ON
2x COM (RS232)
Rear Panel (ports): 5x LAN
1x HDMI
1x VGA
4x USB 3.0
1x SIM
1x DC 9~36V
Power: 9~36V
Supported OS: Windows: 7/8//10 | Linux
Installed OS: -----
Dimensions: 237mm x 164mm x 70.5mm
Weight: 1600g
Expansion: -----
Fanless: Yes
Humidity: 5% ~ 95%
Temp: 0°C — 50°C
IP Norm: -----
Storage temperature: -20°C — 60°C


CURRENT PRICE
4019.88 € Net
4944.45€ Gross
