3 YEARS WARRANTY Industrial Android Fanless MiniPC HyBOX Android RK3188
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/3-lata-gwarancji-przemyslowy-android-fanless-minipc-hybox-rk3188-produkt-89518.html

3 YEARS WARRANTY Industrial Android Fanless MiniPC HyBOX Android RK3188





Industrial MiniPC Android Fanless MiniPC HyBOX Android RK3188








Android MiniPC

Industrial ANDROID Digital PLAYER Fanless MiniPC rBOX-980DS it's device with Android OS which can be use in Digital Signage system.

The concept of Digital Signage includes an integrated form of system management, which includes electronic displays (digital signs, infosics) that present information, advertising, and other messages. Digital signage systems are used, inter alia, at airports, points of sale or service networks (e.g. travel companies, real estate, information, stations, shopping centers, etc.).



Description


Housing dimensions are 248(l)x130(w)x35(h)mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use effective processor and DDR3 memoryIntegrated video module allows to play a wide range of applications and media files in Full HD quality. Disk offer free space 8GB EMMC.



Processor Rockchip RK3188 (4x 1.6GHz)
OS
Android 4.4
RAM Memory
2GB DDR3
Flash Memory
8GB EMMC
Communiaction
Wi-Fi, Bluetooth, IR(option)
Interfaces
1x RS232 | 1x TTL | 1x HDMI | 4x USB | 1x Audio | 1x RS485
Dimensions
248mm x 130mm x 35mm
Weight
1kg
Work Temperature
-0°C - 55°C
Humidity
10%-85%(No condensation)



Industrial MiniPC Android Fanless MiniPC HyBOX Android RK3188

do góry… do góry   menu… menu

Communication & Connectors

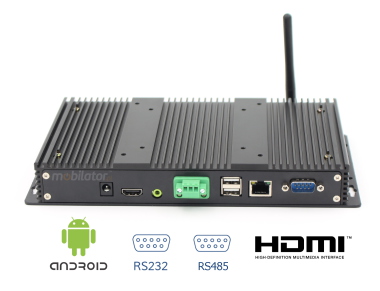

Integrated card LAN and WiFi allow connection to the network. The computer is equipped with: one HDMI port, one Audio port, four USB ports,  one RS232, one RS485, one TTL port.



Industrial MiniPC Android Fanless MiniPC HyBOX Android RK3188

do góry… do góry   menu… menu

Digital Signage

Industrial MiniPC Android Fanless MiniPC HyBOX Android RK3188

Digital Signage is a modern, dynamic form of advertising that allows you to stand out from the competition and raise interest among your audience. This solution allows you to remotely control your monitor network with one central device. In addition, it is possible to integrate such device with the company's database applications, which allows for full automation of displayed messages, thanks to this solution the receiver always has access to up-to-date data. Despite being a relatively new form of information transfer, Digital Signage is slowly but effectively supplanting older, static forms of advertising such as posters, banners, banners and leaflets.

Industrial MiniPC Android Fanless MiniPC HyBOX Android RK3188

Digital Signage comes in many different forms and can be used for almost any purpose. Advertising monitors can be found in places such as airports, shops, hotels, service centers, shopping malls, train stations, tourist offices and other smaller or larger companies, both indoor and outdoor. Wherever used, they will surely attract the attention of the customer, they will bring to your business the atmosphere of modernity and originality and will make them stand out among the competition.

Industrial MiniPC Android Fanless MiniPC HyBOX Android RK3188



do góry… do góry   menu… menu



Application

Industrial Android Fanless MiniPC HyBOX RK3188 is based on high-performance eight-core processor and high-quality components. The biggest advantages of these devices are: small size, performance and energy efficiency.  Offered model HyBOX RK3188 has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.


Industrial MiniPC Android Fanless MiniPC HyBOX Android RK3188



Trade and services

The commercial industry is the mainstay of this type of device, Digital Signage can be used here to present prices, products, branding, promotion information, or traffic to the selected product. For tactile interaction, you can also use tactile infokios.



 Hotel and gastronomy




In this type of place Digital Signage can serve not only for commercial purposes but also for information such as menu presentation, promotion of services, information on available rooms, booking rooms, etc.




Industry

In industry-related areas, DS panels can display order tables, production information, employee information, and device monitoring. Touch Digital Signage can be used to organize interim Fire protection tests, health and safety, etc.



Offices and institutions







Here, just as in the industry, DS systems are primarily information functions, can display messages, notices, but also present announcements (eg job offers) or even help customers.




 Education

Digital Signage places a modern information network displaying information such as room listings, lesson plans, conference listings, and reminders of important events.


*more details in "Technical Data"...

do góry… do góry   menu… menu


Others: Metal - Color Black
Chipset: -----
CPU Support: -----
Installed CPU: Rockchip RK3188 4x 1.6 GHz
Memory Support: DDR3
Installed Memory: 2GB DDR3
Graphic Card: Integrated
Storage (HDD) Support: Flash
Installed Storage (HDD): 8GB SSD
CD/DVD Drive: -----
LAN: Yes
Wireless LAN card: Yes
Bluetooth: Bluetooth 4.0
3G: No
4G LTE:
TV Tuner: -----
Watch Dog Timer: Yes
Front Panel (ports): 1xRS232
1x HDMI
2x USB
1 x Audio
1x RS485
Rear Panel (ports): 1x TTL
2 x USB
Power: 12V
Supported OS: Android
Installed OS: Android 4.4
Dimensions: 248 x 130 x 35mm
Weight: 1kg
Expansion: -----
Fanless: Yes
Humidity: 10%-85% - no condensation
Temp: 0 ~55℃
IP Norm: -----
Storage temperature: -----


CURRENT PRICE
939.22 € Net
1155.24€ Gross
