Industrial Fanless |
Description

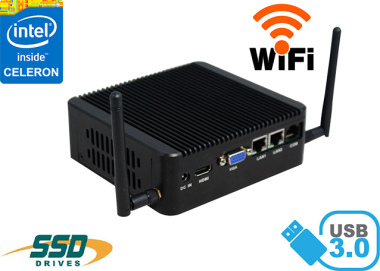

Housing dimensions are 134 (W) x124 (L) x46 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 1.6 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB SSD. Support together: mSata SSD and 2.5 inch SSD/HDD - SATAIII.
|
|
Communication & Connectors |
Integrated card - Intel 1000M Lan RTL8111E and WiFi module allows connection to the network. The computer is equipped with: two LAN port, one RJ-45 COM port, one HDMI port, one VGA port, three USB 2.0 ports, one USB 3.0 port, one way audio, one input mic and a built-in connector on the motherboard: one NB connector, one Mini-SATA connector, one SATA port and one Mini-PCIE connector.
|
Cooling
The industrial fanless MiniPC IBOX-Nano-J1800 N2B uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.
|
|
Others: | Colour Black |
Chipset: | Intel express chipset |
CPU Support: | ----- |
Installed CPU: | Intel Celeron Quad Core J1900 (4x2GHz) |
Memory Support: | 2GB DDR3 (can up to 8GB) |
Installed Memory: | 4GB DDR3 |
Graphic Card: | Intel HD Graphics |
Storage (HDD) Support: | SSD + 2,5" HDD |
Installed Storage (HDD): | 32GB SSD (opc. SSD + 2,5" SSD/HDD) |
CD/DVD Drive: | ----- |
LAN: | Intel RTL8111E 1000M Lan |
Wireless LAN card: | Yes |
Bluetooth: | ----- |
3G: | ----- |
4G LTE: | |
TV Tuner: | ----- |
Watch Dog Timer: | 0 ~ 255 sec |
Front Panel (ports): | 1x USB 3.0, 3x USB 2.0, 1x Audi, 1x Mic, Power ON/OFF |
Rear Panel (ports): | DC-IN 12V, 1x HDMI, 1x VGA, 2x RJ-45 LAN, 1x RJ-45 COM |
Power: | 12V |
Supported OS: | Microsoft Windows: 7/8/8.1, Linux |
Installed OS: | ----- |
Dimensions: | 134 x 124 x 46 mm |
Weight: | 1.6 kg |
Expansion: | ----- |
Fanless: | Yes |
Humidity: | 0 ~ 95% |
Temp: | -20 ~60℃ |
IP Norm: | ----- |
Storage temperature: | -20 ~ 60℃ |
CURRENT PRICE |
|
8803.34 € | Net |
10828.11€ | Gross |
