10x Industrial Fanless MiniPC mBOX-T30V v.1

Przemys³owy MiniPC mBOX-T30V



Industrial Fanless MiniPC

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

mBOX-T30V is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
go top… do góry   menu… menu

Description

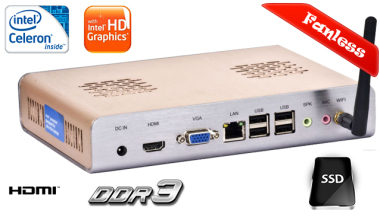

Housing dimension are 205 (W) x140 (L) x40 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 1.5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space from 8GB SSD to 32GB SSD.

Przemys³owy MiniPC mBOX-T30V
go top… do góry   menu… menu


Communication & Connectors

Integrated card - Intel RTL8111F (optional WiFi module) allow connection to the network. The computer is equipped with: one LAN port, two COM ports (RS232), one HDMI port, one VGA outpu, four USB 3.0 ports.

Przemys³owy MiniPC mBOX-T30V

1. 2x COM(RS232)
 3. Audio/Mic
2. 2x USB 2.0
 4. Power ON/OFF

Przemys³owy MiniPC mBOX-T30V

Przemys³owy MiniPC mBOX-T30

Cooling

The industrial MiniPC mBOX-T30V uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… do góry   menu… menu

Application

      Industrial MiniPC Series mBOX-T30V are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of mBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesPrzemys³owy MiniPC mBOX-T30V of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Przemys³owy MiniPC mBOX-T30V


Areas of use of industrial MiniPC

Digital Engine

Przemys³owy MiniPC mBOX-T30V

Trade

Small computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Przemys³owy MiniPC mBOX-T30V
Przemys³owy MiniPC mBOX-T30V

Magazine

Industrial MiniPC mBOX-T30V by two COM ports (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC mBOX-T30V can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 6V to 34V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Przemys³owy MiniPC mBOX-T30V

Przemys³owy MiniPC mBOX-T30V



Przemys³owy MiniPC mBOX-T30V



Specifications


    Dimension



   H: 40 mm

   L: 140 mm

   W: 205 mm
   Weight    1.5 kg
   Processor
    Intel Celeron 1037u (2x 1.8GHz)
   Chipset
    Intel NM70 express chipset
   RAM Memory
    2GB DDR3 (optional 4GB)
   Graphic Card
    Intel HD Graphics
   Sound Card
    Realtek ALC662
   WLAN
    Intel RTL8111F
   Connectors

   2x COM(RS232)

   1x wyj¶cie 12V DC_JACK

   4x USB 3.0

   1x RJ-45

   1x wyj¶cie Audio

   1x HDMI

   1x Mic

   1x VGA
Przemys³owy MiniPC mBOX-T30V


Others: Colour Silver, Case
Chipset: Intel NM70
CPU Support: -----
Installed CPU: Intel Celeron 1037u (2x1.8GHz)
Memory Support: 2GB DDR3 (can up to 4GB)
Installed Memory: 2GB DDR3
Graphic Card: Intel HD Graphics
Storage (HDD) Support: -----
Installed Storage (HDD): 8 GB SSD
CD/DVD Drive: -----
LAN: Intel RTL8111F
Wireless LAN card: No (opctional Yes)
Bluetooth: -----
3G: No
4G LTE:
TV Tuner: -----
Watch Dog Timer: -----
Front Panel (ports): Power ON/OFF
Rear Panel (ports): 4x USB 3.0,
1x Audio,
1x RJ-45,
DC-in Jack,
1x HDMI,
1x Mic,
2x COM(RS232),
1x VGA
Power: 12V
Supported OS: Microsoft Windows: XP/Vista/7 , Linux
Installed OS: -----
Dimensions: 205 x 140 x 40 mm
Weight: 1.5 kg
Expansion: WiFi
Fanless: Yes
Humidity: 0 ~ 95%
Temp: 0 - 50 ℃
IP Norm: -----
Storage temperature: -15 - 70 ℃


CURRENT PRICE
7467.68 € Net
9185.25€ Gross
