Rugged Tablet MobiPad MP22 v.4.2
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/tablet-przemyslowy-mobipad-mp22-v.4.2-produkt-88112.html

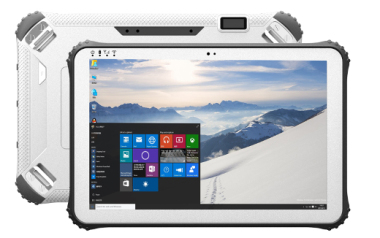

Rugged Tablet MobiPad MP22 v.4.2

mobipad mp22 windows 10 rugged tablet


MobiPad MP22 is a new proposal 12.2 - inch tablet works with Windows 10. The tablet has a specially designed, reinforced structure, adapted for use in harsh environmental conditions. The device works great when in the home and industrial use.

Description

processor z8300 mp22 rugged industrial tablet

MobiPad MP22 is offered with the latest quad-core Intel® Atom ™ processor Z8300 to ensure the highest performance, low power consumption and long battery life. The tablet works with Windows 10 operating system to meet the growing requirements in industrial applications.

 Processor  Intel® Atom™ Processor Z8300 (QUAD CORE 1.44 - 1.84GHz)
 Graphics  Intel HD Graphic
 Display  12.2” (1920*1200) 16:10 | Sunlight Readable
 Type of display
 IPS | Gorilla Glass | Capacitive (5-punktowy)
 LED
 Power
 Brightness  280nits
 RAM  4GB DDR3L
 ROM  128GB FLASH
 Connectors  HDMI 1.4a | SD Reader| USB 2.0/3.0 | LAN | COM Ports | Docking | DC In
 GPS (optional)  U-blox NEO-7 (GPS+Beidou+Glonass)
 Audio  Built-in Microphone | Audio Jack | 2x - Speaker 0.8W/8Ω
 Camera  FRONT: 2Mpx
   REAR: 5Mpx
 Battery  Li-Poly 3.7V/12600mAh
 Keyboard  On-Screen | Functional keys

 Volume + | Volume - | Power | Home | Functional
 OS

Windows 10 Home x64(license it's not included in price)

Windows 10 IoT Enterprise x64(license it's not included in price)

 Modules
 802.11 a/b/g/n : Bluetooth 4.0
 Dimensions  319.6*216*23.4 mm - 1500g (with battery)
 Resistance  IP65
 Readers (optional)
 4G | NFC | 1D Scanner
 Sensors (factory)  G-Sensor
 Warranty
 12 months
Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

mp22 mobipad rfid uhf hf 3g gsm

Select a version for each other

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".

wersje mobipad mp22 rugged industrial tablet


v.1
v.1.1 v.1.2 v.2 v.3  v.3.1
v.3.2
 v.4
v.4.1
v.4.2
64GB - - -
128GB - - - - - - -
3G
4G
- - - - - - - - - -
GPS
NFC
- - - - - - - - -
Intel Z8300
Intel 5Y30 - - - - - - - - - -
1D (CCD)
- - - - - - -
2D (CMOS)
- - - - - - -
Sunlight Readable
- - - -

go top... do góry menu… menu


v.5
v.6 v.7 v.7.1 v.7.2  v.7.3
v.8
 v.8.1
v.8.2
v.8.3
64GB - - - -
128GB - - - - - -
3G - - - - - - -
4G
- - -
GPS
NFC
Intel Z8300 - -
Intel 5Y30 - - - - - - - -
1D (CCD)
- - - - -
2D (CMOS)
- - - - -
Sunlight Readable
- - - - -

go top... do góry menu… menu

The collection and processing of data

Barcode Scanner

Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 2D barcode reader allows you to read, decode and send to your data stored in the bar code.With dynamic scanning capabilities and wide range of reading MobiPad device and MMP quickly and accurately retrieves the data, which helps to increase the rate and efficiency.

industrial tablet mobipad mp22 barcode scanner

 Model
Motorola SE655
Honeywell N3680
 Type of scanner
1D
1D/2D
 Display type
CCD CMOS

industrial tablet nfc13.56mhz  rugged tablet 12.2

NFC

Near field communication (NFC) is a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm or less.

    NFC
 Frequency 13.56 MHz
 Reading distance
to 4 cm
 Supported standards
 ISO/IEC 14443 A/B

ISO/IEC 15693
  ISO/IEC 18092

mp22 3g wcdma tablet industrial windows 10

Serial ports

Two build-in serial ports COM(RS232,RS485) make possible to connect "streaming" devices like: measuring device, etc.

serial ports

go top... do góry menu… menu

Resistance and strength

Standards

In terms of device ruggedness, the MP22 can withstand a 4-foot drop, and with IP65 sealing, where the first digit "6" means the device is dustproof and the second digit "5" means that the device has the ability to handle low pressure water jets from all directions. The tablet can operate in temperature range of -20° to 60°C, optimized for most industrial deployments. MP22 is a sharp looking, sturdy and powerful device that can hold up well against use in harsh environment with its industrial grade rugged design.

 Operating temperature
-20°C -- +60°C
 Storage temperature
-30C -- +70°C



MIL-STD 810G



Durability is one of the most important factors to consider when choosing mobile solutions, which is why MobiPad ensures that its fully rugged units operate even when dropped onto concrete, or used in harsh environmental conditions such as heat and cold, dust and rain. Rigorous tests that pass MobiPad products ensures that our customers receive products that meet the highest standards of durability and reliability. MobiPad ensures compliance with the most rigorous standards in this area - MIL-STD 810G according to test its products. This standard, set by the US military, is the most widely used international standard.





 Dust IP6x
 Water IPx5
 Drop 1.0 m




The battery at its best

High quality Li-Polymer battery provides a long operating life under severe temperature conditions. With MobiPad MP22 you can easily work out at temperatures as low as -20 ° C.

go top... do góry menu… menu

external battery  mp22 mobipad

IP65

IP Degrees is a classification of different levels of protection of electrical equipment That Are provided by enclosures of these devices According to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, dry as dust.  The second digit is a degree of protection against water.

Complete protectionm against contact, protection from infiltration of dust.
6

5

Protection from water projected from a nozzle.

go top... do góry menu… menu

Modules and Wireless Networks

mobipad mp22 bluetooth 4.0 keyboard tablet

Thanks 3G(4G as option) module, user can connect with Internet by insert SIM card in right place.

 WIFI  802.11 a/b/g/n
 GPS (optional) U-blox NEO-7
 Bluetooth  Bluetooth 4.0
 3G (optional)
WCDMA (900 / 2100 MHz)
 4G (optional) WCDMA/GSM/GPRS/EDGE (900/1800MHZ)

barcode scanner 1d/2d rugged tablet mp22

go top... do góry menu… menu

Functionality

hdmi microusb barcode scanner 1d/2d docking station

Real-time data access to the right information is very important to mobile users. MP22 offers 3G, GPS, WiFi 802.11 a/b/g/n, Bluetooth 4.0 which enable users to get connect in the way that best suits their needs. With built-in 5.0 Mega Pixels camera on rear side, users can capture photos, videos, documents instantly, or utilize the front 2.0 Mega Pixel camera for application such as user self video recording, or video communication.

mobipad hdmi connector camera corning glass

 Dimensions 319.6*216*23.4 mm
 Weight 1500g



fingerprint mobipad mp22 tyl speakers

go top... do góry menu… menu

Additional equipment

Docking Station

The docking station (optional) enables simultaneous battery charging device and the battery itself. When you dock your device will be extended to additional ports located directly at the station.

docking station mp22

 Available ports
2x - charging ports | 3x - USB 2.0 | RJ45 | DC In

Wrist Strap

Working comfort with the device can help you by buying durable stand (optional). It provides a stable position or facilitate safe movement on the tablet.

mobipad mp22

go top... do góry menu… menu



more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

*all accesories are not included with device...

*license of Windows 10 it's not included in price...


Durability: IP65
Humidity: -----
Waterproof: IPX5
Weight:
Temperature: Operating: -20°C -- +60°C
Storage temperature: -30°C -- +70°C
MIL-STD-810G
Shock: -----
Vibration: -----
Drop: 1.0m
Sand and dust: IP6X
1D barcode scanner (reader): -----
2D barcode scanner (reader): 2D (CMOS) Honeywell N3680
RFID scanner (reader): -----
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: Yes
VESA standard – holders and mounts support: No
COM port: Yes
Dispaly: 12.2” (1920*1200) 16:10
IPS | GORILLA GLASS | Sunlight Readable
Brightness: 280nits
Contrast: -----
Touch screen: Yes - capacitive (5-points)
Graphics card: Intel HD Graphic
Swivel Hinge: -----
VGA out: -----
TV Out: -----
TV Tuner: -----
Processor: Intel® Atom™ Processor Z8300 (QUAD CORE 1.44 - 1.84GHz)
Chipset: -----
BIOS: -----
Memory: 4GB DDR3L
Hard Drive: 128GB FLASH
Flash Memory: Yes
Battery: Li-Poly 3.7V/12600mAh
Working time on battery: 8 hours (depending on usage)
HotSwap battery: No
Fast battery replacement ability: Yes
Size: 319.6*216*23.4 mm - 1500 (with battery)
Casing material: -----
Fanless casing: Yes
Operating System: Windows 10 Home x64(license it's not included in price)
Windows 10 IoT Enterprise x64(license it's not included in price)
LAN: Yes
WLAN: 802.11 a/b/g/n
Bluetooth: Bluetooth 4.0
WAN: Yes - WCDMA(3G)
GPS: U-blox NEO-7 (GPS+Beidou)
Flash Card Reader: SD
CD/DVD: -----
Camera: Front: 2Mpx
Rear: 5Mpx
Audio: Built-in Microphone | Audio Jack | 2x - Speaker 0.8W/8Ω
Seciurity: IP65 | MIL-STD-810G
In/Out: 1x HDMI 1.4a (type C)
1x LAN
1x MicroSD card reader(max.64GB)
2x USB 2.0
1x USB 3.0
2x COM(RS232,RS485)

Docking port(12 Pogo Pin
DC In
Keyboard: on-Screen | Function keys
Volume + | Volume - | Power | Functional
Additional Navigation Devices : -----
Color: -----
Optional accessories: Docking Station
1x - Charging port (device)
1x - Charging port (battery)
3x - USB 2.0
1x - RJ45
1x - DC In

Wrist Strap
Shoulder Strap
Stand for tablet
Keyboard with leather upholstery
Other: G-Sensor


CURRENT PRICE
4372.88 € Net
5378.64€ Gross
