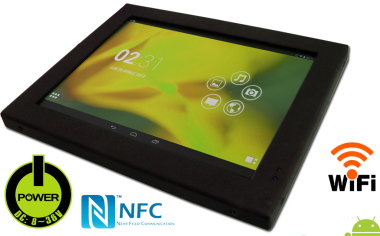

Industrial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 v.4
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-panel-pc-android-av-panel-10.1-ip65-v.4-produkt-87884.html

Industrial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 v.4

Industial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 Przmys³owy Panel PC Andoid AV-Panel 10.1 WiFI Norma odporno¶ci IP65 Przemys³owy komputer panelowy Ekran rezystancyjny 4 wire resistive wy¶wietlacz 10.1 cali mobilator.pl New Portable Devices Windows  ANDRIOD PANEL PC KOMPUTER ANDROID

Industrial Panel PC

Fanless industrial Panel PC are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable Panel PC uses of heat-pipe technology.

Description


Industial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 Przmys³owy Panel PC Andoid AV-Panel 10.1 WiFI Norma odporno¶ci IP65 Przemys³owy komputer panelowy Ekran rezystancyjny 4 wire resistive wy¶wietlacz 10.1 cali mobilator.pl New Portable Devices Windows  ANDRIOD PANEL PC KOMPUTER ANDROID

AV-Panel

Industial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 v.4








Industial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 Przmys³owy Panel PC Andoid AV-Panel 10.1 WiFI Norma odporno¶ci IP65 Przemys³owy komputer panelowy Ekran rezystancyjny 4 wire resistive wy¶wietlacz 10.1 cali mobilator.pl New Portable Devices Windows  ANDRIOD PANEL PC KOMPUTER ANDROID

CPU: ARM Cortex-A7 A20 1GHz Dual Core


Memory RAM: 1GB


Memory ROM: 8GB Nand Flash


System: Android 4.2.2


Screen: 10.1" / 1280x800 / 4 - Wire Resistive



Expansion cards: none



Detailed specification of the configuration available in the "Technical data"


Using the latest technology Panel PC is designed for continuous operation multitasking with low power consumption. An important advantage is the powerful combination of small size with considerable opportunities through the use of processor family ARM® Cortex-A7 A20, 1GB of RAM memory. Integrated Mali400mp2 GPU video systems allow you to play a wide range of applications and media files (video, audio). The internal memory offers available to 8GB.

Dimensions:

Housing dimension are 267 x 188 x 47 mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 3.5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Industial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 Przmys³owy Panel PC Andoid AV-Panel 10.1 WiFI Norma odporno¶ci IP65 Przemys³owy komputer panelowy Ekran rezystancyjny 4 wire resistive wy¶wietlacz 10.1 cali mobilator.pl New Portable Devices Windows  ANDRIOD PANEL PC KOMPUTER ANDROID

Cooling:

Industrial Touch PC  AV-Panel 10.1  is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

Industial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 Przmys³owy Panel PC Andoid AV-Panel 10.1 WiFI Norma odporno¶ci IP65 Przemys³owy komputer panelowy Ekran rezystancyjny 4 wire resistive wy¶wietlacz 10.1 cali mobilator.pl New Portable Devices Windows  ANDRIOD PANEL PC KOMPUTER ANDROID

The industrial fanless Panel PC  AV-Panel 10.1 uses a special method of cooling.This cooling takes place mainly by means of housing having a very large surface for heat dissipation - thanks such cooling - industrial Panel PC is faster and more efficiently cooled.
go top… do góry   menu… menu

Communication & Connections

Communication:

Industrial Panel PC  AV-Panel 10.1 standard has a system of wireless Wi-Fi communication. Optionally in other models are available also modules such as Bluetooth, 3G and GPS.

Industial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 Przmys³owy Panel PC Andoid AV-Panel 10.1 WiFI Norma odporno¶ci IP65 Przemys³owy komputer panelowy Ekran rezystancyjny 4 wire resistive wy¶wietlacz 10.1 cali mobilator.pl New Portable Devices Windows  ANDRIOD PANEL PC KOMPUTER ANDROID

Connector:

Integrated Network card 10 / 100Mpbs 1xRJ-45 LAN, WIFI allows you to connect the device to the network. The panel is equipped with: one LAN connector, two USB 2.0 ports and power connector (DC-in).

Industial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 Przmys³owy Panel PC Andoid AV-Panel 10.1 WiFI Norma odporno¶ci IP65 Przemys³owy komputer panelowy Ekran rezystancyjny 4 wire resistive wy¶wietlacz 10.1 cali mobilator.pl New Portable Devices Windows  ANDRIOD PANEL PC KOMPUTER ANDROID

NFC

NFC, or near-field communication, is an easy and intuitive technology that allows you to use your mobile phone for special purposes. An NFC tag can share and link to information such as web pages, social media and all other sorts of other information generally. Other areas where NFC is starting to evolve into are making payments, opening doors secured with contactless locks, logging on to computers and many more. All of these actions have something in common, that is they invoke an action based on you placing your phone (or any other NFC device) near (the N in NFC) the thing you want to read or interact with.

NFC NFC 13.56Mhz  ISO14443 A / B i ISO15693  (NXP PN544)



Screen

Industrial Touch PC  AV-Panel 10.1 has a water-resistant front panel and scratch resistant  screen with 3H hardness. With 1280x800 resolution and high brightness of 250 cd/m2, screen of "4 wire resistive" type with high sensitivity to touch, offers the user a clear picture and ease of use.

Industial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 Przmys³owy Panel PC Andoid AV-Panel 10.1 WiFI Norma odporno¶ci IP65 Przemys³owy komputer panelowy Ekran rezystancyjny 4 wire resistive wy¶wietlacz 10.1 cali mobilator.pl New Portable Devices Windows  ANDRIOD PANEL PC KOMPUTER ANDROID



Resistive screen

A resistive touchscreen comprises of several layers, out of which the flexible plastic and glass layers are two important electrically resistive layers. The front surface of resistive touchscreen panel is a scratch-resistant plastic with coating of a conductive material (mostly Indium Tin Oxide, ITO), printed underside.  The second important layer is either made of glass or hard plastic and is also coated with ITO.  Both the layers face each other and are separated with a thin gap in between. An electrical resistance is created between both the layers in such a way that charge runs from top to bottom in one layer and side-to-side in another.  When a finger or stylus tip presses down on the outer surface, both the ITO films meet. It is the measure of the resistance of both the layers at point of contact, which leads to get an accurate measurement of the touch position. The accuracy also relies on the evenness of the coating of ITO on both the layers.

Industial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 Przmys³owy Panel PC Andoid AV-Panel 10.1 WiFI Norma odporno¶ci IP65 Przemys³owy komputer panelowy Ekran rezystancyjny 4 wire resistive wy¶wietlacz 10.1 cali mobilator.pl New Portable Devices Windows  ANDRIOD PANEL PC KOMPUTER ANDROID
Resistive screen ensures good visibility, which falls quite firmly in the sun. This type of screen as opposed to a capacitive screen, allows you to use handwriting (stylus comes in handy here).

4-WIRE RESISTIVE SCREENS

The 4-wire Resistive Touch Screen is the preferred solution for low-cost applications. It consists of a conductive bottom layer of either glass or film and a conductive top film layer, separated by extremely small, transparent spacer dots. A voltage is applied across the conductive surface. When pressure from a touch is applied to the top layer, it is deflected and makes contact with the bottom layer resulting in a voltage drop. This change is detected by the controller. By alternating the voltage signal between the top layer and the bottom layer, the X and Y coordinates of the user’s touch are computed.

Resistive screens are very durable and can be used in a variety of environments. This type of screen is recommended for demanding point-of-sale systems, restaurant systems, industrial controls, and other workplace applications.

Application

Applicable standards and tests carried out.

Panel PC  AV-Panel 10.1 is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial IP65 front panel and aluminum housing protects the display from the outside against mechanical damage, drops of water, sand and dust.  AV-Panel 10.1 is the best solution for extreme applications in dust or moisture.

Industial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 Przmys³owy Panel PC Andoid AV-Panel 10.1 WiFI Norma odporno¶ci IP65 Przemys³owy komputer panelowy Ekran rezystancyjny 4 wire resistive wy¶wietlacz 10.1 cali mobilator.pl New Portable Devices Windows  ANDRIOD PANEL PC KOMPUTER ANDROID

 Operating Temp
0-60 °C
 Operating Humidity 5%-90%
 Dust IP6x(dust)
 Water IPx5(drops of water)

Resistance IP65

The IP Code, International Protection Marking. IEC standard 60529, sometimes interpreted as Ingress Protection Marking, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC).

go top… do góry menu… menu

The first digit [x]
Protection against solid objects
  The second digits [y]
Protection against liquids
No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from object not greater than 12mm in diamete
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection against heavy seas, or powerful jets of water


7

Protection against immersion


8

Protection against complete, continuous submersion in water

Industial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 Przmys³owy Panel PC Andoid AV-Panel 10.1 WiFI Norma odporno¶ci IP65 Przemys³owy komputer panelowy Ekran rezystancyjny 4 wire resistive wy¶wietlacz 10.1 cali mobilator.pl New Portable Devices Windows  ANDRIOD PANEL PC KOMPUTER ANDROID

Industrial Panel PCs with AV-Panel companies are based on the efficient dual-core processors and high-quality components.

Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 Przmys³owy Panel PC Andoid AV-Panel 10.1 WiFI Norma odporno¶ci IP65 Przemys³owy komputer panelowy Ekran rezystancyjny 4 wire resistive wy¶wietlacz 10.1 cali mobilator.pl New Portable Devices Windows  ANDRIOD PANEL PC KOMPUTER ANDROID

Areas of use of industrial panel computers.

Industial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 Przmys³owy Panel PC Andoid AV-Panel 10.1 WiFI Norma odporno¶ci IP65 Przemys³owy komputer panelowy Ekran rezystancyjny 4 wire resistive wy¶wietlacz 10.1 cali mobilator.pl New Portable Devices Windows  ANDRIOD PANEL PC KOMPUTER ANDROID

Trade

Fanless Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register),  factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.

Industial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 Przmys³owy Panel PC Andoid AV-Panel 10.1 WiFI Norma odporno¶ci IP65 Przemys³owy komputer panelowy Ekran rezystancyjny 4 wire resistive wy¶wietlacz 10.1 cali mobilator.pl New Portable Devices Windows  ANDRIOD PANEL PC KOMPUTER ANDROID
Industial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 Przmys³owy Panel PC Andoid AV-Panel 10.1 WiFI Norma odporno¶ci IP65 Przemys³owy komputer panelowy Ekran rezystancyjny 4 wire resistive wy¶wietlacz 10.1 cali mobilator.pl New Portable Devices Windows  ANDRIOD PANEL PC KOMPUTER ANDROID

Magazine

Industrial Panel PC through COM portcan be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas.  Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

 Transport & Automotive

Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 8-36V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 Przmys³owy Panel PC Andoid AV-Panel 10.1 WiFI Norma odporno¶ci IP65 Przemys³owy komputer panelowy Ekran rezystancyjny 4 wire resistive wy¶wietlacz 10.1 cali mobilator.pl New Portable Devices Windows  ANDRIOD PANEL PC KOMPUTER ANDROID

Industial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 Przmys³owy Panel PC Andoid AV-Panel 10.1 WiFI Norma odporno¶ci IP65 Przemys³owy komputer panelowy Ekran rezystancyjny 4 wire resistive wy¶wietlacz 10.1 cali mobilator.pl New Portable Devices Windows  ANDRIOD PANEL PC KOMPUTER ANDROID

go top… do góry   menu… menu

Versions


                                   v.1
v.2 v.3 v.4 v.5 v.6 v.7 v.8
 AV-Panel 10.1 IP65

Wi-Fi
Bluetooth 4.0
- - -
3G
- - - - -
GPS - - - - - -
NFC - - - - - -
DC: 12 V
- - - - - -
DC: 8-36 V - -
 Screen: resistive

go top… do góry   menu… menu

Specifications


   Display

   Screen: 10.1"

   Resolution: 1280 x 800

   Type: 4 - Wire Resistive
   Resistance IP

   Front Panel: IP 65

   Communication

   Wi-FI

   Bluetooth (option)

   3G (option)

   GPS (option)

   Dimensions





   Height:  47 mm

   Width: 188 mm

   Length: 267 mm

   Weight    3.5kg
   Processor    ARM Cortex-A7 A20 1GHz Dual Core
   Memory ROM
   8GB NAND FLASH
   Memory RAM
   1GB DDR3
   Network Card
   100Mpbs LAN
   NFC reader     NFC 13.56Mhz (NXP PN544)
   Ports & interfaces

   2 x USB

   1 x RJ45

   1 x DC-in

Industial ANDROID Touch Panel PC AV-Panel 10.1 inch IP65 Przmys³owy Panel PC Andoid AV-Panel 10.1 WiFI Norma odporno¶ci IP65 Przemys³owy komputer panelowy Ekran rezystancyjny 4 wire resistive wy¶wietlacz 10.1 cali mobilator.pl New Portable Devices Windows  ANDRIOD PANEL PC KOMPUTER ANDROID


Screen size: 10.1"
Resolution: 1280 x 800
Aspect ratio: -----
Touchscreen: Resistive Type 4-Wire
Chipset: -----
CPU Support: 1) ARM Cortex-A7 A20 1GHz Dual Core
2) ARM Cortex-A7 A31s 1GHz Quad Core (option)
3) ARM Cortex-A9 S802 2.0GHz Quad Core (option)
Installed CPU: ARM Cortex-A7 A20 1GHz Dual Core
Memory Support: up to 1GB (max)
Installed Memory: 1GB DDR3
Graphic Card: Mali400mp2 GPU
Audio: Integrated, speakers (optional)
Storage (HDD) Support: -----
Installed Storage (HDD): ROM: 8GB NAND FLASH
CD/DVD Drive: -----
LAN: RJ45 100Mpbs LAN
Wireless LAN card: Yes
Bluetooth: -----
3G: -----
4G LTE:
GPS: -----
TV Tuner: -----
Watch Dog Timer: -----
Ports - front panel: -----
Ports - rear panel: 2x USB
1x RJ45
1x DC-IN
Ports - left panel: -----
Ports - right panel: -----
Power: 8-36 V DC
Supported OS: Support Android
Installed OS: Android 4.2.2
Dimensions: 267 x 188 x 47 mm
Weight: 3.5 kg
Expansion: -----
Fanless: Yes
Humidity: 5%~ 90%
Temp: 0°C ~ 60°C
Storage Temp: -20°C ~ 65°C
IP Norm: IP 65
IP Level (back panel): IP 65
IP Level (front panel): IP 65
Dual display: -----
Response time touch-panel (ms): < 20
Contrast Ratio: 500:1
Brightness: 250 cd/m2
Viewing Angle: 160;160
Backlight MTBF: >15000hrs
Color Resolution: 262 K
Surface hardness (display): >3H
Touch Life(contacts): >10,000,000 times
Housing material: Aluminum
Mounting VESA: VESA 100mm x 100mm
Folding Bracket (for office type working): No (optional)
Power Consumption: 6 W
Others: -----
Anti-vibration: -----
Anti-shock: -----
RFID scanner (reader): NFC 13.56Mhz ISO14443 A / B i ISO15693 (NXP PN544)
Barcode reader:


CURRENT PRICE
2697.54 € Net
3317.97€ Gross
