Industrial Data Collector Senter ST308W v.19
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-kolektor-danych-senter-st308w-v.19-produkt-86394.html

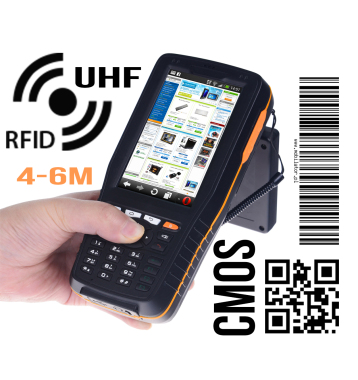

Industrial Data Collector Senter ST308W v.19

senter ST308W uhf rfid 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 2d


Senter ST308W has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP65 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.



Description

senter ST308W tablet przemyslowy 4 cale 8gb rj45

 Processor  Qualcomm Snapdragon 200 MSM8625Q - Quad (4x) 1.2Ghz
 PCB  Qualcomm Adreno 203
 Display  4" (800x480) VGA LCD resistive-capacitive
 RAM  1GB
 ROM  8GB
 Connectors  MicroSD : Mini USB : LAN
 GPS  GPS + A-GPS
 Audio  AudioJack : Speaker : Microphone
 Camera  5Mpx (Auto-Focus + LED Flash)
 Battery  3.7V 6000mAh Li-Ion
 Keyboard  Numeric (+function keys) + On-Screen
 Environment  Android 4.1
 Modules (factory)
 GSM (GPRS/EDGE) WCDMA (HSDPA) : WiFi : Bluetooth  V2.0 : GPS+A-GPS
 Dimensions  173 × 83 × 38mm- 350g
 Resistance  IP65
 Readers (optional)
RFID HF (13.56Mhz) - 5cm 1D - MOTOROLA: SE655 (CCD)

 UHF (860-868Mhz) - 50cm 1D - MOTROLA: SE955 (LASER)

 UHF (860-868Mhz) - 2m 1D/2D - NEWLAND: NLS-EM3070 (CMOS)

 UHF (860-868Mhz) - 4-6m
Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

Select a version for yourself

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".


1D (CCD)
1D (LASER)
1D/2D (CMOS)
HF  (5cm) UHF (50cm)
UHF  (2m) UHF (4-6m) 3G Kamera
v.1 - - - - - - -
v.2 - - - - - -
v.3 - - - - - -
v.4 - - - - - -
v.5 - - - - - -
v.6 - - - - - -
v.7 - - - - - -
v.8 - - - - - -
v.9 - - - - -
v.10 - - - -
v.11 - - - - -
v.12 - - - - -
v.13 - - - - -
v.14 - - - - -
v.15 - - - -
v.16 - - - - -
v.17 - - - - -
v.18 - - - - -
v.19 - - - - -
v.20 - - - -
v.21 - - - -
v.22 - - - -

go top... do góry menu… menu

The collection and processing of data

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

1D 1D / 2D
MOTOROLA: SE655 (CCD)
NEWLAND: NLS-EM3070 (CMOS)
MOTOROLA: SE955 (LASER)

senter ST308W rj45 1d barcode scanner

RFID

RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of  products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.

UHF
860-868Mhz
HF
13.56Mhz
UHF  (EPC C1 GEN2/ ISO 18000-6C) - (50cm) HF (ISO14443A MIFARE | ISO15693) -  (5cm)
UHF (EPC C1 GEN2/ ISO 18000-6C) - (200cm)
UHF (EPC C1 GEN2/ ISO 18000-6C) - (4-6m)

RFID UHF (860-868Mhz)

In the UHF (Ultra High Frequency) band, where RFID tags work according to the principles of the electromagnetic coupling, the most popular technology at the moment is the one based on the ISO 18000-6C protocol, best known as EPC Class 1 Gen 2 or for short Gen 2. The EPC Class 1 Gen 2 standard was proposed by the private organization EPCGlobal and then adopted in 2006 as the ISO 18000-6C standard by the International Standards Organization (ISO).  The EPC Class 1 Gen 2 standard was created to address some issues of previous UHF RFID standards conceived for logistics applications (such as the ISO 18000-6a and the ISO 18000-6b). The new standard was developed specifically to track fluxes of goods between different companies and across all world regions with good read performance in environments with a high density of tags.

  LF HF UHF
 Frequency 124 kHz, 125 kHZ lub 135 kHz 13,56 Mhz 865-868 Mhz
 Reading Range a few centimeters
to 0.5 meters 4-6 meters

senter ST308W rfid uhf hf

go top... do góry menu… menu



Resitance

Applicable standards

Operating -20°C -- +50°C
Storage -40°C -- +60°C
Humidity 5% - 95% RH | non-condensing
Dust IP6x (dust)
Water IPx5 (water)
Drop Multiple drops to concrete 4ft./1.2m the entire operation range

go top... do góry menu… menu

senter ST308W uhf rfid 1d 2d

IP65 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from solid objects greater than 50mm in diameter
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection from water projected from a nozzle


7

Protection against immersion


8


Protection against complete, continuous submersion in water

go top... do góry menu… menu



Modules and Wireless Networks

senter ST308W gprs 3g wcdma hsdpa

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G module used in Senter  adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.

WiFi  802.11b/g/n
GPS  High sensitivity receiver : A-GPS
Bluetooth  Bluetooth  V2.0
GSM/3G  CDMA2000 1X/EVDO oraz WCDMA/GSM
   The ability to make voice calls

go top... do góry menu… menu

Minimalism

senter ST308W 1d barcode scanner lase micro usb lan rj45 bateria

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have ST308W. The device weighs just 350g and its dimensions (173 x 83 x 38mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that ST308W is in a group of devices which enjoy great popularity in the European market in the industrial segment.

 Dimensions 173 × 83 × 38mm
 Weight 350g



Quick change battery

Friendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important.

senter ST308W microusb

go top... do góry menu… menu



more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Durability: IP65
Humidity: 95%
Waterproof: IP65
Weight:
Temperature: Operating temperature: -20°C -- +50°C
Storage temperature: -40°C -- +60°C
Shock: -----
Vibration: -----
Drop: 1.2 meters
Sand and dust: IP65
1D barcode scanner (reader): Newland NLS-EM3070 (CMOS)
2D barcode scanner (reader): Newland NLS-EM3070 (CMOS)
RFID scanner (reader): UHF (860-868Mhz)
EPC C1 GEN2 ISO 18000-6C
Range: 4-6m
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: -----
VESA standard – holders and mounts support: -----
COM port: -----
Dispaly: 4" (800x480) VGA LCD : resistive-capacitive
Brightness: 400nits
Contrast: 800:1
Touch screen: Tak
Graphics card: Qualcomm Adreno 203
Swivel Hinge: -----
VGA out: No
TV Out: -----
TV Tuner: -----
Processor: Qualcomm Snapdragon 200 MSM8625Q - Quad (4x) 1.2Ghz
Chipset: -----
BIOS: -----
Memory: 1GB
Hard Drive: 8GB
Flash Memory:
Battery: 3.7V 6000mAh Li-Ion
Working time on battery: 9-11 hours
HotSwap battery: -----
Fast battery replacement ability: Yes
Size: 173 × 83 × 38mm- 350g
Casing material: high quality plastic and rubber
Fanless casing: Yes
Operating System: Android 4.1
LAN: Yes
WLAN: 802.11 b/g/n
Bluetooth: Bluetooth 2.0
WAN: CDMA2000 1X/EVDO and WCDMA/GSM
GPS: Built-in + A-GPS
Flash Card Reader: microSD (max. 32GB)
CD/DVD: -----
Camera: Yes - 5Mpx (Auto-Focus + LED Flash)
Audio: AudioJack : Built-in Speaker : Microphone
Seciurity: -----
In/Out: micro USB (support OTG), AudioJack, Mirco SD card slot (max.32GB)
Keyboard: Numeric (+ function keys) : On-screen
Additional Navigation Devices : -----
Color: yellow-black
Optional accessories: Hand Strap
Other: Charger : USB Cable


CURRENT PRICE
4472.60 € Net
5501.30€ Gross
