The bar code scanner is a device that allows read with barcodes from boxes or devices. Business accessories MobiScan porduktu guarantee high quality and serve for many years without any loss of quality.
|
|
|||||||||||||||||||||
|
|
DescriptionMobiScan QS-03S is ergonomic and powerful new generation barcode scanner.It design for picking and sorting application ,enable your operator to free hand and improve operational efficiency in your warehouse, distribution center and retail store. You never need setting an item down to check paper work order or picking up handheld scanner. Operator even no need to put heavy pakage to the desktop for scan ,it will save more time and physical strength. Compare with common wired handheld scanner, MobiScan QS-03S wearable scanner can increase 15% -30% productivity ! MobiScan QS-03S intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers and logistics, quality controllers and inspectors of manufacturing processes and all those who need to work cataloging and storing the information read from the barcode . 2D Zabra SE4750 Scanner - MobiScan QS-03S through Bluetooth module (which provides reliable communication) is compatible with mobile devices, data collectors and computers running on different operating systemch (see the text "Communication" - below).
|
Communication |
| The present device has a built-2D barcode reader that connecting via Bluetooth with your device. It provides information such as the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data. |
|
Portable (radio and bluetooth-arid) barcode readers using laser technology are comfortable and easy to use, with wide possibilities to set parameters. Enable automatic operation and manual. Read codes with different contrasts with a distance of several centimeters. The use of wireless communication (Bluetooth or radio) offer a range of up to 10m from the computer. The device uses the HID interface To scanner devices need to use the right software to a Bluetooth port collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver. Supported Bluetooth profiles SPP system. SPP defines how to set up virtual serial ports (RS-232) and connect two devices via Bluetooth. SPP is a serial port profile. It is used in various devices (eg PC, GPS, industrial equipment). Wireless barcode scanner works as a Bluetooth master (supporting SPP - Serial Port Profile). When paired with a computer or mobile device, the bar code can be read using a software virtual serial port (RS232 or COM port). This allows the device one can to both send and receive data via Bluetooth without connecting a serial cable to your computer .
|
|
|

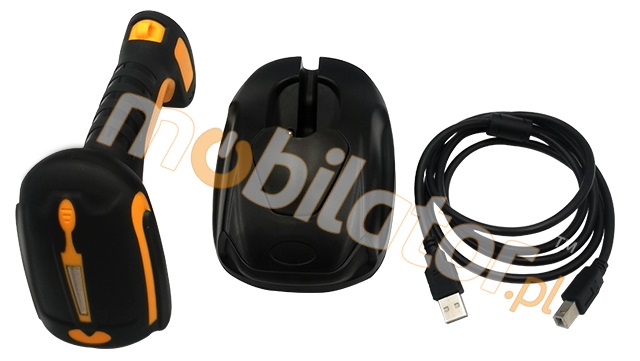

AccessoriesThe MobiScan QS-03S comes standard with battery and Bluetooth 4.0
Application
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Supported Operating Systems: | Android, iOS, Windows XP, Windows 7, Windows 8, Windows 10 |
| Internal memory: | 512KB |
| Operation Voltage: | 5V - 300mA - DC |
| Reading indicator: | Zabra SE4750 2D Scan engine |
| Dimensions: | 180 x 110 x 50 mm |
| Weight: | 460g |
| Battery: | 2000 mAh Li-ion |
| Housing material: | ---- |
| Scan rate: | 100 times/sec |
| Light source: | Laser |
| Resolution: | 640 x 400 |
| Communication distance: | 3 m |
| Readable codes: | 2 of 5 Industrial，QR Code 2 of 5 Matrix，Codabar，Code - 39， Code - 39 Extended (full ASCII)， Code - 93，Code - 128 (A, B, C)， 2 of 5 Interleaved,EAN-8，EAN-13， Matrix 25，MSI， Post - China (4-State Postal Code)， Telepen Code，UPC - A，UPC - E， UPC - E1，Aztec，DataMatrix， MaxiCode，Micro PDF 417，PDF 417 |
| Sensor: | 2D |
| Scan Angle: | 60⁰, 60⁰, 360⁰(Skew,Pitch,Roll) |
| Print Contrast Ratio: | >20% |
| Scan range: | （BASED ON CODE 39） 3.9mil:25mm-112mm; 10mil:31mm-420.5mm; 20mil:43mm-495mm; 30mil:64mm-537mm; 35mil:145mm-604mm |
| Cable Type: | --- |
| Battery Life: | 3 h（continuously working） |
| Communication: | Bluetooth 4.0 r |
| Interface/ Pro le: | HID/ SPP |
| Operating Temperature: | 0°C ~ 50°C |
| Storage Temperature: | -20°C ~ 60°C |
| Relative Humidity: | 5% ~ 90%, non-condensing |
| Resistance IP: | IP 65 |
| Drop test: | Multiple drops 3m |
| Barcodes 1D: | Barcodes 1D: |
| 2 of 5 Chinese: | Yes |
| 2 of 5 Discrete: | Yes |
| 2 of 5 IATA: | No |
| 2 of 5 Industrial: | Yes |
| 2 of 5 Interleaved: | Yes |
| 2 of 5 Matrix: | Yes |
| 2 of 5 Standard: | No |
| BC - 412: | No |
| Bookland EAN: | Yes |
| Codabar: | Yes |
| Codabar - NW7: | Yes |
| Code - 11: | Yes |
| Code - 11(USD-8): | Yes |
| Code - 32: | Tak |
| Code - 39: | Yes |
| Code - 39 Extended (full ASCII): | Yes |
| Code - 39 Trioptic : | Yes |
| Code - 93: | Yes |
| Code - 128 (A, B, C): | Yes |
| EAN-8: | Yes |
| EAN-13: | Yes |
| EAN -128 / UCC-128: | No |
| GS1 DataBar: | Yes |
| Intelligent Mail: | No |
| ISBN: | No |
| ISBT - 128: | No |
| ISSN: | No |
| ITF-6: | No |
| ITF-14: | No |
| KIX code: | Yes |
| Matrix 25: | Yes |
| MSI: | Yes |
| MSI - Plessey: | No |
| Pharmacode - One Track: | No |
| Pharmacode - Two Track: | No |
| Planet: | No |
| Plessey: | No |
| Post - Australian (4-State Postal Code): | No |
| Post - China (4-State Postal Code): | Yes |
| Post - Japanese (4-State Postal Code): | Yes |
| Post - Singapore (4-State Postal Code): | No |
| PostNET: | No |
| Royal Mail (RM-4SCC): | No |
| Telepen Code: | Yes |
| UK/Plessey: | No |
| UPC - A: | Yes |
| UPC - E: | Yes |
| UPC - E1: | Yes |
| Barcodes 2D: | --- |
| Aztec: | Yes |
| Composite code: | No |
| DataMatrix: | Yes |
| MaxiCode: | Yes |
| Micro PDF 417: | Yes |
| Micro QR Code : | Yes |
| PDF 417: | Yes |
| QR Code : | Yes |
| RSS: | No |
| TLC-39: | No |
CURRENT PRICE |
|
| 511.38 € | Net |
| 629.00€ | Gross |
.jpg)

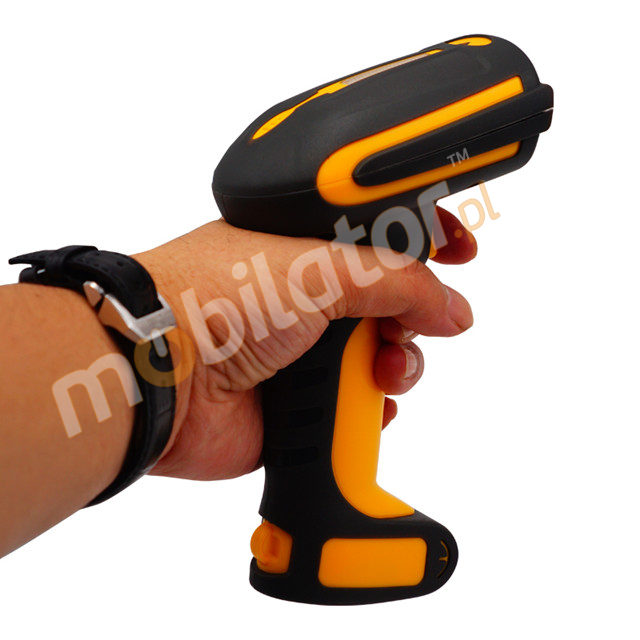

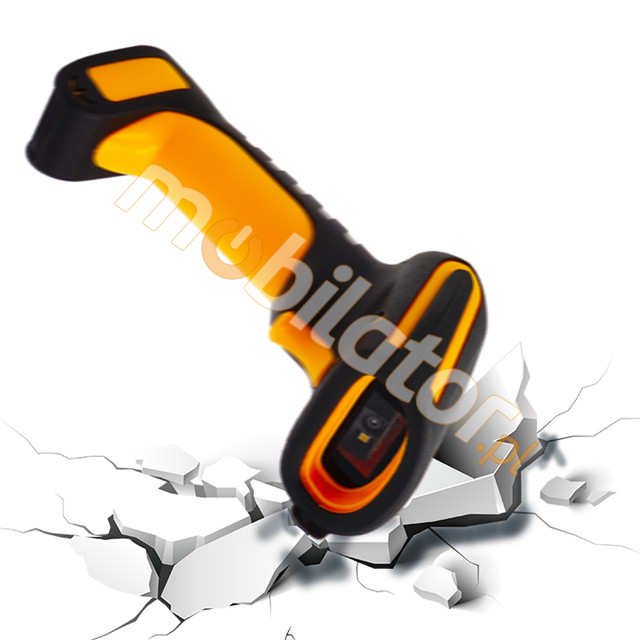

The portable scanner allows the operator to carry packages, products and materials, helping to increase productivity. It is very comfortable to wear throughout the working day, thanks to the high-performance laser scanning engine, you can read even a badly printed bar code. Durable rubber housing makes everyday use reliable even in the toughest conditions.
.jpg)
.png)
.png)
.png)
.jpg)
.jpg){kind=small}
We offer high quality device for reading bar codes that work flawlessly even in the harshest industrial environments..jpg)
