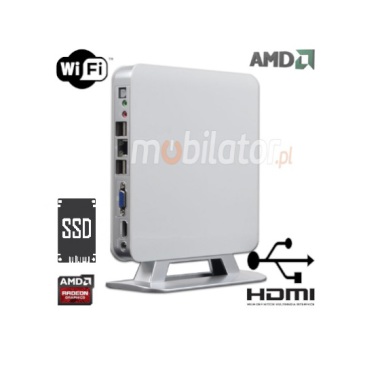

Small Computer NUC MiniPC mBOX Q135 v.1

Computer  MiniPC mBOX Q190X Barebone


Small dimensions computers are at the forefront in environments where dust, dirt and moisture predominate. They are ideal for applications requiring quiet operation. The rugged mini mBOX-Q135 is a device designed for all home, office and other uses requiring continuous operation - 24 hours, 7 days a week.



Small dimensions
The compact housing means that the Mini PC will fit wherever you need it and is easy to carry.
Lightweight design
The computer's weight does not exceed 1.0kg, so it can be conveniently carried in a bag or backpack.



Efficent components
The AMD E350D duaa-core CPU provides improved device performance.
Wireless network
The mini PC can be connected to nearby wireless networks by equipping it with an optional Wi-Fi module.



Quick start
A modern SSD drive will increase the speed of application programs and ensure quiet computer operation.
Cooling
The use of fan cooling in
 the Mini PC ensures quiet
 operation of the device.










go up… do góry menu… menu



SPECIFICATION



Performance
Processor AMD E350D (2x 1.60 GHz)
Graphics card AMD Radeon HD 6310
Operating system Windows XP/7/8/10 | Linux
RAM 2GB   DDR3L
Drive 32GB SSD
Interfaces
Connectivity

Wi-Fi

LAN - 1x Realetk RTL8111E

Front panel 2x USB 2.0  | 1x SD Slot | Power button
Rear panel

Power connector | 1x Gigabit LAN

1x HDMI | 1x VGA | 4x USB 2.0

1x Audio | 1x Mic

Other
Available colors Biały
Dimensions 180mm x 180mm x 30mm
Weight 0.680kg




EFFICIENT PROCESSOR

Mini-computer mBOX-Q135 uses an efficient and energy-saving AMD E350D processor. Inside it there are four cooperating cores enabling more efficient processing of many tasks at the same time. The shared cache memory in which the multilevel hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory.



INTERFACES



Computer  MiniPC mBOX Q135 Barebone



DIMENSIONS



Computer  MiniPC mBOX Q135 Barebone



Detailed device specification is available in the "Technical data" tab.

go up do góry menu… menu



RESISTANCE



Temperatures

mBOX-Q135 is designed for continuous operation in both very low and high temperatures ranging from 0° C to 50 ° C. If the device is switched off, it can already handle temperatures in the range of -20 ° C to 80 ° C.


Computer  MiniPC mBOX Q135 Barebone



Work temp. 0°C — 50°C
Storage temp. -20°C — 80°C
Humidity 10% — 95%


Mechanical damage

MiniPC mBOX-Q135 combined with the non-disk SSD make this computer very resistant to various types of mechanical injuries.


go up do góry menu… menu



CONNECTION



Wireless network (OPTIONAL)

The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. Industrial mini-PC mBOX-Q135 has been equipped the standard of  - 802.11n, which allows transfer of files at a dizzying speed of up to 150 Mb / s.





WIRED LAN NETWORK

The MiniPC mBOX-Q135 has built-in one Realtek RTL8111E network adapters that can work in a fast Gigabit Ethernet network.




Computer  MiniPC mBOX Q135 Barebone



go up do góry menu… menu



APPLICATIONS



home and office

Thanks to its small size, the MiniPC can work at home. It will fit virtually everywhere, so you can mount them. It will already work as a device for storing and retrieving information. COM ports hosting the installation of multiple devices in the office and its management. Its durability of the casing is in difficult conditions prevailing in such frames. Robust construction ensures long-lasting work, even in terms of safety and protection against dirt.


More pictures of the device available in the "Gallery" tab.

go up do góry menu… menu



VERSIONS



The  mini-computer mBOX-Q135 is offered in several versions to suit different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.

[tab_wersja_id_112]


Others:
Chipset: AMD A50M (Hudson M1)
CPU Support: AMD E350D
Installed CPU: AMD E350D (2x1.60 GHz)
Memory Support: 2x DDR3L SO-DIMM (max. 8GB)
Installed Memory: 2 GB
Graphic Card: AMD Radeon HD6310
Storage (HDD) Support: SSD / HDD
Installed Storage (HDD): 32 SSD GB
CD/DVD Drive: -----
LAN: 1xRealtek RTL8111E Gigabit LAN
Wireless LAN card: Yes
Bluetooth: No
3G: No
4G LTE:
TV Tuner: -----
Watch Dog Timer: Yes
Front Panel (ports): 2x USB 2.0
1x SD Slot
Power button
Rear Panel (ports): Power connector DC12V
1x Gigabit LAN 1x HDMI | 1x VGA | 4x USB 2.0 1x Audio | 1x Mic
Power: 12V5A
Supported OS: Windows XP/7/8/10 | Linux
Installed OS: None
Dimensions: 180mm x 180mm x 30mm
Weight: 680g
Expansion:
Fanless: None
Humidity: 10%~90%
Temp: 0°C~50°C
IP Norm: No
Storage temperature: -20°C~80°C


CURRENT PRICE
650.49 € Net
800.10€ Gross
